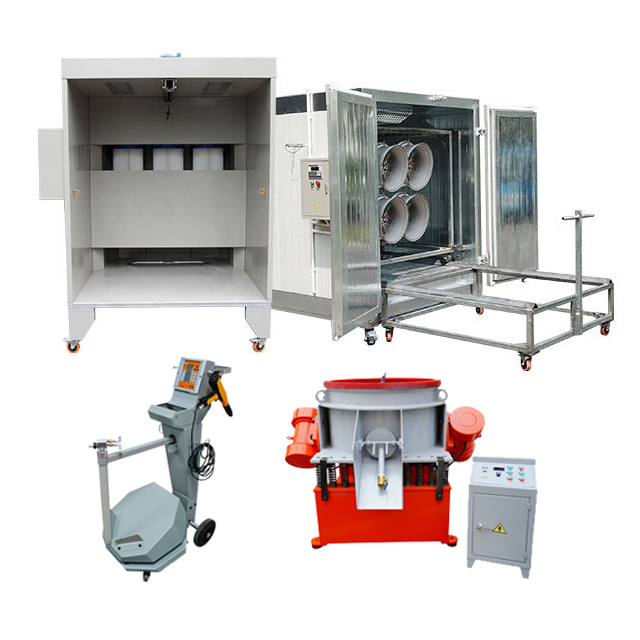

Wheel Polishing & Powder Coating System

Including vibratory wheel polishing machine for pretreatment, electrostatic spray gun, spray booth and curing oven for powder coating finishing.
  • COLO-Package

  • COLO

Wheel Polishing & Powder Coating System

This Wheel Polishing & Powder Coating System including alloy wheel vibratory polishing machine a and powder coating system, polishing machine is ideal for the surface finishing of vehicle wheels, such as motorcycle wheels, car wheels as well as huge truck wheels. Powder coating system can provide coloring and curing.

Vibratory Wheel Polishing Machine

This vibratory polishing machine achieves rough grinding to precision polishing for wheels, not only removes dirts,rusts, scratches, but also creates smooth and shiny surfaces.

Configurations and Features

1. High performance vibratory motors ensures finishing efficiency, adjustable frequency meets different polishing requirememts

2. Wheels can be mechanically fixted on bottom of the vibratory bowl, which allows a thourough polish with quantities of components and media added.

3. An electric control cabinet is easy to control the whole process

4. Designed with a discharging chute is that could quickly and fully empty medias and compounds.

Vibratory Wheel Polishing Machine

Vibratory Polishing Machine Specifications

Model KAFAN-23

Wheel processing range

23 inches -12 inches
Voltage 220V/380V, can be made as request
Frequency 50HZ

Rated power


Vibratory times 1440r/min
Capacity 200L

Inner barrel size

Φ690*H540 mm

Inner barrel lining material

PU glue

PU glue thickness

Amplitude (mm) 3-6mm



COLO-191S Powder Coating Gun

COLO-191S Professional powder coating gun is characterized by its digital valve control technology, which offers precise powder feed and atomizing adjusting, a consistent and gentle powder output leads to unifrom finish, giving optimal powder transfer efficiency and high quality coated surfaces.

This machine has 3 pre-set coating modes for flat parts, corners and re-coat jobs, special for powder coating alloy wheels and more facilitate beginners handle different workparts, for advanced applications, it allows experienced users create and store 20 personalized programs for each parts.

COLO-191S Powder Coating Gun

COLO-1517 Filter Powder Coating Booth

Cartridge filter powder coating booth incorporates a high-efficient filter cleaning system, interval controlled by pulse-jet device. It is a universal and economic powder recovery system. Innovative industrial design of powder coating booth maximizes the efficiency.

1. Comes with 3 pcs of cartridge filters and 4kw extraction fan motor powerfully capture oversprayed powder.

2. The filter is quick-release type, simple and fast operation during color change.

3. A built-in removable powder hopper for collector oversprayed powders.

4. The PLC panel controlls the fan working and filter cleaning.

5. Powder coated steel boady, durable and sturdy.

COLO-1517 Filter Powder Coating Booth

Powder Coating Booth Specifications

Model COLO-1517
Operating dimensions 1500width*1500depth*1700Height(mm)
Weight      480kg
Power Supply     Electric, 2.2kw
Voltage 380V220V, 50-60Hz (custom voltage as local)
Filters spec Polyester, 3PCS, Size(Dia325*H900mm)
Air consumption  4000m3/h
Fan motor Power  2.2kw

COLO-1864 Batch Powder Coating Oven

For curing the workpiece like wheels which has been sprayed during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

1. Electric heated powder coating oven features environmental friendly and cost-effective.

2. 100mm rockwool interlayer with galanized wall ensures warm preservation.

3. Air circulation fan provides uniform-temperature chamber, avoids color difference.

4. PLC controller for easy setting time and temperature.

5. Two sets of trolley helps a flexible and clean movement of workparts.


Powder Coating Oven Specifications

Model COLO-1864
Operating Dimension Width1600*Depth1400*Height1800 mm
Overall Dimension Width1900*Depth2200*Height1700 mm
Power Supply Electric, 18kw
Voltage/Frequency 110V/220V 50?60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 0.75kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months
