1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.

2. There are 3 pre-set application modes, also could store 20 personalized application programs.

3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.

4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.

Powerful Controller

Powder Coating Gun

Powder Coating Pump

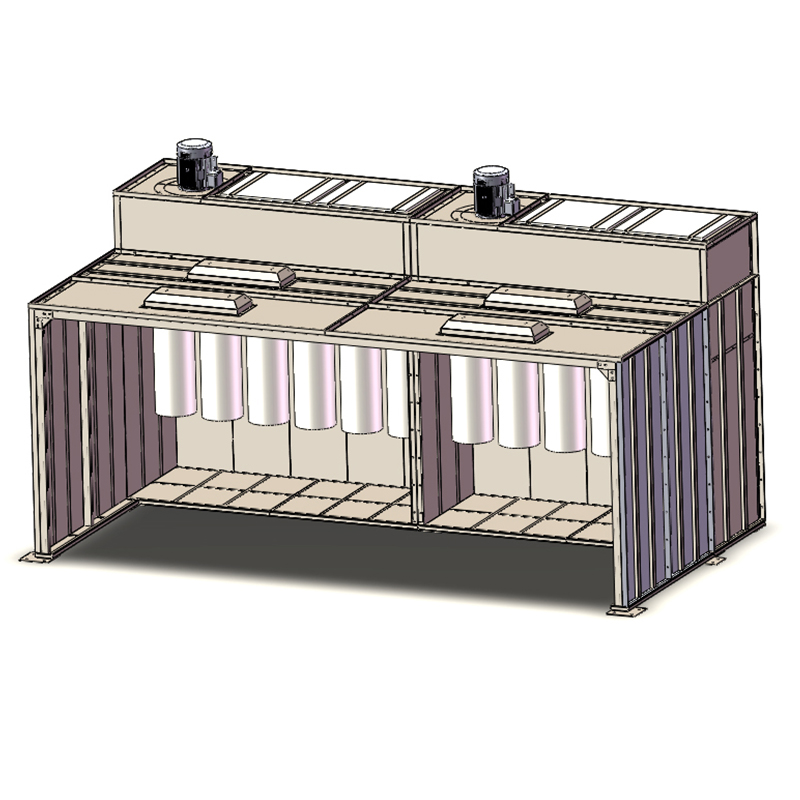

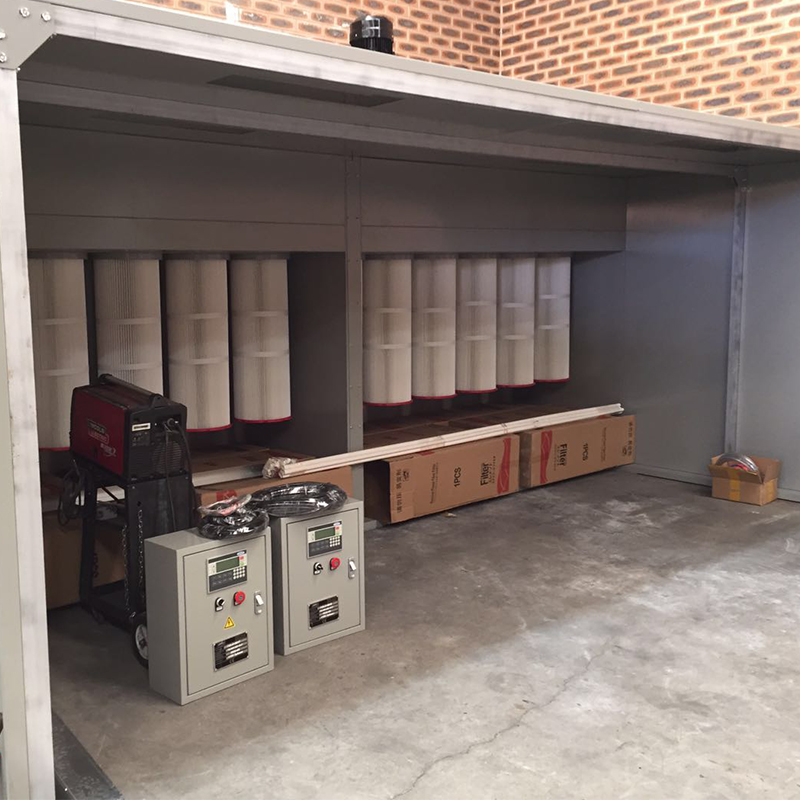

Walk-in Powder Coating Spray Booth

1. Objects are transported via overhead conveyor system, saves both time and labor.

2. Built-in 12 pcs filters integrated in the booth wall for powder capture and recovery.

3. Engineered with pulse-jetting device to clean filters automatically and extend service life, PLC control the fan working and precisely set the interval of filter cleaning.

4. Big enough inner space allows to powder coating large and batch objects.

5.When you close the spray booth door when sprayingthis walk-in powder spray booth can prevent powder from scattering to protect the environment.

PLC Control Unit

Cartridge filters

Fan Motor

Specifications of Powder Coating Booth

Inner Size	L5.5m x W2.8m x H3.1 m
Opening Size	W2.8m x H2.9 m
Material	SPCC/t=1.5mm, with door
Bottom Frame	8# square tube
Booth Inner Frame	8# square tube
Recovery System	Filter Cartridge (12pcs)
Fan Motor	3kw, 4sets
Air Flow	4050m3/h

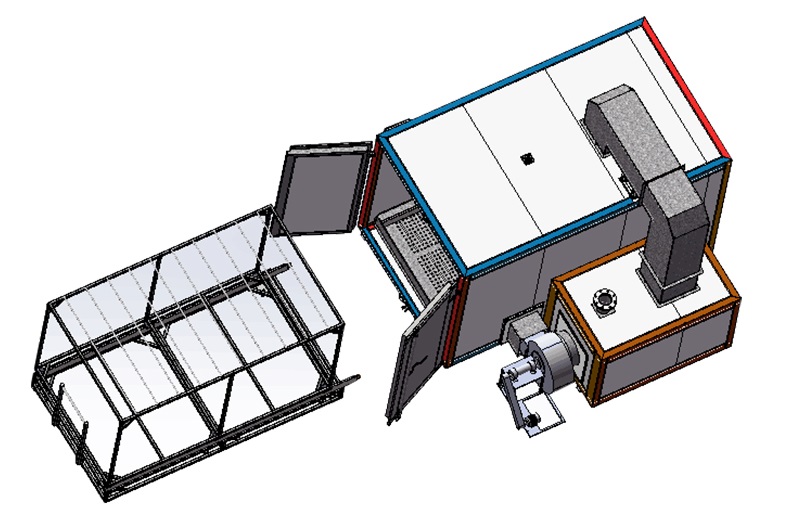

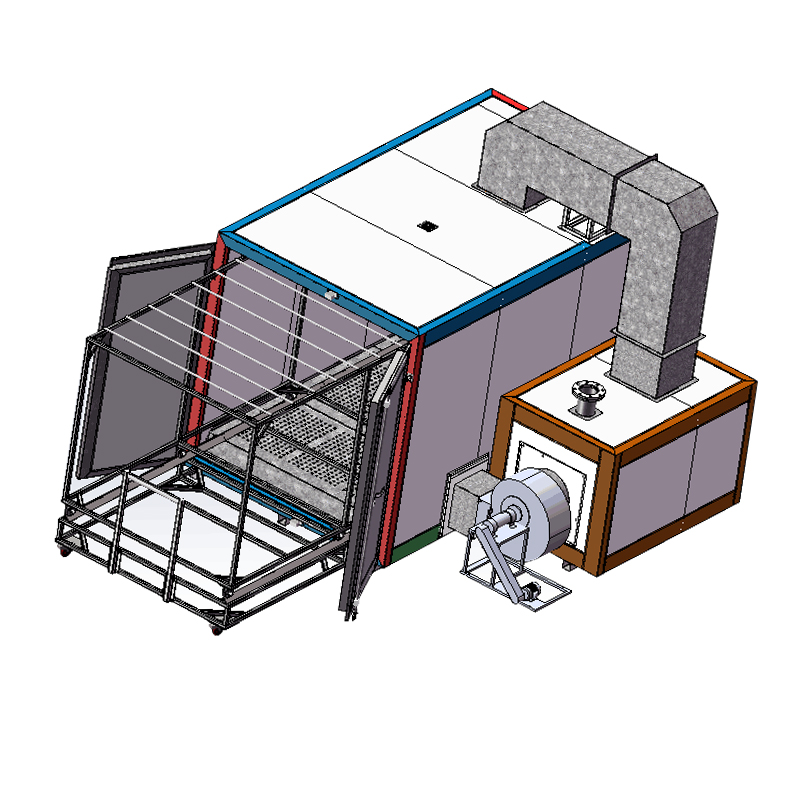

COLO Powder Coating Curing Oven with Trolley System

1. Built with trolley for heavy workparts more easily.

2. Riello burners that imported from Italy makes heating faster to a required temperature.

3. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.

4. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.

5. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.

PLC Controller

Rockwool Board

Riello Burner
