This powder coating plant suits for batch powder coating business.
COLO-191S Powder Coating Machine, different sized powder hoppers are optional.
COLO-3222 Powder Spray Booth: W2300 * H1850 * D1500 mm
COLO-1732 Powder Curing Oven: W1650 * H1700 * D3200 mm
This powder coating plant suits for small scale powder coating productions, includes COLO-191S powder spray gun, COLO-3222 powder coating booth and COLO-1732 powder curing oven.
COLO-191S powder coating machine is our main product, characterized with the latest digital valve control. Giving a more uniform finishing film while saving powder cost.
1) 0-100kv Voltage adjustable, powerful and durable.
2) Digital valve control technology gives consistent film thickness.
3) Three presets programs for flat coating, corner coating and recoating.
4) Allows to store 20 personalized application coating programs.
5) Equipped with lightweight COLO-08 manual powder spray gun.
6) 10 lbs fluidized powder hopper is made of stainless steel material.

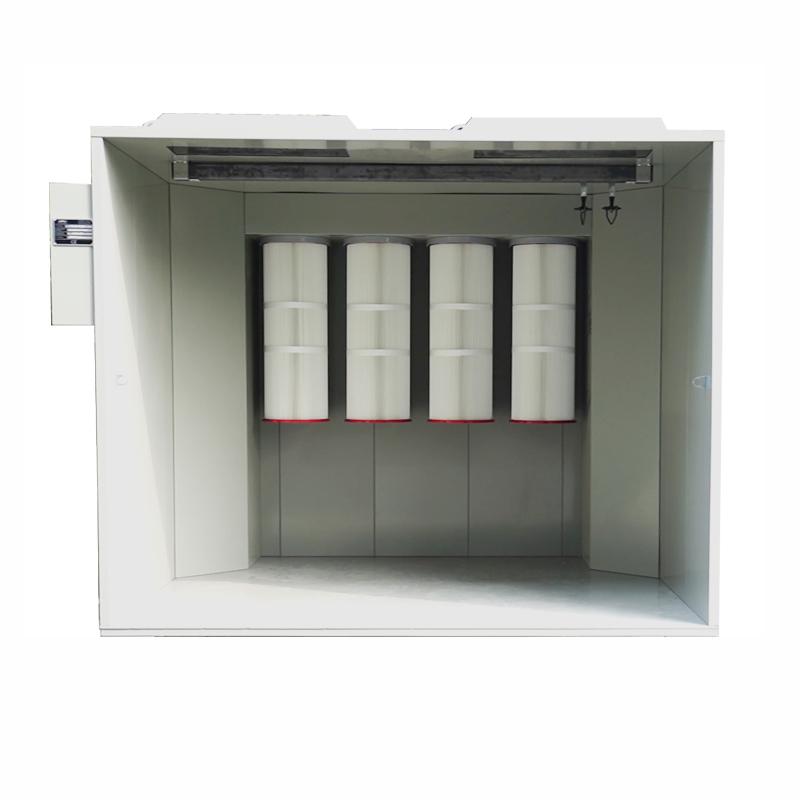

This powder coating booth takes full use of the booth size built with 4 pcs cartridge filters, performs high efficient powder recycling. Filters cleaning is controlled by pulse soleniod valve, ensures long life of the material. Booth fan is installed at the top to save space. Made of powder coated steel plate, it is durable and sturdy enough.
Powder Coating Booth Specifications
Operator dimensions W2300*H1850*D1500 mm
Overall dimensions W2504*H2169*D2002 mm
Power supply Electric
Nominal power 4kW
Voltage 380V (customized as local)
Filter material: Polyester
Filters Quantity: 4 pcs
Filters hang type: easy for change
Filter cleaning system Pneumatic
COLO High temperature powder coating oven is construred with 100mm thick rockwool board to realize heat insulation, a circulation fan ensures hot air uniformly distributed in the chamber. Thus there will be a durable and consistent quality powder coating finish on the surface. Electric heated oven features environmental friendly and easy maintenance.
Powder Coating Oven Specifications
Operating Dimension: W1650*H1700*D3200 mm
Overall Dimension: W1950*H2100*D3500 mm
Power Supply: Electric, 48kw
Voltage/Frequency: 220V 50/60Hz (customized as local)
Warm-up Time: 15-30min (180°C)
Temperature Stability: <± 3-5°C
Temperature Max.: 250°C
Motor Power: 1.5 kw
Circulation/Air Flow: Vertical, Varaible through holes on the walls
