Almirah Powder Coating Machine for Sale

This powder coating plant suits for batch powder coating business. COLO-191S Powder Coating Machine, different sized powder hoppers are optional.
COLO-3222 Powder Spray Booth: W2300 * H1850 * D1500 mm
COLO-1732 Powder Curing Oven: W1650 * H1700 * D3200 mm
Availability:
Quantity:
Inquire Add to Basket

  • COLO-Package

  • COLO

Almirah Powder Coating Machine for Sale

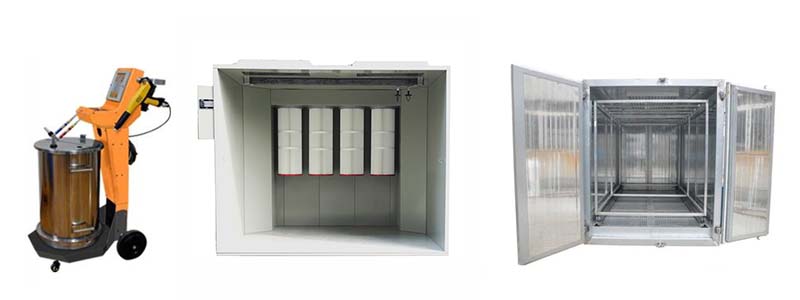

This almirah powder coating machine suits for small scale powder coating productions, includes COLO-191S powder spray gun, COLO-3222 powder coating booth and COLO-1732 powder curing oven.

Almirah Powder Coating Machine for Sale

COLO-191S Powder Coating Machine

COLO-191S powder coating machine is our main product, characterized with the latest digital valve control. Giving a more uniform finishing film while saving powder cost.


191S powder coating gun

Powder Coating Machine Configuration & Features


1) 0-100kv Voltage adjustable, powerful and durable.

2) Digital valve control technology gives consistent film thickness.

3) Three presets programs for flat coating, corner coating and recoating.

4) Allows to store 20 personalized application coating programs.

5) Equipped with lightweight COLO-08 manual powder spray gun.

6) 60 lbs fluidized powder hopper or box feed type for choice.


Powder Spray Booth

COLO-3222 Powder Coating Spray Booth


This powder coating booth takes full use of the booth size built with 4 pcs cartridge filters, performs high efficient powder recycling. Filters cleaning is controlled by pulse soleniod valve, ensures long life of the material. Booth fan is installed at the top to save space. Made of powder coated steel plate, it is durable and sturdy enough.






Powder Coating Booth Specifications


Model COLO-S-3222
Operating Dimensions Width2300 * Depth1500 * Heght1850mm
Overall dimensions Width2300 * Depth2168 * Heght2000 mm
Weight
 1000kg
Power Supply
 220V/380V, 3Phase, 50-60HZ
Fan Power
 3.5kw
Filter Count
 4 pcs, Quick-release Type
Filter Material
 Polyester
Filter Cleaning
 Pneumatic


powder batch oven

COLO-1732 Powder Coating Curing Oven


COLO High temperature powder coating oven is construred with 100mm thick rockwool board to realize heat insulation, a circulation fan ensures hot air uniformly distributed in the chamber. Thus there will be a durable and consistent quality powder coating finish on the surface. Electric heated oven features environmental friendly and easy maintenance.



Powder Coating Oven Specifications


Model COLO-1732
Worksize dimensions Width1650 x Height1700 x Depth3200 mm
Overall dimensions Width1950 x Height2100 x Depth3600 mm
Power supply Electric 30kw
Voltage 380V/220v
Frequency 50-60hz
Warm-up time 15-30 min. (180° C)
Temperature stability < ± 3-5°C
Temperature max 250° C
Ventilation performance 1131-2565m3/h
Motor power 1.5kw
Circulation/ Air flow Vertical Variable through holes on the walls
