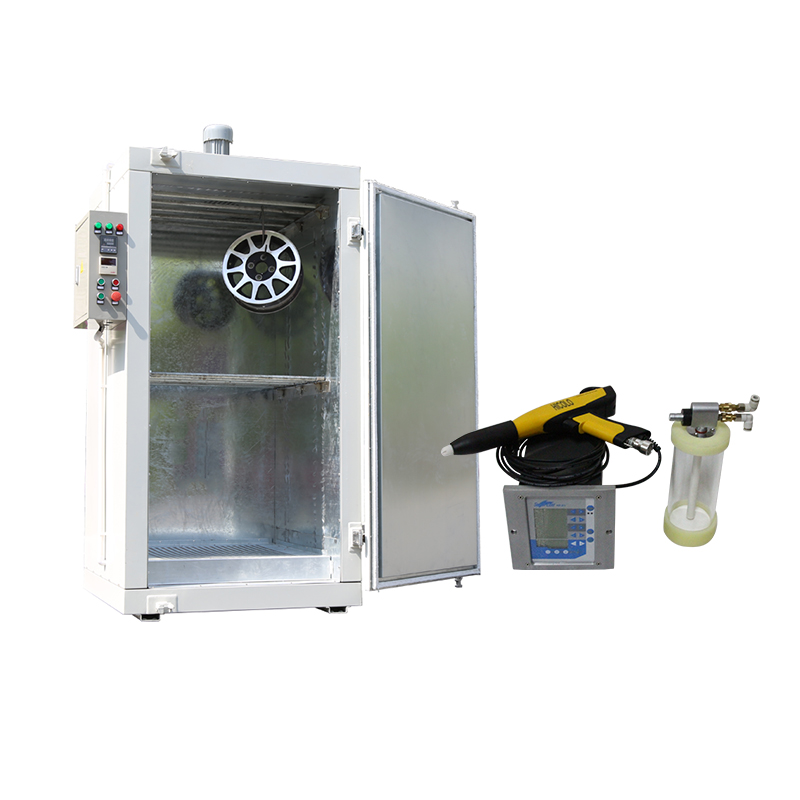

This powder coating kit with oven supports small scale industrial application or lab testing, gives an easy and quick start of basic powder coating jobs. It is ideal for wheel refurnishment, and other small objects finishing by using less cost and labor.
KF-X1 series Powder Coating System with 2 pounds of fluidizing powder keg supports mini scale continuous production, features space-saving and easy to carry.
The digital-valve-controlled system offers precise and flexible regulation of all processing parameters greatly improves application quality comparing with traditional machines.

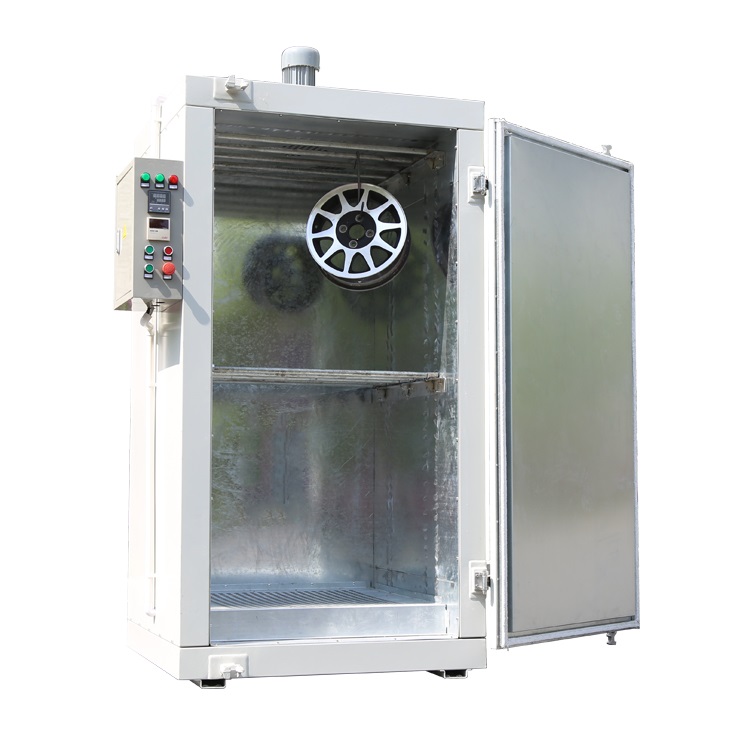

COLO-1688 Powder Curing Oven
COLO-1688 Space-saving powder coating oven is specially designed for batch curing metal parts, such as alloy wheels bike or motorcycle accessories, etc.
Use electricity to create energy, the small curing oven provides uniform hot air distribution by circulation fan resulting in quality cured finishes and optimum cure cycles which reduces rework, saving you time.
COLO-1688 Wheel Powder Coating Oven Specifications
|Worksize dimension ||Width1000 *Height1600 * Depth845mm |
|Power supply ||Electric/ 6kw（1.5kw Heating Tube x 4pcs） |
|Voltage/Frequency ||110V/220v(50-60hz) |
|Warm-up time ||15-30 min. (180° C) |
|Temperature stability ||< ± 3-5°C |
|Temperature ||Max. 250° C |
|Ventilation performance ||805-1677m3/h |
|Fan power ||0.55kw |
|Circulation/ Air flow ||Vertical, Variable through holes on the walls |
