Sandblasting and Powder Coating Machine Package

Includes sandblasting cabinet, electrostatic powder coating gun, powder spray booth and powder curing oven, supports of small to medium sized workparts, such as alloy wheels, bike and motorcycle parts, car parts, etc

This package provides the whole processing solution from pretreatment to powder curing, offering quality and durable finish which requires easiest operation and lower cost.

Quantity:
  • COLO

Sandblasting and Powder Coating Machine Package

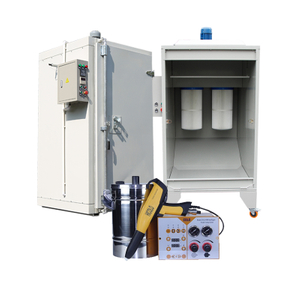

This sandblasting and powder coating machine package is a complete powder coating system, includes CL-1212 water sandblasting cabinet for pretreatment, COLO-191S powder coating gun, COLO-1517 powder spray booth and COLO-1864 powder curing oven for powder coating and curing workpiece, provides long-lasting and durable finish film for various kinds of products.


sandblasting and powdercoating equipment


CL-1212 Sandblasting Cabinet

1


Sandblasting is the initial choice for powder coating pretreatment of small or medium workparts. Our sandblast cabinet features easy operated and budget-saving, but effective to remove rust, oil, old coatings, dirts from surfaces.

1. Cabinet body is made of 3mm durable steel plate with coated surface, ensure longer lifespan.

2. Can be optionally designed with turntable and cart for heavy or irregular products, such as alloy wheels, casting molds, etc.

3. An independent filter cartridge dust device effectively remove dust from chamber, ensure only dustfree air vented.

4. Blasting gun can be controlled by foot switch to increase safety, the nozze is boron carbide type, which is the most durable material in the market.



Sandblasting Cabinet Specifications & Configurations

Outside Size L1430 * W1300 * H1850 mm
Working Chamber Size L1200 * W1200 * H800 mm
Power Supply
110V/220 Customized
Motor 0.75 kw
Air Pressure

5-8 bar(kg/cm2)

Air Flow
Flow 0.5-1.1 m3/min
Blasting Gun
1 piece with boron carbide nozzle
Air Blowing Gun
1 piece
Blasting Gloves
1 piece of rubber gloves
Turntable
Diameter:800mm, optional
Cart
optional



COLO-191S Powder Coating Gun Powder Coating Machine


COLO-191S electrostatic powder coating gun is box feed type, which is suitable for multi colors application, supports to change color fast.


This professional model applies digital valve controlled technology, which provides precise regulation of powder feed and atomizing air, as well as flexible adjusting of kv and micro amperage.


Thus From flat work to profile or machined parts to metallic's and textured powders, the COLO-191S can handle any job with ease and perfection.


The controller also provides 3 pre-set coating modes for flat parts, corners and re-coat jobs, facilitate to switch working mode for requirements during working process. Also allows to create and store 20 personalized programs for powder coating different workparts.


The powerful spray gun uses100kv built-in cascade, which maximizes the transfer efficiency, results in exellent quality at the first pass and saves powders ideally. Program selection and powder flow changes are fast and easy thanks to the advanced back cover PCB. Our ergonomic spray gun is light weight to reduce efforts during long time work.



powder coating booth

COLO-1517 Powder Coating Spray Booth


Powder coating spray booth incorporates high-precision filters and a highly efficient pulse-jet filter cleaning system. It is a practical and economic powder recovery system.

1. Built with high-precision filters and powerful extraction fan to capture oversprayed powder precisely.

2. Quick-release type filters are conveniently for simple and fast operation during color change.

3. Removable powder collector beneath the booth is used for collecting clean oversprayed powders.

4. Fan working, filters cleaning and other required parameters could be controlled on the PLC panel.


Powder Coating Booth Specifications

Model
COLO-1517
Operating Dimension Width1500 * Depth1000 * Height1700mm
Overall Diamension
Width1580 * Depth2000 * Height2150mm
Weight 480kg
Power Supply Electric,
Voltage 380V220V, 50-60Hz (custom voltage as local)
Filters spec Polyester, 3pcs, Size: Dia325*H900 mm
Air consumption 4000m3/h
Fan motor Power 2.2kw



powder coating oven

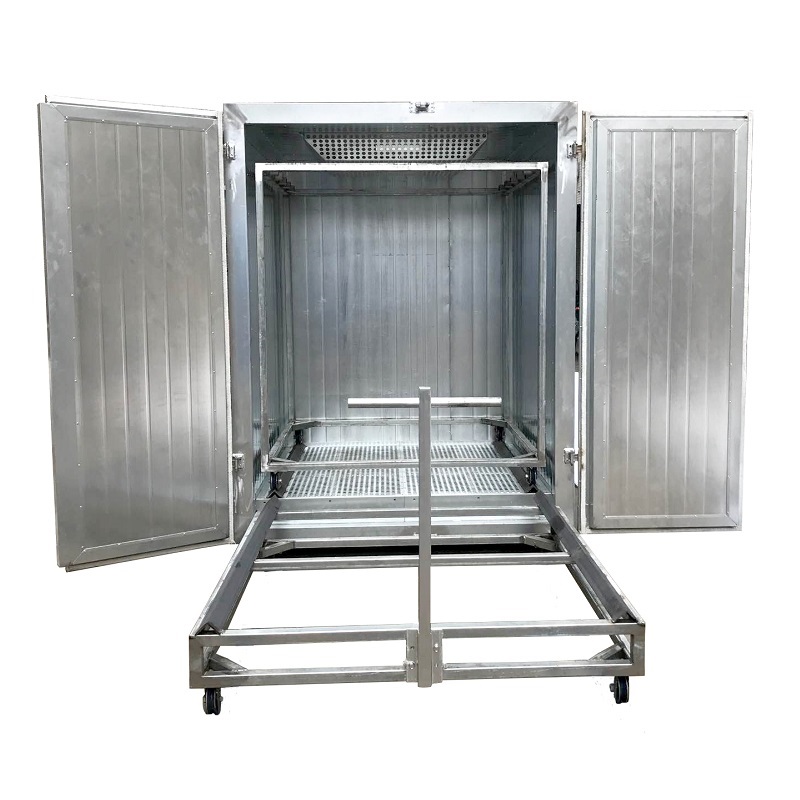

COLO-1864 Powder Coating Curing Oven


Our design takes full use of the oven chamber, whihe a combination of frame and trolley allows a batch of workparts get cured that increases production ability and finish quality.

1. Electric heated powder coating oven features environmental friendly and cost-effective.

2. 100mm rockwool interlayer with galanized wall ensures warm preservation.

3. Air circulation fan provides uniform-temperature chamber, avoids color difference

4. PLC controller offers precise heating process, for easy setting time and temperature.



Powder Coating Oven Specifications

Model
COLO=1864
Operating Dimension Width1600 * Depth1400 * Height1800 mm
Overall Dimension Width1900 * Depth2200 * Height1700 mm
Power Supply Electric, 18kw
Voltage/Frequency 110V/220V 50-60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 0.75kw
Circulation/Air Flow Vertical, Varaible through holes on the walls
Warranty 12 months
