Lab Testing Powder Coating Equipment

Convenient to start a powder coating operation, suitable for lab powder coating, powder sample testing, and other small parts powder coating.

Quantity:
  • COLO

Lab Testing Powder Coating Equipment

This lab testing powder coating equipment is a package including powder spray gun, powder coating booth and curing oven, ideal for small scale powder coating job, specially lab powder coating, powder sample testing, or small parts' powder coating.


COLO-191ST-08C Powder Coating Gun

COLO-191S series is designed by COLO cutting-edge technology, which is able to balance the maximum spray capability and the smoothest finishing. The fluidizing powder cup makes powder uniform and ensures a smooth and consistant powder coating effect.

191s



Powder Coating Gun Features

1. Adjustable 0-100kv voltage, powerful and long lasting use.

2. Digital valve controller allows to set voltage, current and volume of powder feed precisely.

3. Comparing with common powder coating gun, this can save 20% powder in productions.

4. Intelligent one-touch operational buttons for beginners to coat flat parts, deep corners and recoating jobs.

5. Allows users to create and store 20 programs for different powder coating jobs.




COLO-S-04548-T Lab Powder Coating Booth

This lab powder coating booth with the design that filter and powerful fan is installed in the bottom of booth, saving-space structure make this booth more economical. Booth body is made of powder coated steel board, sturdy and durable, which has a long lifespan.

670x670


Powder Coating Booth Specifications

Model: COLO-S-04548-T
Operator dimensions    Width400*Depth480*Heght500 mm
Overall dimensions    Width535*Depth560*Heght950 mm
Power supply    Electric
Nominal power    50W
Voltage    220V/380V
Frequency    50-60Hz
Filter material:    Polyester
Filters Quantity:   1
Filters hang type:    easy for change
Filter cleaning system    Pneumatic

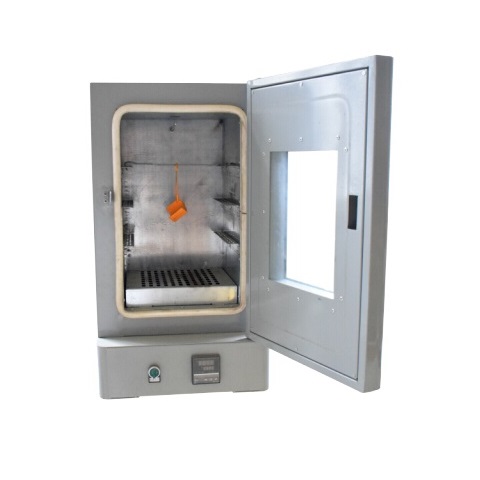

COLO-4355-T Lab Powder Coating Oven

This oven is a mini type powder coating oven for small batch and testing purposes. Compact structure occupies a little space features very practical. Designed with a high-precision controller to set accurate temperature and time, and a panel that displays current value, gives a superior curing effect. This oven has a built-in automatically interrupt system, if oven is over-heated, it will automatic cut off power immediately to ensure users' safety.

lab powder coating oven (1)



Powder Coating Oven Specifications

Model: COLO-4355-T

Operating Dimension: Width450*Height500*Depth350mm

Overall Dimension: Width500*Height710*Depth500mm

Power Supply: Electric, 3kw

Voltage/Frequency: 110V/220V 50/60Hz

Warm-up Time: 10-15min (180°C)

Temperature Stability: <± 1°C

Temperature Max.: 250°C
