This powder coating machine system with oven supports small scale industrial application or lab testing, gives an easy and quick start of basic powder coating jobs. It is ideal for wheel refurnishment, and other small objects finishing by using less cost and labor.
KF-X1 series Powder Coating System with 2 pounds of fluidizing powder keg supports mini scale continuous production, features space-saving and easy to carry.
The digital-valve-controlled system offers precise and flexible regulation of all processing parameters greatly improves application quality comparing with traditional machines.

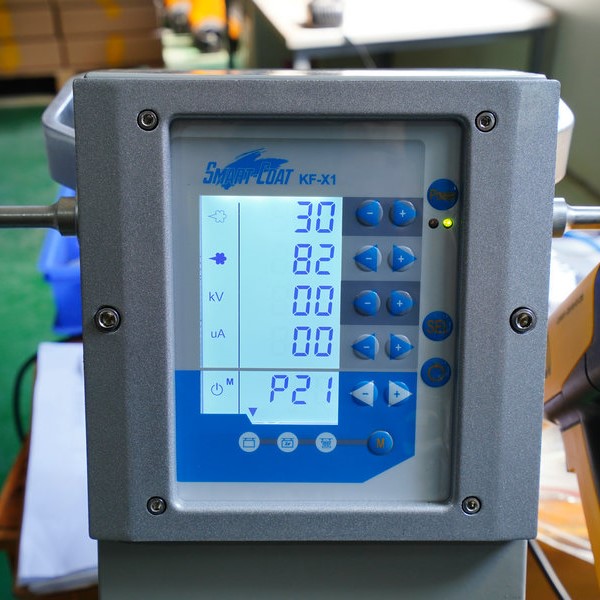

KF-X1 Intelligent Controller
1. The digital valve control(DVC) technology offers precise adjustment of all processing parameters, extraordinary for repeatable regulations of the powder flow and dosing air.
2. One-touch buttons and the easy-to-use interface makes this machine powerful for everyone.
3. There are 3 pre-set application programs for processing flat parts, profiles and recoating jobs, this function is simple for beginners to use.
4. Additionally, 20 individual coating programmed can be stored and retrieved at any time. This achieves repeatable and outstanding coating results.
Powder Spray Gun
- Built-in 100kv cascade maximizes the electrostatic charging, offers highest transfer efficiency.
- With handy functions of changing powder flow and moving between coating modes just pressing the "P" button at the rear cover.
- Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.
Powder Hopper
- Size: D10*H20 cm, Capacity: 2 lbs
- Fluidization of powder is main to break up agglomerations and remove absorbed moisture, keeps powder with a high degree of uniformity and consistency.
- Avoids overflow, and hardly get contaminated as it is not exposed outside, ideal for clean powder coating.
COLO-1688 Powder Curing Oven
COLO-1688 Space-saving powder coating oven is specially designed for batch curing metal parts, such as alloy wheels bike or motorcycle accessories, etc.
Use electricity to create energy, the small curing oven provides uniform hot air distribution by circulation fan resulting in quality cured finishes and optimum cure cycles which reduces rework, saving you time.

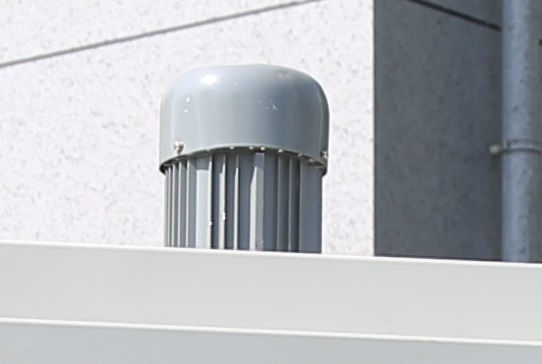

Circulation Fan
Forced air circulation by 0.55kw fan, ensures uniform temperature in chamber with a minimal temperature difference, in order to make parts cure with a quality finish with even gloss and consistent color.

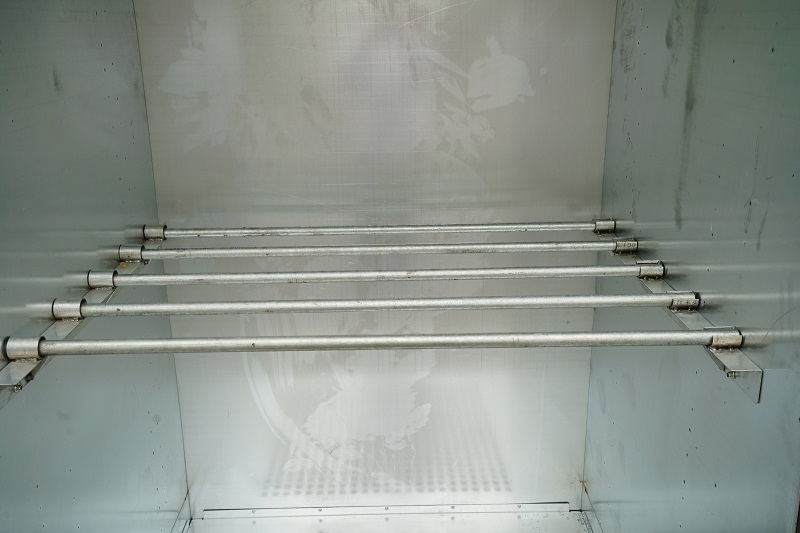

Built-in Shelves
Built-in shelves are designed for hanging objetcs, convenient for spraying heavy and bulky parts, which is a labor-saving device.

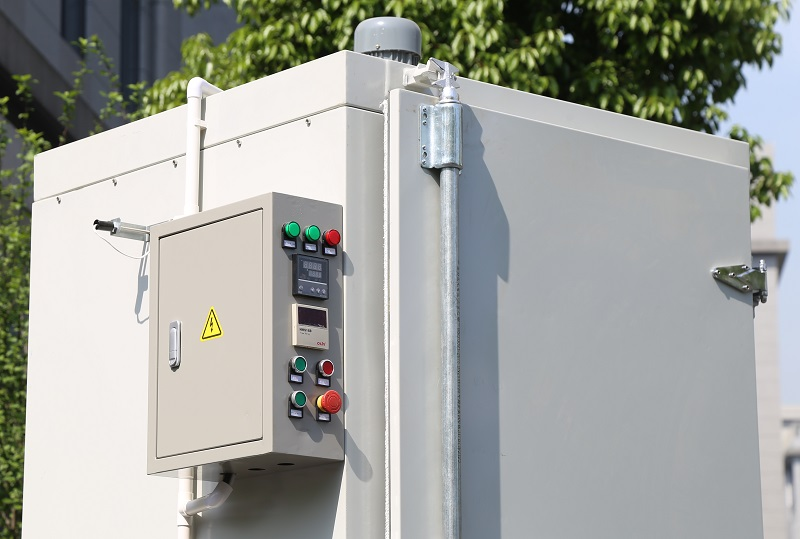

Control Panel
The control panel offers all functions needed. Support for setting precise time and temperature you required to get an ideal powder coating curing effect.
COLO-1688 Wheel Powder Coating Oven Specifications
| Worksize dimension | Width1000 *Height1600 * Depth845mm
|
Power supply
| Electric/ 6kw（1.5kw Heating Tube x 4pcs） |
Voltage/Frequency
| 110V/220v(50-60hz) |
Warm-up time
| 15-30 min. (180° C) |
Temperature stability
| < ± 3-5°C |
| Temperature | Max. 250° C |
Ventilation performance
| 805-1677m3/h |
| Fan power | 0.55kw |
Circulation/ Air flow
| Vertical, Variable through holes on the walls |
