Complete Powder Coating Setup High Efficiency Powder Painting System for Small Workshop

Engineered for restricted footprints, this streamlined manual powder coating system integrates a continuous top track to maximize productivity and ensure consistent, high-quality finishes. The ideal solution for small to medium batch operations delivers professional-grade coating performance while optimizing floor space. Boost output and elevate surface finishing with this reliable, space-saving setup.

Features of COLO-191S Powder Coating Spray Gun

1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.

2. There are 3 pre-set application modes, also could store 20 personalized application programs.

3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.

4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.

5. Powder coating pump applying more powder to the part with using less compressed air, realizing powder savings.

6.The pump allows to spray big volume of powders to meet special demands and achieve higher first-pass transfer efficiency.

Powerful Controller

Powder Coating Gun

Powder Coating Pump

COLO Powder Coating Spray Booth

Cartridge powder coating spray booth incorporates a highly efficient filter cleaning system, interval controlled by automatic pulse-jet device. The filter material is imported quality polyester, high precision and long life span. Innovative industrial design of powder coating booth maximizes the powder recovery.

1. Colo's booths use 100% polyester precision filters with exact porosity for separation, and feature a PLC-programmed self-cleaning system to maintain capacity.

2. A powerful centrifugal fan draws air into the booth, directing overspray powder toward filters for complete capture, ensuring particle-free air. Colo's booths feature safe, energy-saving aluminum fans.

3. The control unit features multiple programs, each corresponding to different functions to manage fan operation, filter cleaning cycles, and powder hopper movement.

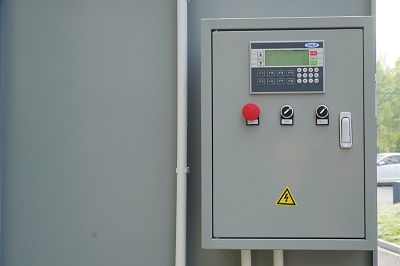

PLC Control Unit

Cartridge filters

Fan Motor

Specifications of Powder Coating Booth

Operating dimensions	1500width*1500depth*1700Height(mm)
Weight	480kg
Power supply	Electric, 2.2kw
Voltage	380V220V, 50-60Hz (custom voltage as local)
Filters spec	Polyester, 3PCS, Size(Dia325*H900mm)
Air consumption	4000m3/h
Fan motor power	2.2kw

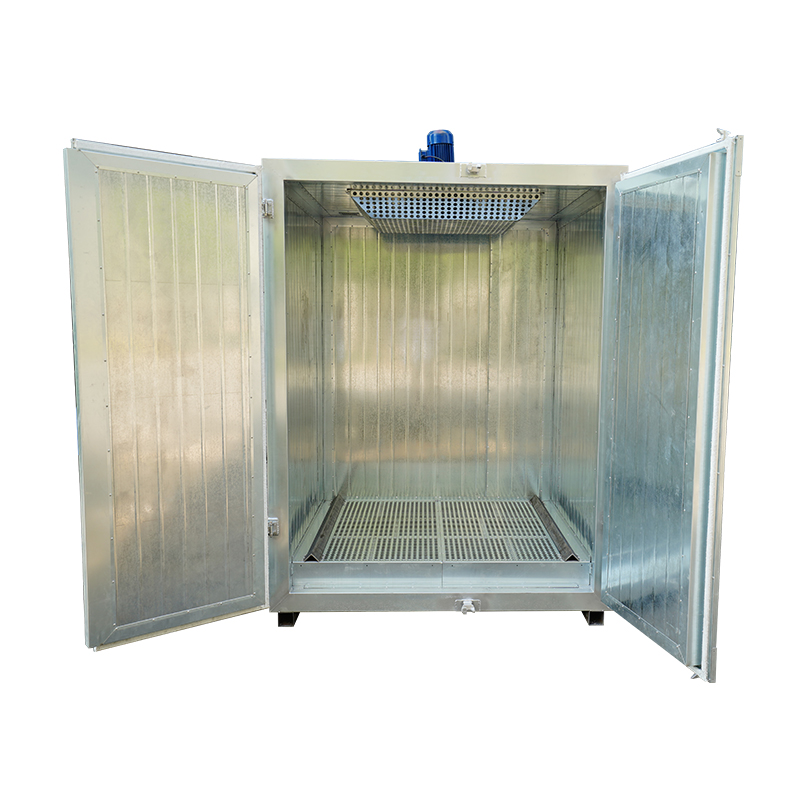

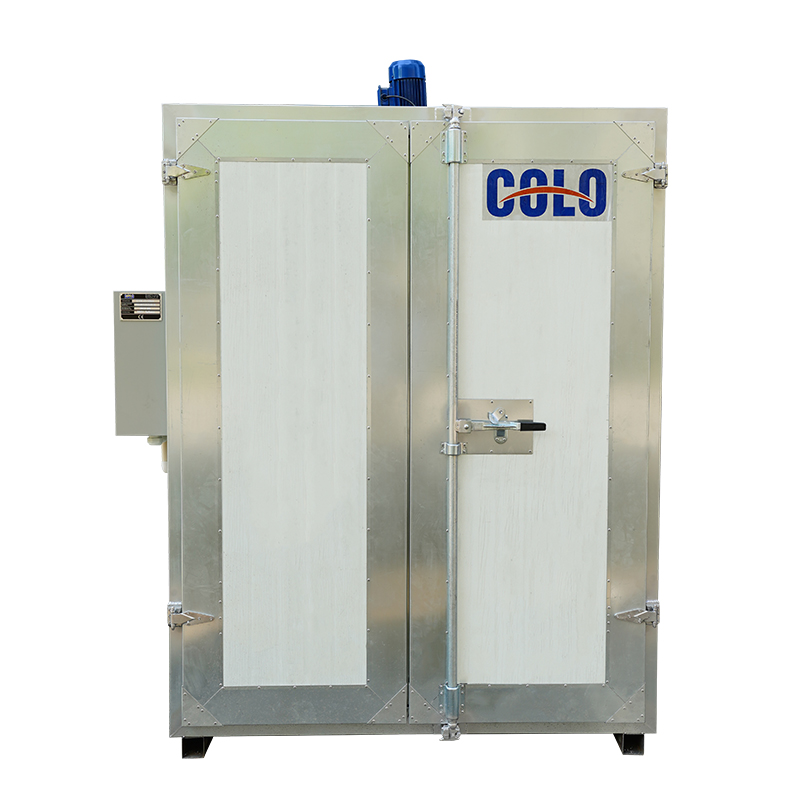

COLO Powder Coating Curing Oven

COLO powder coating oven is a closed insulation space that constructed by rockwool board, taking use of electric energy that creates hot air to increase the internal temperature, while an forced air fan cycles hot air through the entire dimension ensures even temperature. Powder coated alloy wheels will get a quality finish with consistant gloss and colors.

1. Built with top tracks to connect to powder coating line conveyor.

2. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.

3. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.

4. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.

5. Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.

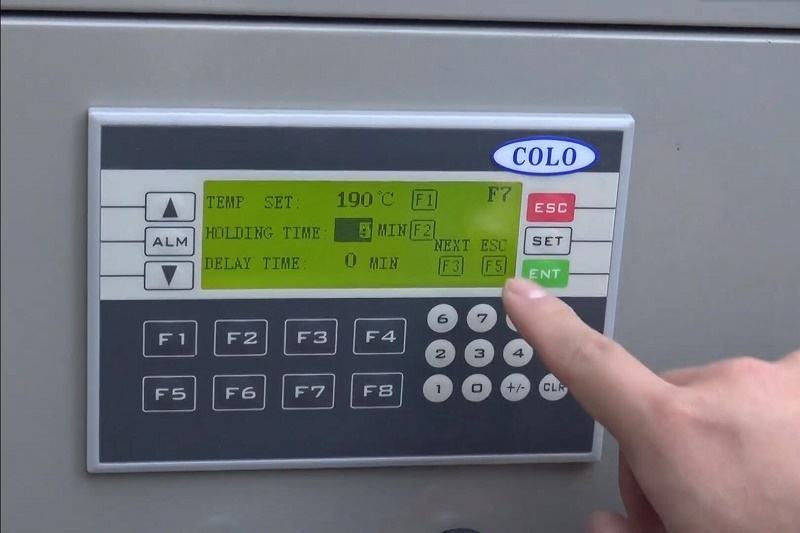

PLC Controller

Rock Wool Board

Trolley and Frames

Specifications of Powder Coating Curing Oven
