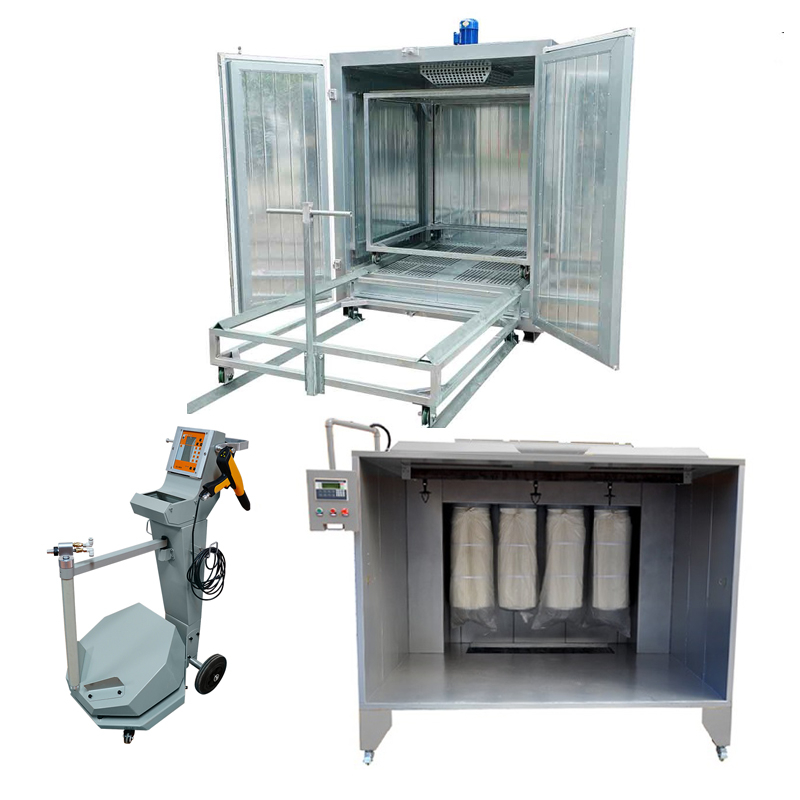

Powder Coating Equipment for Wheel Repair Shop

Powder coating equipment for wheel repair shop, which including powder coating gun, powder spray booth and powder curing oven, and provides easy, flexible and efficient powder application job.
  • COLO-191S+COLO-2315+COLO1515

  • COLO

Powder Coating Equipment for Wheel Repair Shop

When setting up a Powder Coating Equipment for Wheel Repair Shop, powder coating guns, powder coating booths and powder coating ovens is the key elements. This set of powder coating equipment is suitable for wheel repaire in batches, suitable for alloy wheels of various sizes, with high efficiency and uniform finishing.

COLO-191S Powder Coating Machine

COLO-191S powder coating machine is our main product, characterized with the latest digital valve control. Giving a more uniform finishing film while saving powder cost.

COLO-191S Powder Coating Machine

Powder Coating Machine Configuration & Features

1) 0-100kv Voltage adjustable, powerful and durable.

2) Digital valve control technology gives consistent film thickness.

3) Three presets programs for flat coating, corner coating and recoating.

4) Allows to store 20 personalized application coating programs.

5) Equipped with lightweight COLO-08 manual powder spray gun.

6) 60 lbs fluidized powder hopper or box feed type for choice.

COLO-2315 Manual Powder Coating Booth

The advanced manual powder coating booth is ideal for small-to-medium-sized batch powder applications, an integrated powder collection module includes high precision cartridge filters along with pulsing cleaning system, creating clean and bright finishing environment.

COLO-2315 Manual Powder Coating Booth

Powder Coating Booth Specifications

Model COLO-S-2315
Operating Dimensions Width2300*Depth1500*Heght1500mm
Overall dimensions Width2550*Depth2100*Heght2240mm
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
Filter Count
4 pcs, Quick-release Type
Filter Material
Filter Cleaning
Air Consumption

COLO-1515 Powder Coating Curing Oven

COLO-1515 powder coating oven applies PLC control technology giving precision heating process. Airflow systems promote air mixture for faster temperature rise and uniform heating. Electrical powder coating oven ensures the environment clean, an excellent tool for commercial & industrial powder application.

COLO-1515 Powder Coating Curing Oven

Powder Coating Oven Specifications

Model COLO-1515
Working dimensions Width1500 x Height1500 x Depth1500 mm
Overall dimensions

Width1900 x Height2200 x Depth1700 mm

Power supply electric 18kw
Voltage 380V/220V (Custom Voltage Available)
Frequency 50-60hz
Warm-up time 15-30 min. (180° C)
Temperature stability < ± 3-5°C
Temperature max 250° C
Ventilation performance 805-1677m3/h
Motor power 0.75kw
Circulation/ Air flowVertical Variable through holes on the walls
Transportation Trolley
Warranty 12 months
