Semi-automatic Batch Powder Coating System

This powder coating system package suits for semi-automatic batch business COLO-2000D is designed for consistent and uniform coating.
COLO-0825 Powder Spray Booth: Width800 * Height2000 * Depth4000mm
COLO-5219 Powder Curing Oven: Width1800 * Height1800 * Depth5000 mm
  • COLO-Package

  • COLO

Semi-automatic Batch Powder Coating System

This semi-automatic powder coating system including professional powder coating machine, pass thru powder coating booth, batch powder curing oven, a good option for perfectly coating aluminum profiles, window frames, doors, fence, cyclinders in automatic powder spray booth and manual powder coating oven.

Semi-automatic Batch Powder Coating System

COLO-2000D Powder Coating Reciprocator

COLO Reciprocator is designed for consistent and uniform coating in automatic production line. spraying guns are mounted on an arm extended from a carriage, whose movement is programmed in various speeds & strokes to suit conveyor speed & object height respectively.

COLO-2000D Powder Coating Reciprocator

Powder Coating Reciprocator Features

1. Working parameters are monitored on a user-friendly panel.

2. The digital control system can be memorized for 80 storable programs

3. Allows to carry 2-12pcs spray gun, making smooth movement

4. Driven by frequency motor, solid and maintenance free.

5. Sturdy construction could adapt to continual load everyday operational conditions.

COLO-S-0825 Powder Coating Spray Booth

1. Double filter stage recovery systems effectively capture oversprayed powder, 0.1micron high precision filters ensures only particle-free air discharged outside.

2. Pulse-jet automatic filter cleaning technology takes full utilization of powders and prolong filters' lifespan for many years.

3. A recovery hopper beneath the filter stage can be taken away for manually collection or connected with automatic powder recycling system.

4. All functions, parameters can be flexiblely controlled on the PLC panel, such as fan start, filter cleaning, booth cleaning.

0825 powder coating booth

Powder Coating Booth Specifications

Model COLO-S-0825
Operating Dimensions Width800 * Height2000 * Depth4000mm
Overall dimensions Width1200 * Height2580 * Depth5000mm
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
5.5kw, 2 sets
Filter Count
12 pcs(2 stages), Quick-release Type
Filter Material
Filter Cleaning

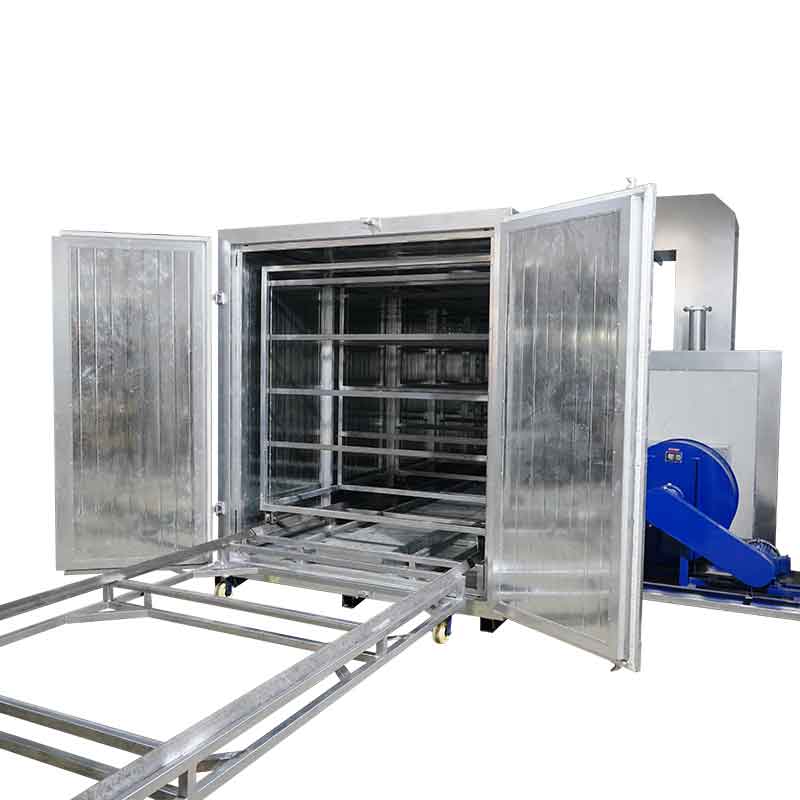

COLO-5219 Large Powder Curing Oven

1. Using PLC system to control all heating process, accurate and conveninet.

2. Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.

3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.

4. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.

5. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more.

COLO-5219 Large Powder Curing Oven

Powder Curing Oven Specifications

Worksize Dimensions
Width1800 * Height1800 * Depth5000 mm
Overall Dimensions
Width2100 * Height2200 * Depth5200 mm
Power Supply
LPG / Gas / Diesel
Voltage/Frequency 380V/220V (50-60Hz)
Warm-up Time 15-30 min. (180° C)
Temperature Stability < ± 3.0-6°C
Temperature Max. 250° C
Transport System
Two trolleys
Burner Italy Riello, 10,0000cal
Circulation/ Air flow Vertical ,Variable through holes on the walls
Ventilation Performance 8288-16576m3/h
Motor Power 7.5kW
Warranty 12 months
