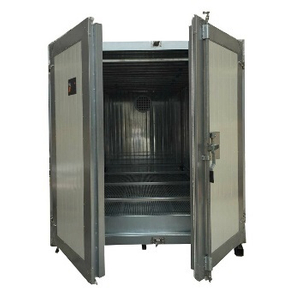

Powder Coating Batch Oven with Top Track

- Gas fired powder coating oven for high efficiency curing jobs
- With three top tracks to match with conveyor booth system
- Sturdy construction and durable materials ensure long service life
- Precisely controlled temperature by PLC
  • COLO-3210

  • COLO

Powder Coating Batch Oven with Top Track

COLO-3210 Powder Coating Oven with top track is designed to work with pass through spray booth, allows workparts hold on the overhead conveyor for continuous powder coating, ideal for batch production of aluminum profiles, metal doors, window frames, etc. It utilizes gas fired heating system and powerful recycling fan assure rapid temperature rise and consistent curing temperatures.

Powder Coating Batch Oven Details

Circulation Fan

Circulation Fan

We use 5.5kw high performance circulation fan  which provides uniform air distribution along the entire length of the work chamber resulting in quality cured finishes and optimum cure cycles. The fan motor is specially made to prevents high temperature which is safer and longer life.


Italy imported RIELLO burner. The high performance burner takes full utilization of burning fuels, giving quick raise of high temperature, tme-saving, energy-saving.

PLC Control System

PLC Control System

Control provides high precision heating process, it offers all the features you need. The LED display allows you to set the temperature, as well as the duration of heating process at the desired temperature.

Powder Coating Batch Oven Specifications

Model COLO-3210
Operating Dimension Width2000 x Height1900 x Depth3100 mm
Power Supply Gas/LPG
Italy Riello, 100,000cal
Voltage/Frequency 220V/280V/415V, 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 4kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months

Powder Curing Ovens for Powder Coating Applications

Powder coating ovens are used to cure powder coated parts. Once cured, the powder coating creates a tough, durable film that is generally harder and stronger than any genetal paint film. A cured powder coated film is often used to coat certain metals in a variety of industries including automobile, agriculture equipment, electronics, cell phone and computer components, and increasingly, for coating aluminum extrusion used in household and building products.
