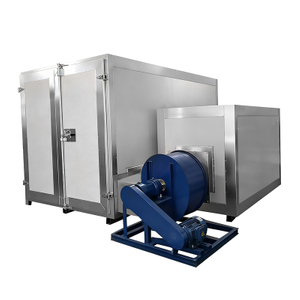

Gas Fired Powder Coating Batch Oven COLO-1864

- Operating Dimension: Width1600 x Height1800 x Depth1400 mm
- Takes natural gas/LPG as heating source
- Uniform heating across oven interior
- Precise temperature control via PLC panel
Quantity:
  • COLO-1864
  • COLO

Gas Fired Powder Coating Batch Oven COLO-1864


COLO-1864 powder coating oven, working size 1.6*1.8*1.4 m suits for batch powder curing production, such as alloy wheels, automotive parts, etc. Engineered with high-quality components that never compromise quality and performance. This powder coating oven reaches curing temperatures faster, hot air flow ensures oven interior evenly heated to get a high quality curing effect.

powder coating gas oven
7



Features of COLO-1864 Gas Fired Powder Coating Oven


1. Taking natural gas as fuel to reach required temperature faster, reduces operating cost and increases productivity efficiently.

2. PLC controller provides high precison heating process, easy to set required parameters on the panel, such as temperature, heating time, etc.

3. Oven material is 100mm rock wool board that inserted between galvanized inner wall and color-steel external skins, minimizes temperature dropping.

4.  Italy imported Riello burner takes full utilization of fuels, features more efficient and energy-saving.


gas powder coating oven
powder coating oven


COLO-1864 Gas Fired Powder Coat Oven Specifications


Model COLO-1864
Operating Dimension Width1600 * Height1800 * Depth1400 mm
Power Supply Gas/LPG
Burner
Italy Riello, 100,000cal
Voltage/Frequency 220V/280V/415V, 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 3kw
Ventilation Performance
8288-16576m3/h
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months
