20ft Powder Coating Batch Oven

Built with a burning room and a heating chamber made of 100mm thickness isolation board, consists of circulation fan, gas/diesel burner, PLC control unit, transport trolley, etc.
Availability:
Quantity:
  • COLO

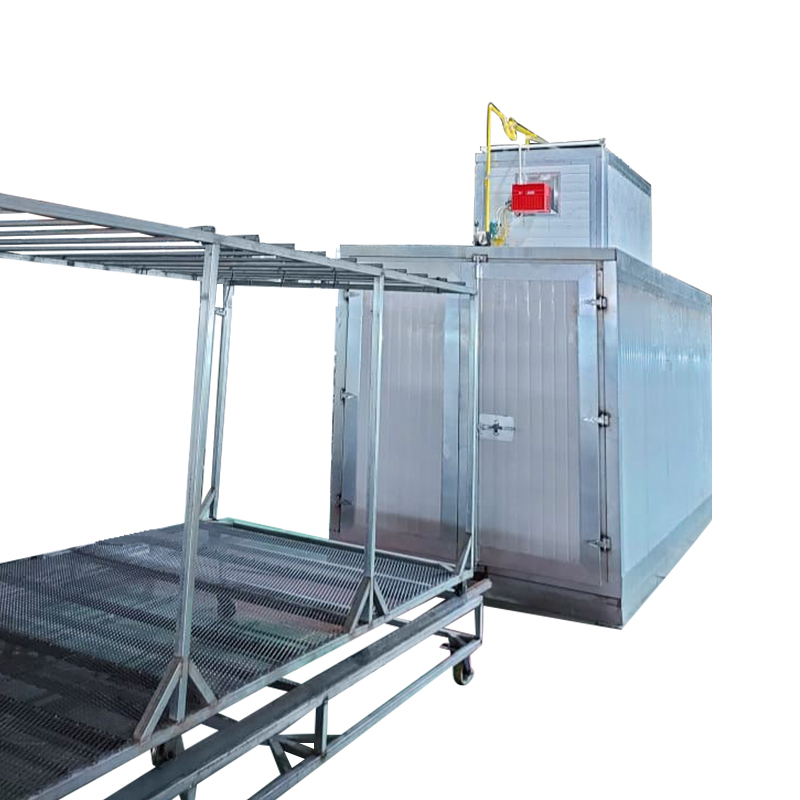

20ft Powder Coating Batch Oven

The worksize dimensions of this powder batch oven is 2000mm width x 2000mm height x 6000mm depth.Our powder coating ovens can be powered by natural gas, LPG or diesel, which are recommended for bigger dimension plans. These ovens costs less energy expense comparing with electric curing ovens. COLO powder coating ovens are constructed from high quality components that ensures quick and uniform heating.

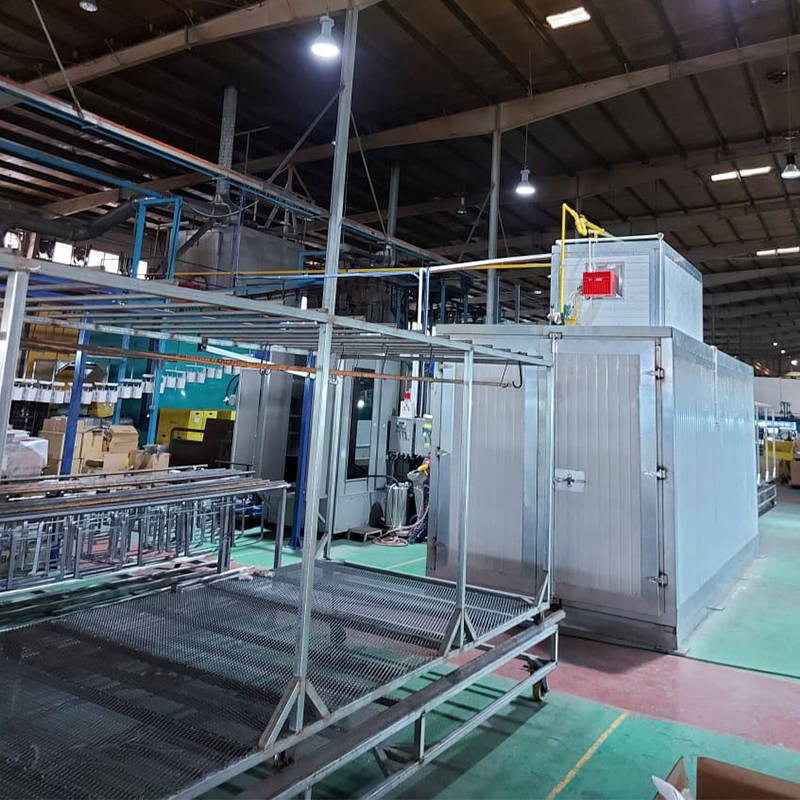

20ft Powder Coating Batch Oven

Equipped with our cart, this powder curing oven is more convenient to use on the powder coating line and is suitable for workpieces that are heavy and difficult to handle by manpowder, which also require batch production.

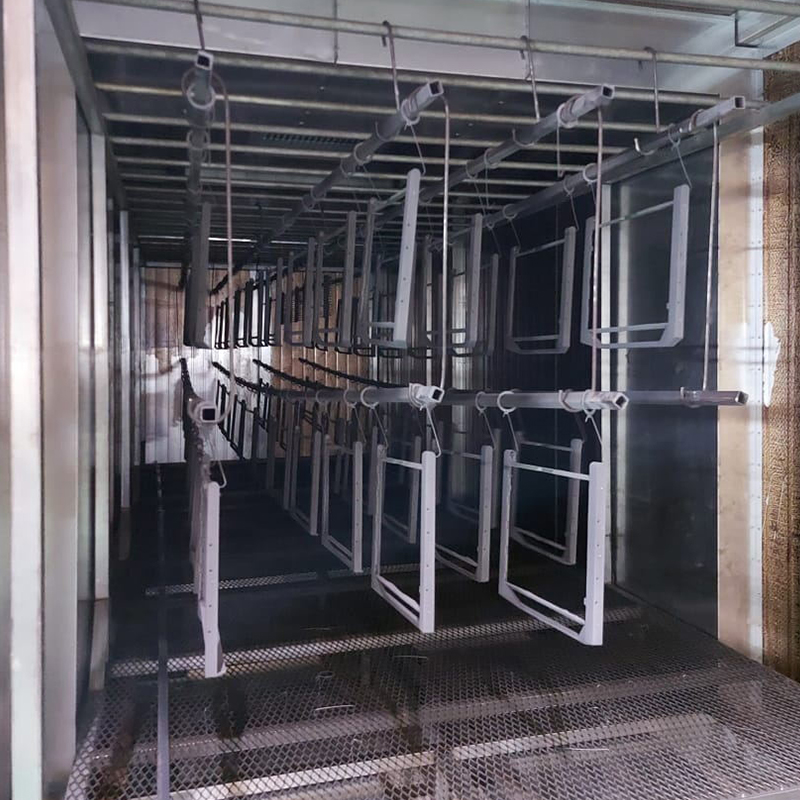

 powder curing oven application
 powder curing oven application
 powder curing oven application


Componets of Powder Coating Batch Oven

Riello Powder Curing Oven Burner


Riello Powder Curing Oven Burner

1.We supply powder coating oven burners for natural gas, LPG, or diesel fired oven.

2.Our burners taking full utilization of fuels, quickly get required temperature and save energy.

3.Allows low power consumption and delivers uniform temperature output as required.

4.Unique designed combustion head achieves superior performance and low emissions.





Powder Coating Oven Rock Wool Board


Powder Coating Oven Rock Wool Board

1.This rock wool board is high-density rigid boards with better heat insulation.

2.Offers fire protection and improves safety because it is made of fire-resistant rock.

3.Oven wall is made of galvanized innerwall, rock wool board interlayer and color steel outwall.

4.Provides long term service due to the durability of rock that has longer lifetime.


powder coating oven controller


PLC Powder Coating Controller

1.Precise temperature and time setting which could ensure consistent coating results and appearance of finished product

2.PLC controller with convenient display screen, push-button control and simple operation gives an easy start of powder curing.

3.The powder coating oven PLC controller is used to monitor and process the whole working process, includes temperature, time, fan working, etc.


Air Circulation Fan

Air Circulation Fan

1.The main function of circulation fan is to ensure the uniform temperature in oven chamber.

2.When the heating element creates hot air the circulation fan cycles the heat through entire chamber and ensures workparts to be heated evenly.

3.The research has shown that the uniformity of air temperature in the furnace of our circuit does not exceed ±3°C.


Specifications of Powder Curing Oven

Worksize dimensions 2000 width x 2000 height x 6000 depth mm
Power supply Gas
Voltage/Frequency 380V/220v(50-60hz)
Warm-up time 15-30 min. (180° C)
Temperature stability < ± 3-6°C
Temperature max. 250° C
Ventilation performance 8288-16576m3/h
Fan Motor power 7.5kw
Burner Italy Riello, 20,0000kcal
Transportation two Trolleys
Warranty

12 months


We supply standard modes of powder coating oven with lower cost, also provide custom services, oven sizes and configurations can be designed as your precise requirements.
