Takes LPG/natural gas as fuels quickly giving chamber a high temperature, combines with a circulation fan which provides uniform air distribution among the entire length of the work chamber resulting in quality finishes and optimum cure cycles.
Our gas/LPG powder coating ovens are constructed from high quality components in unique dessign ensures repeatable perfor2019-04-24mance coupled with simple operations
Gas/LPG powder coating oven with a high performance burners takes full utilization of fuels, gives much quicker raise to a required temperature comparing with electric heating, as well as more environmental-friendly than diesel fired oven.

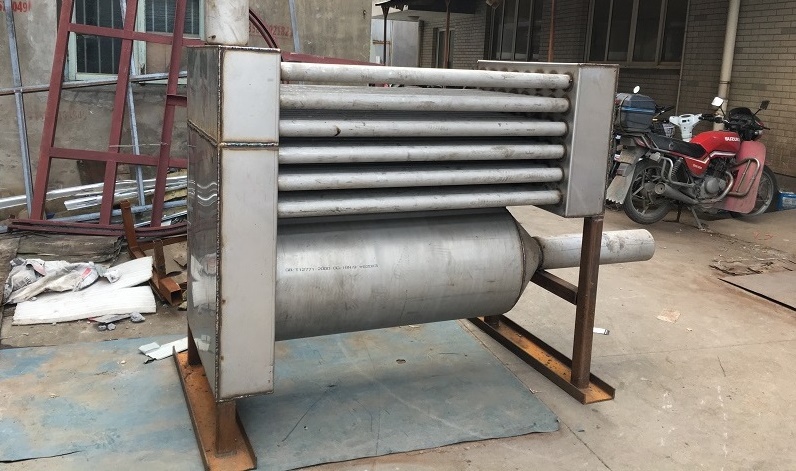

Heat exchanger is made of seamless stainless steel pipe #310S, 8x8 array, 3-4mm thickness, high temperature-resistant, long lifespan that transfers clean hot air.

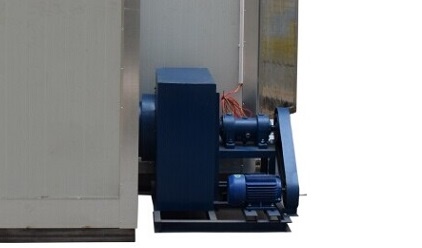

A fan circles hot airs in the chamber ensure even temperature distribution with a minimal temperature difference, such an oven will obtain a quality finish with even gloss and consistent color.
Interlayer is 100mm thick rockwool insulation board density 120kgs/cbm. with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.
High precison and reliable heating process, easy to set accurate required temperature on the panel, as well as set the heating time and fan working. Once the time arrives, the oven will stop automatically.

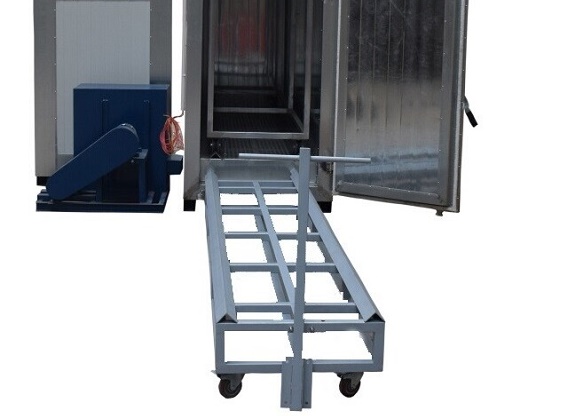

Transpot System - Double Trolleys
An economical solution when leading heavy elements. Using double trolleys will not pollute the inner chamber and ensure the color purity of parts.
|Operating Dimension||Width800 * Height1500 * Depth3000 mm|
|Power Supply||Gas/LPG |
|Burner ||Italy Riello, 100,000cal |
|Voltage/Frequency||220V/280V/415V, 50/60Hz (voltage can be custom as local)|
|Warm-up Time||15-30min (180°C)|
|Temperature Stability||<± 3-5°C|
|Ventilation Performance ||8288-16576m3/h |
|Circulation/Air Flow ||Vertical, Varaible through holes on the walls|
We have many years experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating ovens. COLO standard powder coating ovens cover most commercial and industrial powder coat applications, by professional technology we can produce custom ovens based on your precise requirements.
