COLO-1830
COLO

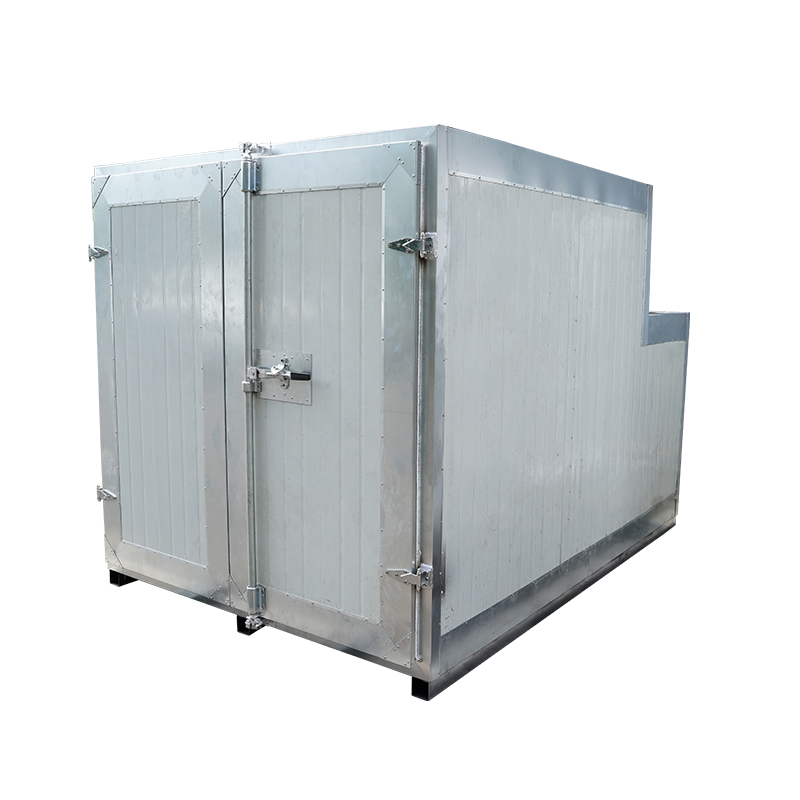

COLO-1830 powder coating box oven is designed for curing parts to form sturdy film in powder coating process. Takes gas as fuel, this oven features heating effectively and saving energy. There is plenty inner space to holds batch workparts while trolleys are designed to help easy loading and transporting. A fan circulates heated air in the oven chamber for a balanced, uniform temperature, resulting in a quality surface for your parts.
 PLC Controller Accurately set required heating temperature and time, digital process timer with auto-shutdown is easy to operate, and fan working is also controlled on the panel. |
 Powder Coating Oven Wall Material COLO powder coating oven wall is designed according to sandwich structure, this is an optimal solution for minimum temperature dropping. Interlayer is 100mm thick rockwool insulation board (density 120kgs/cbm) with heat-resistent galvanized innerwall and durable color steel outwall. |
 Powerful Circulation Fan A fan circles hot air in the chamber to minimize temperature difference and guarantee uniform temperature, so that to make powder coated parts be cured with consistent color and gloss. |
 Italy RIELLO Gas Burner Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250℃ (normally 180℃ for heating 15-20mins). Quick heat-up rates helps to achieve higher production output. |

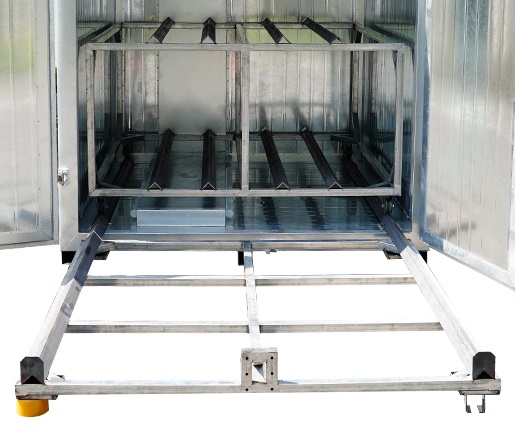

 Custom Trolleys Trolleys are convenient to transport heavy parts, combination of outer an inner trolleys is tends to not pollute the oven chamber and ensure the color purity of parts. We offer custom-made design to get optimal utilization of the inner space to holds your workparts as well as facilitate the loading and transporting. |
| Model | Working Dimension | Buner Power | Voltage | Fan Motor Power |
| COLO-1515 | Width1500*Heght*1500*Depth1300mm | 100,000Cal | 220V/380V/415V | 3kw, 1pcs |
| COLO-1732 | Width1650*Heght*1700*Depth3200mm | 100,000Cal | 220V/380V/415V | 4kw, 1pcs |
| COLO-3210 | Width2000*Heght*1900*Depth3100mm | 100,000Cal | 220V/380V/415V | 4kw, 1pcs |
| COLO-4772 | Width1608*Heght*2060*Depth4797mm | 200,000Cal | 220V/380V/415V | 5.5kw, 1pcs |
Each of our powder coating oven is built in house, constructed with durable material and advanced components to maximize lifespan and ensure superior heating performance. We have 10 years manufacturer of designing and manufacturing powder coating ovens exported to worldwide. Supply a variety of curing ovens with standard sizes, also provides custom design as your precise requirements, oversea installation, commissioning reasons for your to choose us as well.
COLO-1830 powder coating box oven is designed for curing parts to form sturdy film in powder coating process. Takes gas as fuel, this oven features heating effectively and saving energy. There is plenty inner space to holds batch workparts while trolleys are designed to help easy loading and transporting. A fan circulates heated air in the oven chamber for a balanced, uniform temperature, resulting in a quality surface for your parts.
PLC Controller Accurately set required heating temperature and time, digital process timer with auto-shutdown is easy to operate, and fan working is also controlled on the panel. |
Powder Coating Oven Wall Material COLO powder coating oven wall is designed according to sandwich structure, this is an optimal solution for minimum temperature dropping. Interlayer is 100mm thick rockwool insulation board (density 120kgs/cbm) with heat-resistent galvanized innerwall and durable color steel outwall. |
Powerful Circulation Fan A fan circles hot air in the chamber to minimize temperature difference and guarantee uniform temperature, so that to make powder coated parts be cured with consistent color and gloss. |
Italy RIELLO Gas Burner Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250℃ (normally 180℃ for heating 15-20mins). Quick heat-up rates helps to achieve higher production output. |
Custom Trolleys Trolleys are convenient to transport heavy parts, combination of outer an inner trolleys is tends to not pollute the oven chamber and ensure the color purity of parts. We offer custom-made design to get optimal utilization of the inner space to holds your workparts as well as facilitate the loading and transporting. |
| Model | Working Dimension | Buner Power | Voltage | Fan Motor Power |
| COLO-1515 | Width1500*Heght*1500*Depth1300mm | 100,000Cal | 220V/380V/415V | 3kw, 1pcs |
| COLO-1732 | Width1650*Heght*1700*Depth3200mm | 100,000Cal | 220V/380V/415V | 4kw, 1pcs |
| COLO-3210 | Width2000*Heght*1900*Depth3100mm | 100,000Cal | 220V/380V/415V | 4kw, 1pcs |
| COLO-4772 | Width1608*Heght*2060*Depth4797mm | 200,000Cal | 220V/380V/415V | 5.5kw, 1pcs |
Each of our powder coating oven is built in house, constructed with durable material and advanced components to maximize lifespan and ensure superior heating performance. We have 10 years manufacturer of designing and manufacturing powder coating ovens exported to worldwide. Supply a variety of curing ovens with standard sizes, also provides custom design as your precise requirements, oversea installation, commissioning reasons for your to choose us as well.
