Gas Fired Powder Coating Oven

- Operation size: Width2000 x Height1900 x Depth3100 mm
- Gas Fired Powder Curing Oven
- Energy-saving and environmental-friendly
- Cost-effective and high perfrmance
- Industry-standard powder coating oven

Quantity:
  • COLO-3210
  • COLO

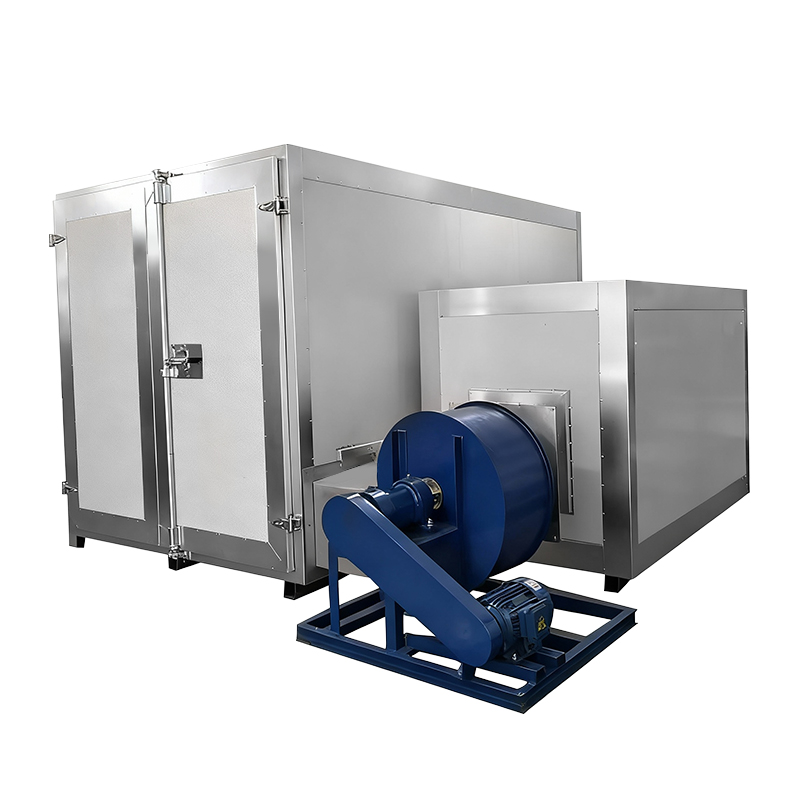

Gas Fired Powder Coating Oven


COLO-3210 Gas powder coating oven is a hot-selling model for industrial batch curing jobs. An indirect heating system takes natural gas as fuel fully burned by a high performance burner, and hot air is tramsferred from the heat exhanger. Users benefits from its features of energy-saving, efficient-working and environmetal-friendly by gas powder coating oven

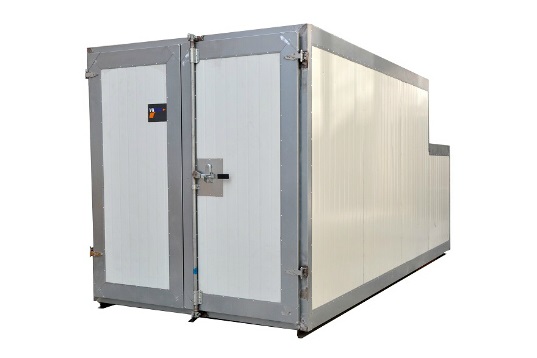

powder coating oven

powder coating oven


Features of Gas Fired Powder Coating Oven

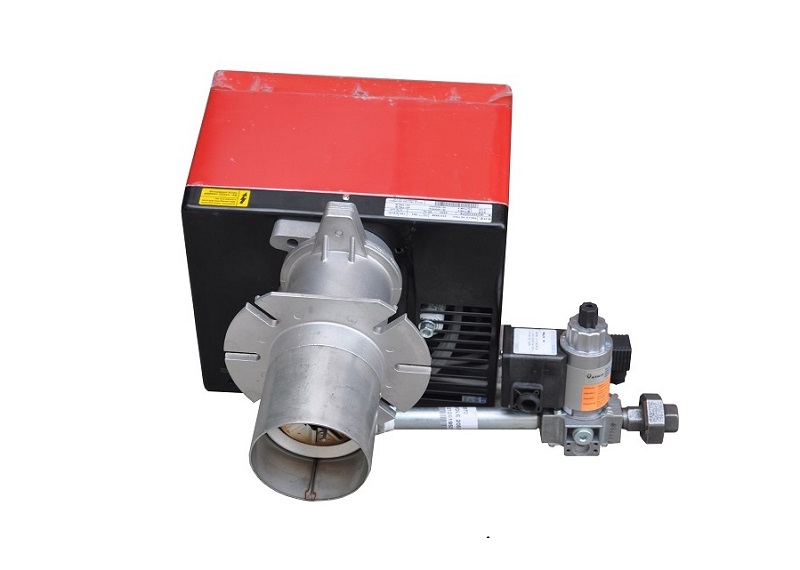

burner


Burning System


An imported Riello burners that takes full utilization of fuels, gives much quicker raise to a required temperature comparing with electric heating.

heat exchanger


Heating System


Heat exchanger is made of seamless stainless steel pipe #310S, 8x8 array, 3-4mm thickness, high temperature-resistant, long lifespan that transfers clean hot air.

gas powder coating oven circulation fan


Circulation Fan


A fan circles hot airs in the chamber ensure even temperature distribution with a minimal temperature difference, such an oven will obtain a quality finish with even gloss and consistent color.

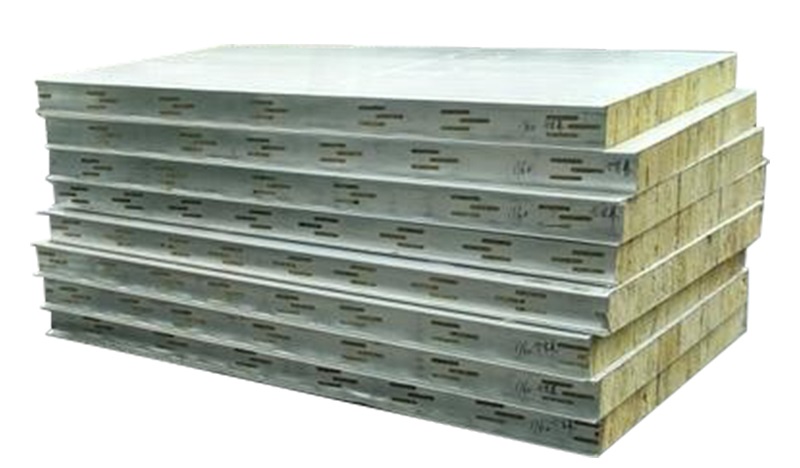

rockwool board


Oven Materials


Interlayer is 100mm thick rockwool insulation board density 120kgs/cbm. with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.

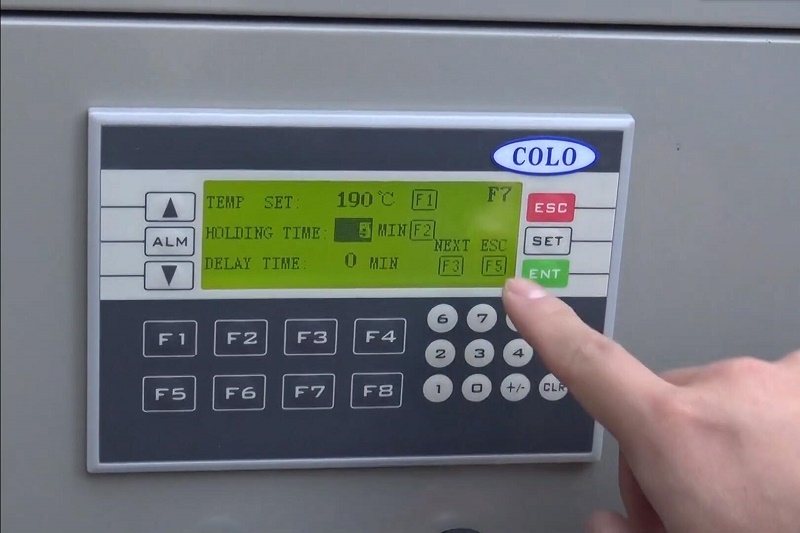

powder coating oven PLC controller


PLC Controller


High precison and reliable heating process, easy to set accurate required temperature on the panel, as well as set the heating time and fan working. Once the time arrives, the oven will stop automatically.


Gas Powder Coating Oven Specifications


Model COLO-3210
Operating Dimension Width2000 * Height1900 * Depth3100 mm
Power Supply Gas/LPG
Burner
Italy Riello, 100,000cal
Voltage/Frequency 220V/280V/415V, 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 4kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months


Buy Powder Coating Ovens from COLO


COLO's standard range of powder coating ovens cover most commercial powder coat products and industrial applications, a custom designed and manufactured curing oven can be also provided. As a 10 years manufacturer of powder coating equipment, we offer you reliable, cost-effective products.


box powder coating oven delivery
