Batch Powder Coating Gas Oven

- Operation Dimension: Width1650 x Height1700 x Depth3200 mm
- Gas fired curing oven, energy-saving, environmetal-friendly
- Fully burned of fuels, high efficiency heating
- Uniform heat distribution with forced air
- Precise temperature control by PLC panel

Quantity:
  • W1650xH1700xD3200(COLO-1732)
  • COLO

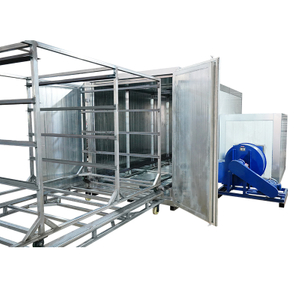

COLO-1732 Batch Powder Coating Gas Oven


COLO batch powder coating gas ovens at unbeatable price are designed for "batch" powder curing with constant product output, equipped trolleys with shelves for placement of products by taking efficient use of chamber space. Our gas fired curing ovens have a temperature range of 50℃ to 250 ℃. and 100mm insulation, best value anywhere with performance and construction quality.



QQ截图20161013164009 - 副本

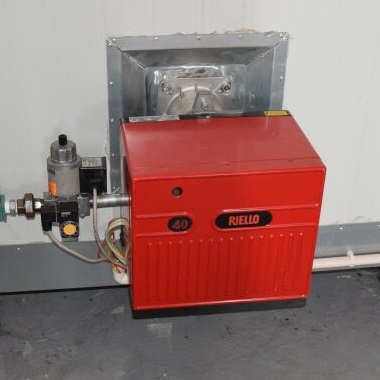

Burning System - Riello Burner

An imported Riello burners in high performance that takes full utilization of fuels, gives much quicker raise to a required temperature comparing with electric heating.

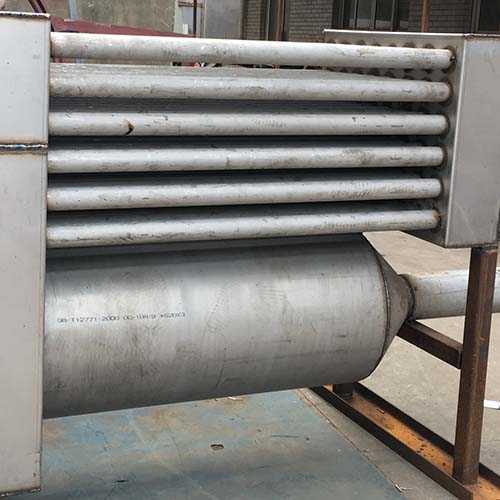

Heating System - Stainless Steel Heat Exchanger

Heat exchanger is made of seamless stainless steel pipe #310S, 8x8 array, 3-4mm thickness, high temperature-resistant, long lifespan that transfers clean hot air.


Forced Air - Powerful Circulation Fan

A fan circles hot airs in the chamber ensure uniform warm distribution with a minimal temperature difference less than ±5℃ , such an oven will obtain a quality finish with even gloss and consistent colour.


Oven Materials - 100mm Rockwool Insulation

Interlayer is 100mm thick rockwool insulation board, density 120kgs/cbm. with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.


PLC Controller - Precise Temperature Control

High precison and reliable heating process, easy to set accurate required temperature on the panel, as well as set the heating time and fan working. Once the time arrives, the oven will stop automatically.



Gas Powder Coating Oven Specifications


Model COLO-1732
Operating Dimension Width1650 x Height1700 x Depth3200 mm
Power Supply Gas/LPG
Burner
Italy Riello, 100,000cal
Voltage/Frequency 220V/280V/415V, 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 4kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months



Buy Powder Coating Ovens from COLO


COLO's powder coating ovens cover most commercial powder coat products and industrial applications, such as car/motorcycle wheels, bike frames or other various vehicle parts,  iron art products such as light decorations, furnitures like metal chair, desk, cabinet and shelves, etc.

We offers a wide range of standard sizes for electric powder coating oven, gas/LPG powder coating ovens, diesel curing oven as you required, as well as conveyor type powder coating ovens to match a powder coating line. A custom sized and designed curing oven can be also and manufactured.

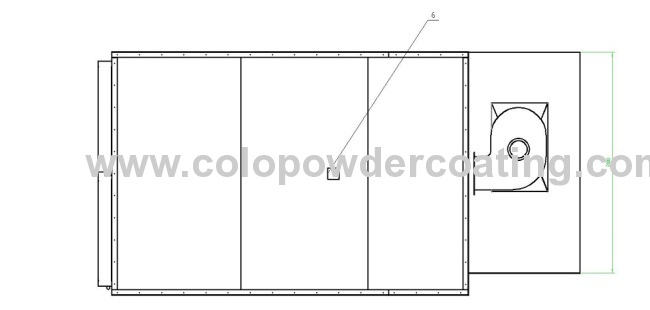

Drawing of the gas powder coating oven

IF THE SIZE IS NOT YOU NEED, FREE DESIGNING ON ALL GAS BATCH POWDER COATING OVENS
