Custom Large Powder Coating Spray Booth

- Operating Dimension: 3900width*2400depth*2400Height(mm)
- Custom size and configuraion available
- Filter recovery system
- Flexibility and performance in manual powder coating operations.

Quantity:
  • COLO-3924
  • COLO

Custom Large Powder Coating Spray Booth


This is a basic manual powder spray booth which has incorporated the highly efficient filter cleaning system, especially suitable for large workparts for single colour production, or spray-to-waste for multi-color

COLO offers custom service for your irregular shaped parts, booth size and configurations can be designed by professional technical team. Our powder coating booth provides maximum value, flexibility and performance in manual powder coating operations.

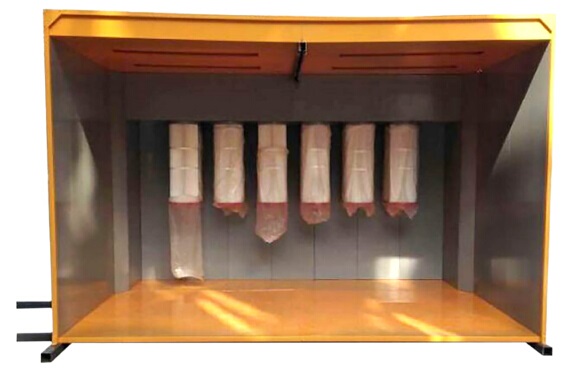

large powder coating booth



Powder Coating Booth Configurations


  • COLO' Cartridge type powder coating booth features an open-face design for simple operation.

  • Filter is equipped with automatic pulse jetting device for cleaing with Interval control.

  • 100% polyester high precision filters are easy to remove and replace.

  • Powerful extraction fan, reduce compressed air consumption and low noise level.

  • Takes with PLC controller to conveniently and accurately control the working of fan, set the interval of pulse cleaning, etc.

  • Modular and sturdy design, consists of powder coated steel plate, wear-resistent and long lifespan.



Technical Specifications


Model  COLO-3924
Operating dimensions:   3900width*2400depth*2400Height(mm)
Overall Dimension   4013width*2713depth*3347Height(mm)
Power Supply:     Electric, 5.5kw
Voltage:  380V220V, 50-60Hz (custom voltage as local)
Filters spec:     Polyester, 6PCS, Size(Dia325*H900mm)
Air consumption:  8000m3/h
Fan motor Power:  5.5kw
