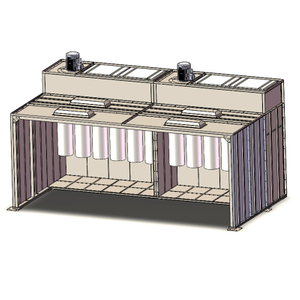

This is a low cost manual spray booth which that has incorporated the highly efficient filter cleaning system. It is especially suitable for small scale single colour production, or small batch spray-to-waste type multi-colour application, a right solution for every application whether new costarters or experienced users.
Filter is equipped with automatic back pulse jetting device, with automatic adjustment of the intermittent.

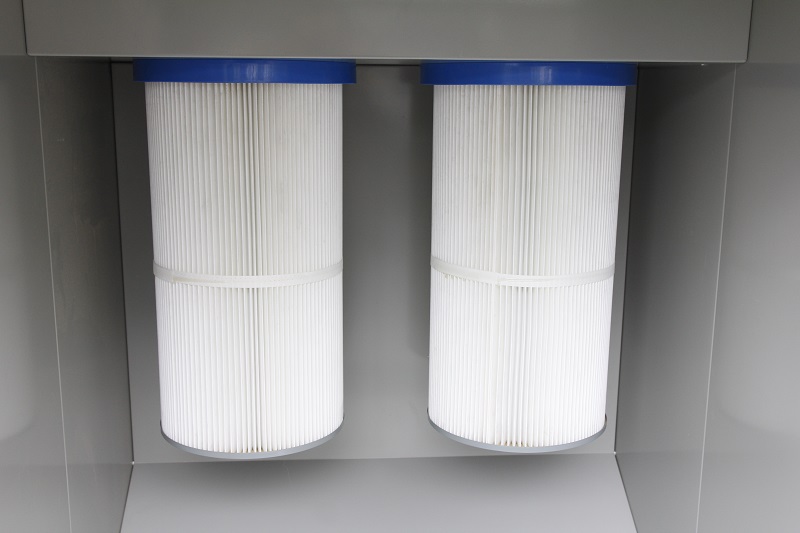

Quick-release type cartridge filters allows for easy replacement and color change.
An includde air solenoid value allows for easy filter maintenance
Energy saving air circulation (the extracted air is fed back into the atmosphere)
Full-function, compliant control panel with safety interlock installed in the side of the booth
A space-saving and compact design, cover a small area. Easy to move.

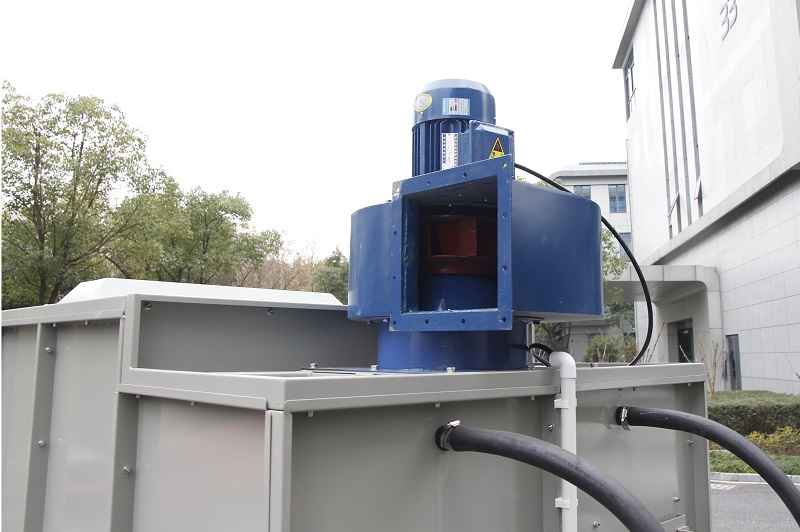

A booth fans draw air through filters. as the cartridge filters load, air flow decreases and the negative pressure rises within the air handler. a timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure max filter life. Pneumatic pulsing system with adjustable pulse time will assist in removing the powder from the filter. The air is filtered and clean enough to discharged back to the outside atmosphere.
The powder-coated steel booth provides a well-lit and bright working space. The minimum air extraction volume is monitored constantly and anacoustic. The integrated functions and ease of operation provide ideal conditions for efficient and friendly manual coating.
|Power Supply:||Electric, 1.5kw|
|Voltage:||380V220V, 50-60Hz (custom voltage as local)|
|Filters spec:||Polyester, 2PCS, Size(Dia325*H900mm)|
|Fan motor Power:||1.5kw |
