Pass Through Powder Coating Spray Booth

COLO-3212 Pass thru type powder coating booth suits for conveyorized coating applications, dual working stations supports coating both sides of parts by using manual or automatic spray equipments.

Quantity:
  • COLO-3212

Pass Through Powder Coating Spray Booth


COLO-S-3212 Pass Through Powder Coating Booth ideally suited for conveyorized coating applications. Engineered with dual working stations for coating both sides whether using manual or automatic powder coating equipments. The conveyor slot in the top of the booth allows the suspended parts to pass through the spray area with the installed conveyor.

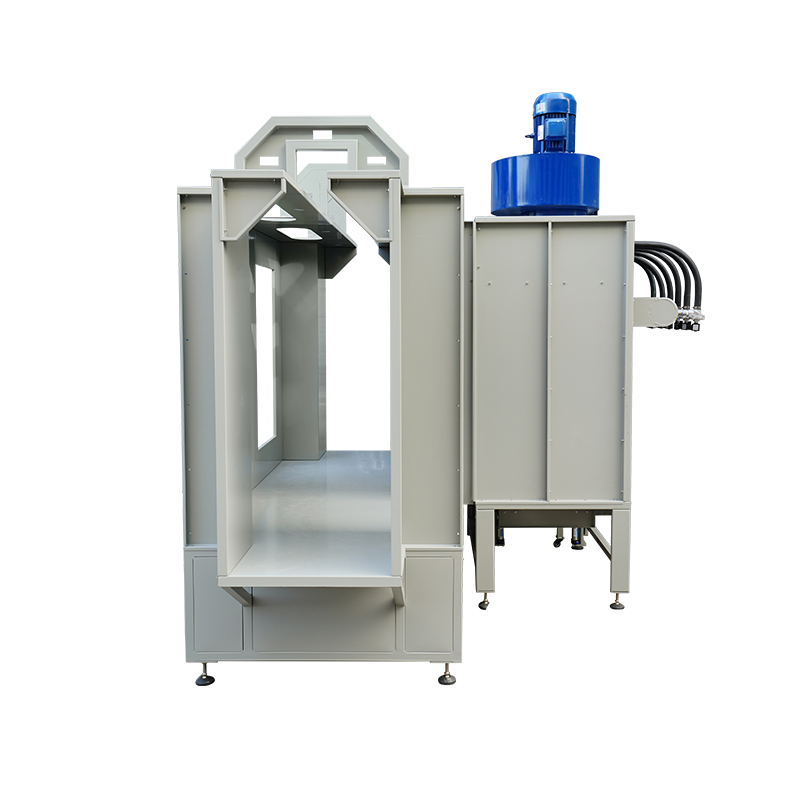

pass through spray booth
pass through spray booth


Conveyor Powder Coating Booth Configurations


1. Automatic filter cleaning by pulse jet device, prevents powder accumulation and extends filter life.

2. Four pcs high-quality polyester filters with exact porosity allows to 100% separate powders from airflow.

3. Low-noise fan with powerful performance supplies optimum airflow and reduces air consumption.

4. Full-function PLC controller offers more convenience and precision to set or adjust parameters.

5. Constructed by powder coated steel plate, features durable and rust-resistent.

6. Requires only quick, easy electrical and pnematic connections to start production.


cartridge filters

Cartridge Filters


powder coating booth

Removable Powder Collector


PLC Controller

PLC Controller


Technical Data of Pass Through Powder Coating Booth


Model COLO-S-3212
Operator Dimensions Width620 * Height1500 * Depth2920 mm
Overall Dimensions Width1200 * Height2033 * Depth3000 mm
Power Supply Electric
Nominal Power 4kW
Voltage 380V / 220V
Frequency 50-60 Hz
Filter Material Polyester
Filter Quantity 4 pcs
Filter Hang Type easy for change
Filter Cleaning System Pneumatic
