COLO-3249
COLO

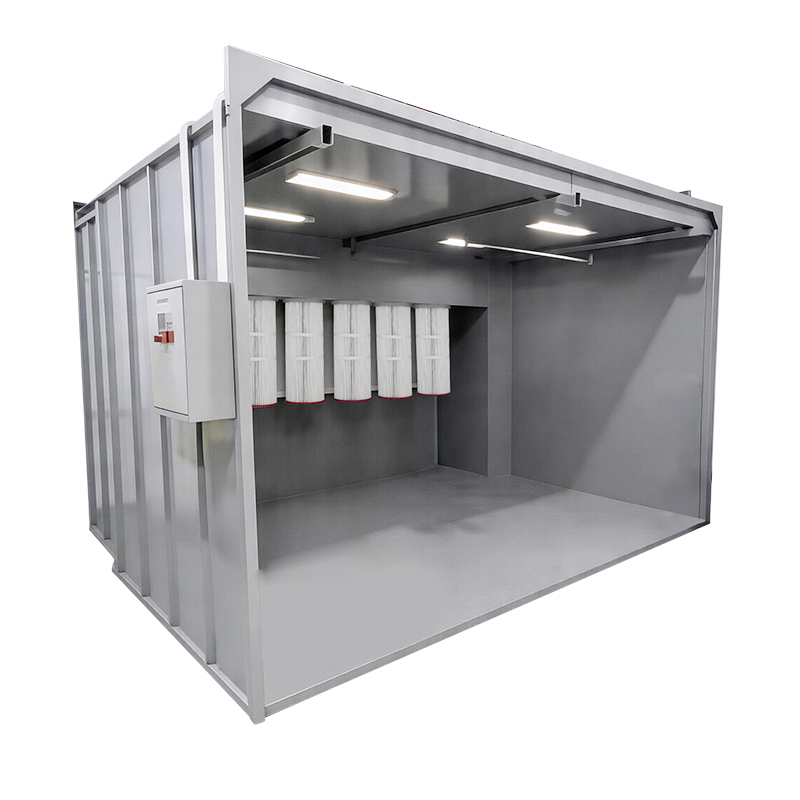

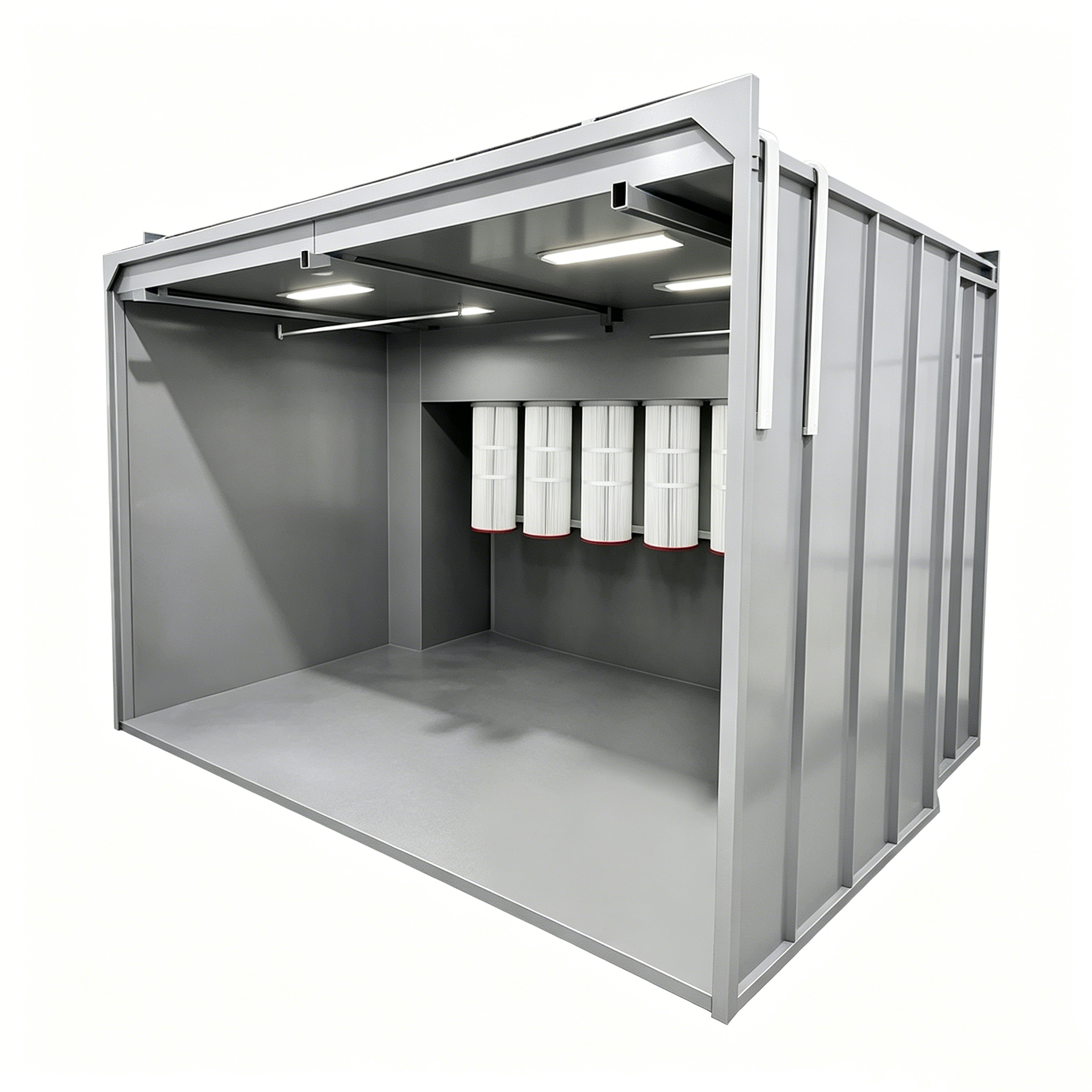

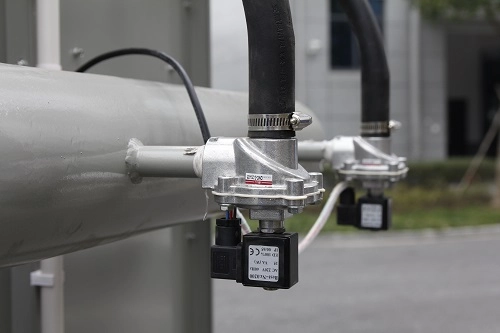

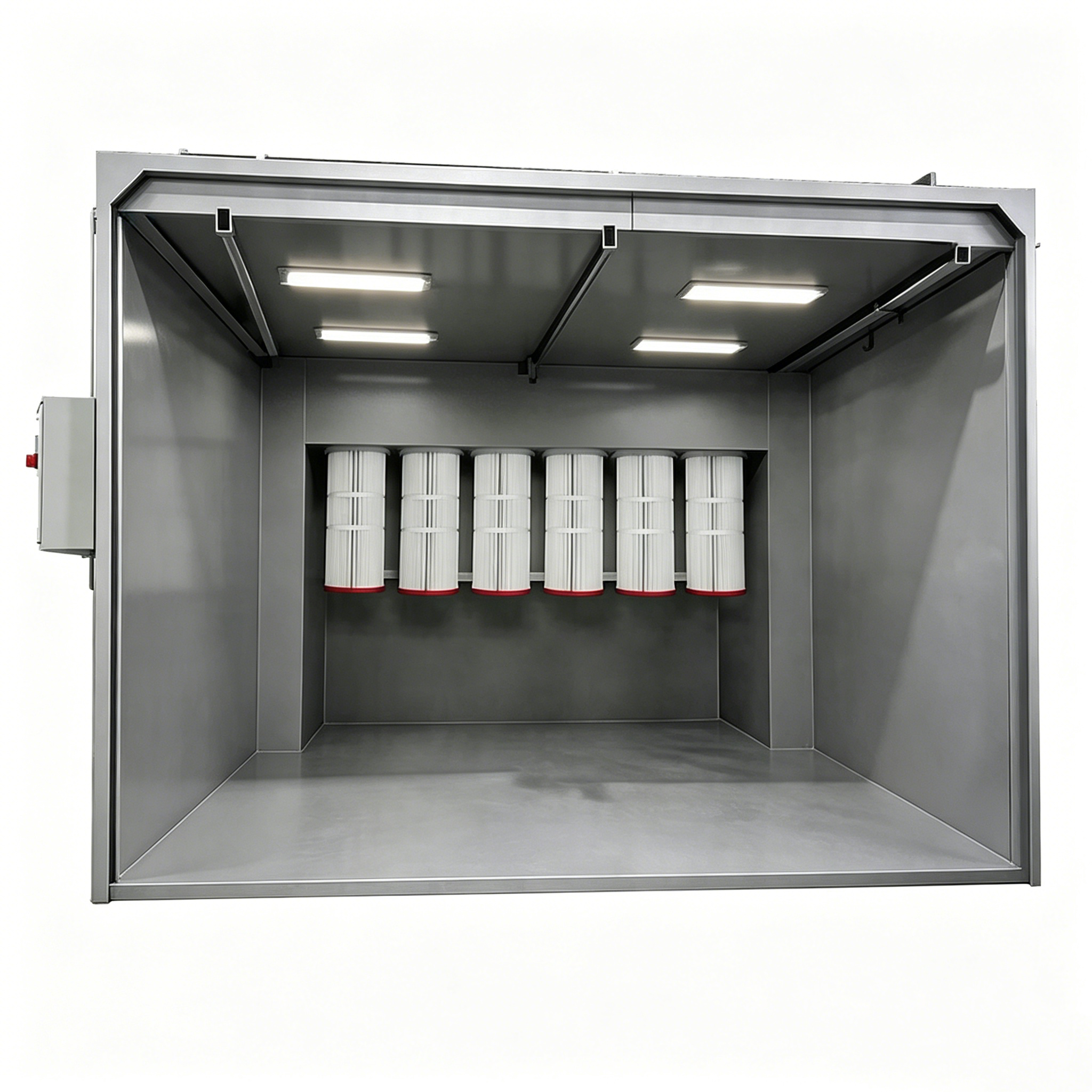

COLO Walk in Powder Coating Booth is ideal for powder coating large and bulky workparts. When processing large and bulky or heavy parts, after the part to be coated has been rolled into the booth, operator is able to walk in and spray the parts from all sides. Powder recovery system features high-efficiency cartridge filters for capturing powder overspray, and a pulse jetting valve device which cleans filters automatically for a longer lifespan

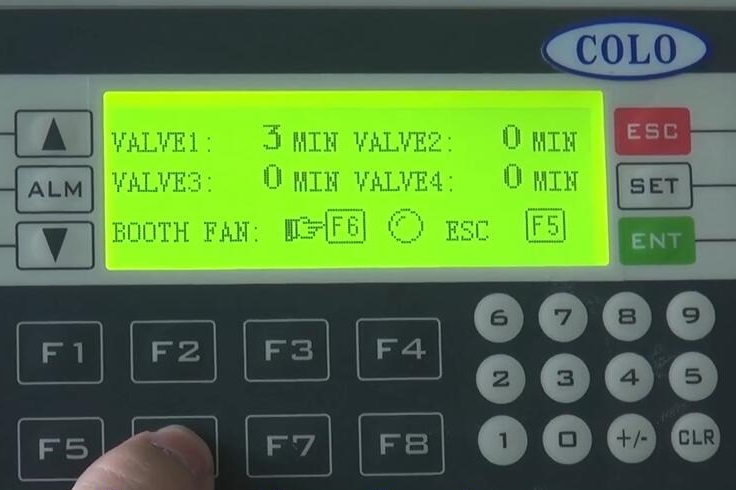

PLC Controller Full-function and compliant PLC controller with safety interlock comes standard on all models. Convenient, simple-operation control panel that includes a main power switch, extraction fan start/stop switches, cartridge-filter pulse-jet device timer and safety interlock switch, etc.
| Model | COLO-3924 |

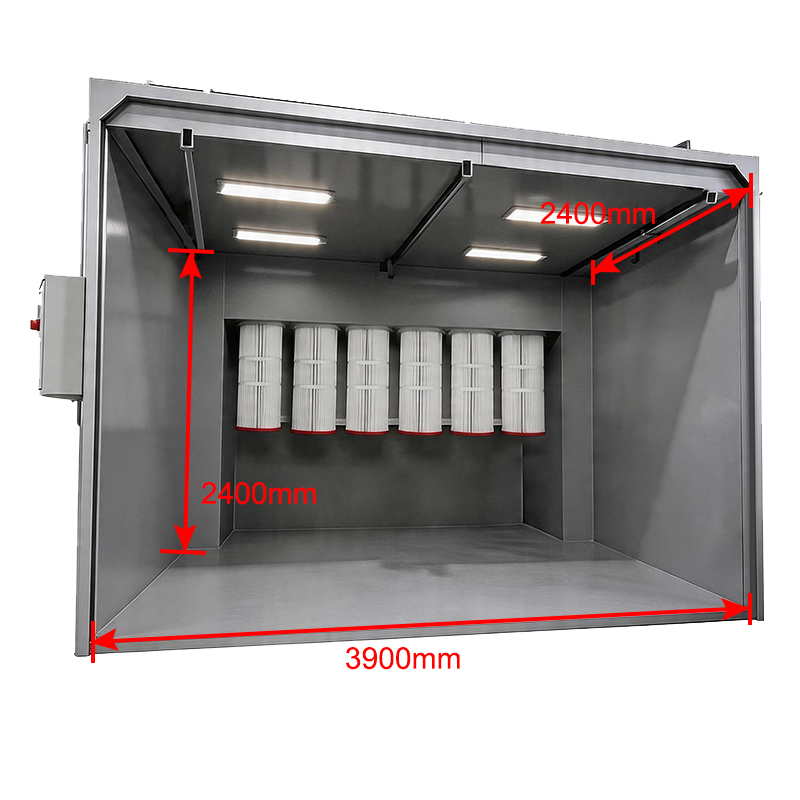

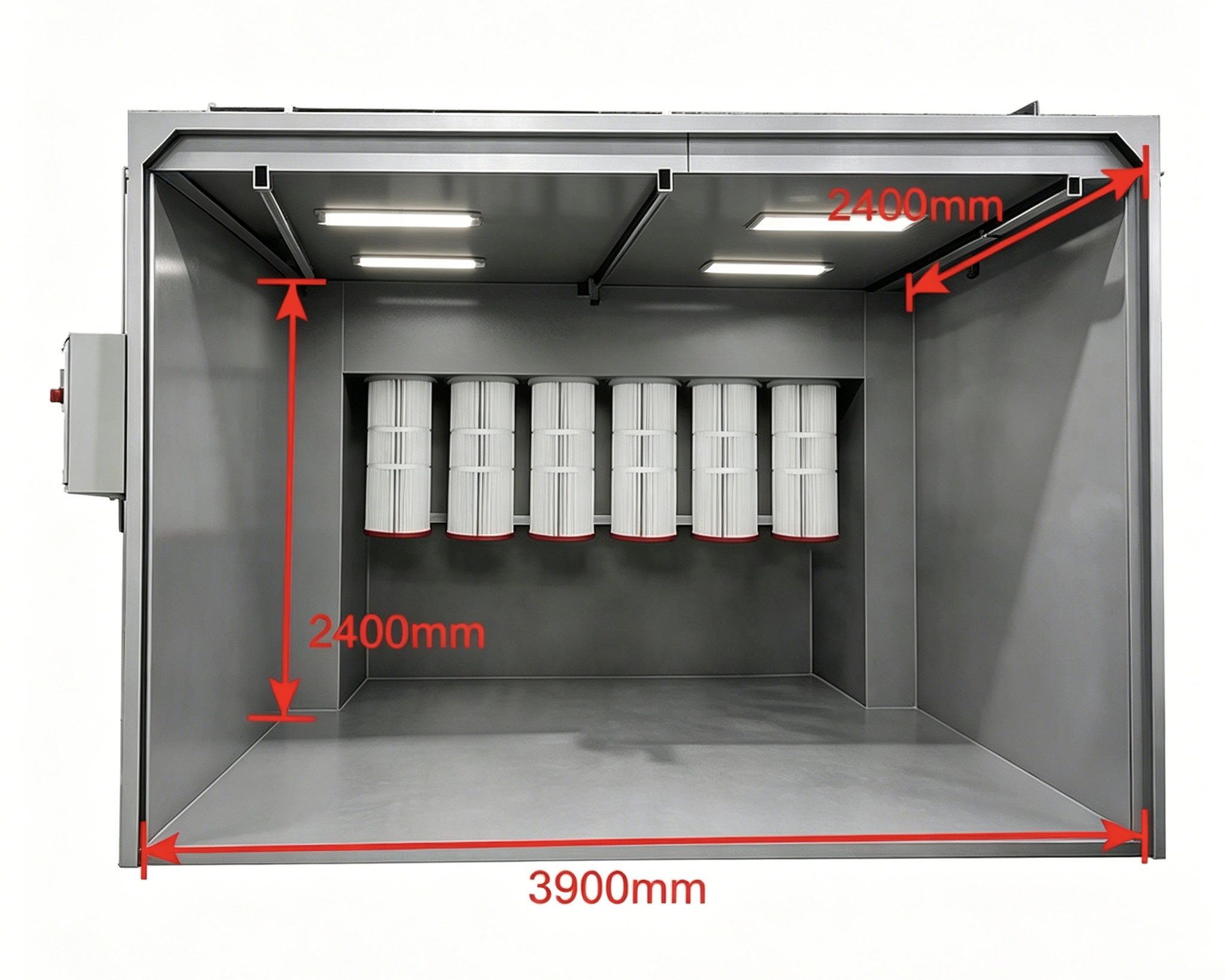

| Operating dimensions | 3900width*2400depth*2400Height(mm) |
| Overall Dimension | 4013width*2713depth*3347Height(mm) |
| Power Supply | Electric, 5.5kw |
| Voltage | 380V220V, 50-60Hz (custom voltage as local) |

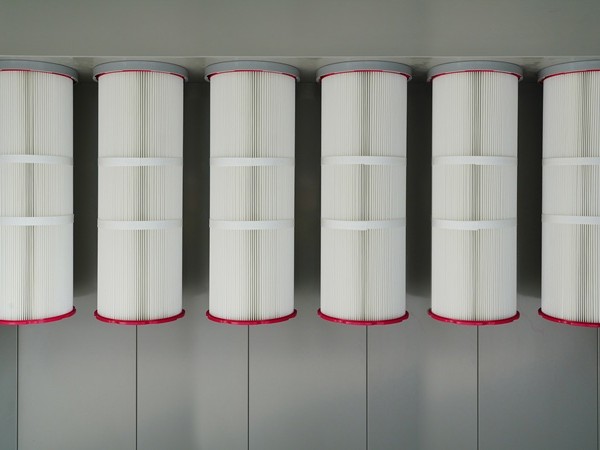

| Filters spec | Polyester, 6PCS, Size(Dia325*H900mm) |
| Air consumption | 8000m3/h |
| Fan motor Power | 5.5kw |
Why choose COLO Powder Coating Booth?
1. Each of our powder coating booth is built with durable material and premium components, such as 0.1 um polyester cartridge filters for absorbing superfine powders, sturdy cold-rolled plate, etc. The cold-rolled plate with higher strength and surface finish, is a kind of material that prolongs service life and looks better.
2. COLO has more than 10 years of production experience in the powder coating industry, we have own factory and professional research group to independently developed powder coating booth series products, our sales team sells COLO products directly without middlemen, so the price is more favorable.
3. We have various powder coating booths: basic filter powder coating booth for small scale production, walk-in powder coating booth for large and bulky parts, tunnel type powder coating booth for long shaped workpiece, cyclone powder coating booth for fast color change in powder coating line. We also provide customized services for our customers to design unique powder coating spray booths for any production needs.
