The model COLO-1517 powder coating spray booth with cartridge filter recovery system is exactly the basic booth system, inexpensive, dependable and durable, an effective usage of the coating material and the compliance with environment standards contribute to the high performance.

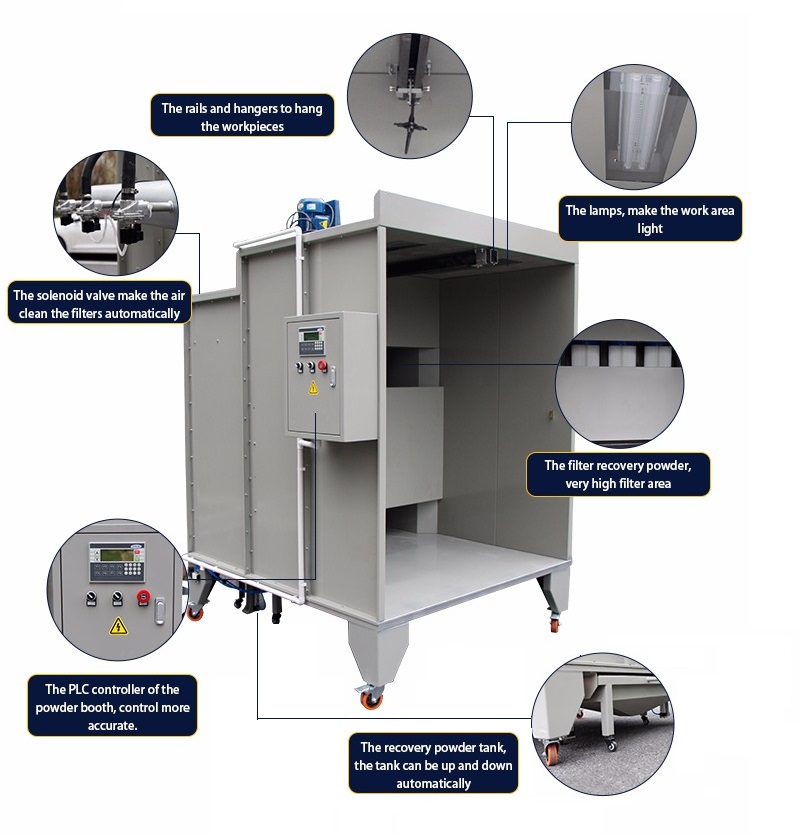

Cartridge powder coating spray booth incorporates a highly efficient filter cleaning system, interval controlled by automatic pulse-jet device. The filter material is imported quality polyester, high precision and long life span. Innovative industrial design of powder coating booth maximizes the powder recovery.
1. A high-performance fan efficiently circulate air with low noise and less energy.
2. 0.1 Micron high-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
3. Powder-coated steel constructed booth is corrosion resistant for longer service life.

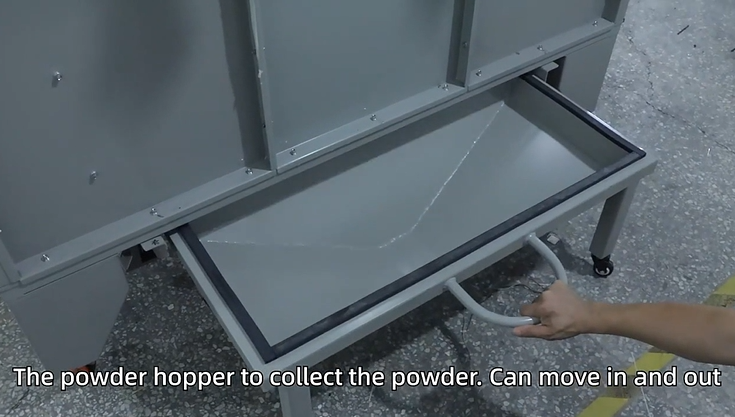

4. A removable powder hopper at booth bottom simplifies the utilization of recovery powders.
6. A user-friendly PLC panel integrates all functions, such turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop etc.
Operating dimensions: | 1500width*1500depth*1700Height(mm) |
Weight: | 480kg |
Power Supply: | Electric, 2.2kw |
Voltage: | 380V220V, 50-60Hz (custom voltage as local) |
Filters spec: | Polyester, 3PCS, Size(Dia325*H900mm) |
Air consumption: | 4000m3/h |
Fan motor Power: | 2.2kw |
COLO series powder coating booths are versitile and can be configured to meet a wide variety of application needs, ranging in size from small hardware accessories, vehicle wheels, to large roll-in pieces. The design requires you less efforts to the job, and the level of customization is exceptional. No other cartridge collection booth is as easy to operate or offers you this level of quantity and performamce.
