COLO-2315
COLO

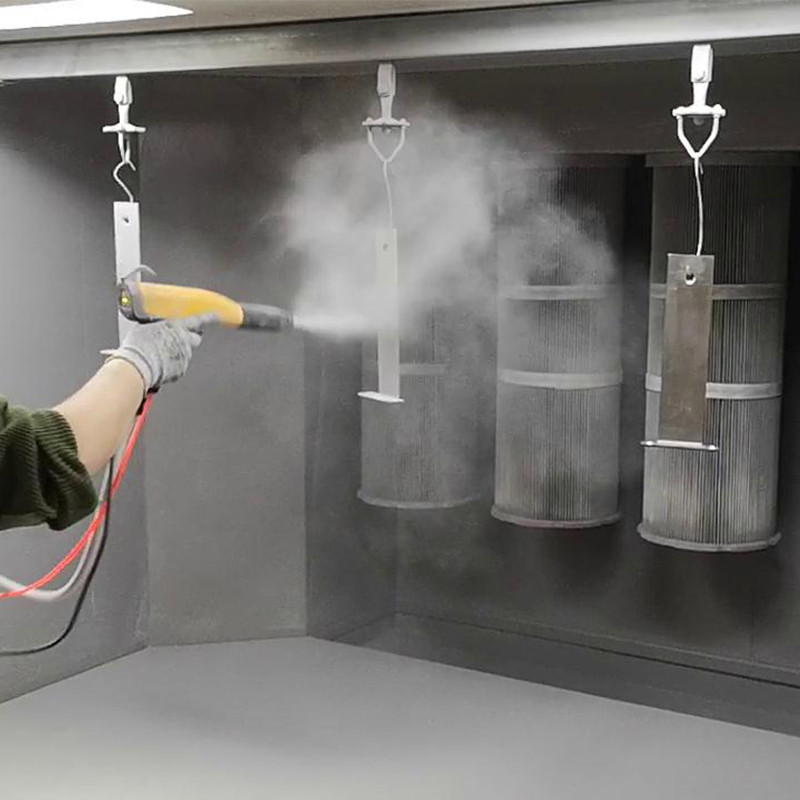

Manual powder coating spray booth is suitable for batch metal parts and crucial for high-quality powder coating finish, COLO-2315 powder coating room is designed to meet specific requirements of powder coating. This is an open-face room with filter recovery system, suitable for manual applications. Working size of this powder coating room (width2300*height1500mm*depth1500mm) is a common and efficient size, achieveing "batch" production without overspray reclamation.
Booth body is made of powder coated steel, features durable, sturdy and easy-cleaning.
High-precision filters made of 100% polyester is for superior filtration performance, longer filter life.
Simplified cartridge filters features quick-release type, easy to remove and replace.
Powerful extraction reduce compressed air consumption, ensures a safe and clean working environment.
High-quality manufacturing and factory testing for optimum performance and reliability.
Cartridge Filters
PLC Control
Fan Motor
| Model | COLO-2315 |
| Operating dimensions | 2300width * 1500depth * 1500Height(mm) |
| Weight | 580kg |
| Power supply | Electric, 4kw |
| Voltage | 380V220V, 50-60Hz (custom voltage as local) |
| Filters spec | Polyester, 4PCS, Size(Dia325 * H900mm) |
| Air consumption | 6600m3/h |
| Fan motor power | 4kw |
A lot of oversprayed powder is produced during powder coating process, it will cause serious pollution to the environment if not take measures. Powder coating room is an essencial part in powder coating process, which can collect the oversprayed powder.
The booth fans draw air through filters, air flow decreases and the negative pressure rises within the air handler. A timer device activates a system of air purging valves that shake off the accumulated powder in filters to ensure long filters' service life. Pneumatic pulsing system with adjustable pulse time will assist in removing the powder from the filter. The air is clean enough when discharged back to the environment.
Manual powder coating spray booth is suitable for batch metal parts and crucial for high-quality powder coating finish, COLO-2315 powder coating room is designed to meet specific requirements of powder coating. This is an open-face room with filter recovery system, suitable for manual applications. Working size of this powder coating room (width2300*height1500mm*depth1500mm) is a common and efficient size, achieveing "batch" production without overspray reclamation.
Booth body is made of powder coated steel, features durable, sturdy and easy-cleaning.
High-precision filters made of 100% polyester is for superior filtration performance, longer filter life.
Simplified cartridge filters features quick-release type, easy to remove and replace.
Powerful extraction reduce compressed air consumption, ensures a safe and clean working environment.
High-quality manufacturing and factory testing for optimum performance and reliability.
Cartridge Filters
PLC Control
Fan Motor
| Model | COLO-2315 |
| Operating dimensions | 2300width * 1500depth * 1500Height(mm) |
| Weight | 580kg |
| Power supply | Electric, 4kw |
| Voltage | 380V220V, 50-60Hz (custom voltage as local) |
| Filters spec | Polyester, 4PCS, Size(Dia325 * H900mm) |
| Air consumption | 6600m3/h |
| Fan motor power | 4kw |
A lot of oversprayed powder is produced during powder coating process, it will cause serious pollution to the environment if not take measures. Powder coating room is an essencial part in powder coating process, which can collect the oversprayed powder.
The booth fans draw air through filters, air flow decreases and the negative pressure rises within the air handler. A timer device activates a system of air purging valves that shake off the accumulated powder in filters to ensure long filters' service life. Pneumatic pulsing system with adjustable pulse time will assist in removing the powder from the filter. The air is clean enough when discharged back to the environment.
