Manual Powder Coating Oven with Top Track

- Operating Dimension: Width1200*Height1700*Depth3200mm
- Electirc energy, available for gas/diesel/LPG heating.
- High temperature rapid curing
- Pre-assembled, test run and data logged
- Forced air with a powerful circulation fan

Quantity:
  • W1200*H1700*D3200mm (COLO-1447)
  • COLO

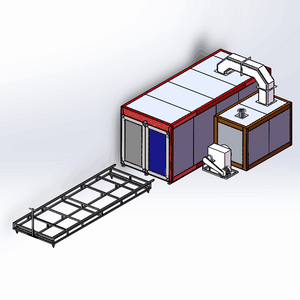

COLO-2447 Manual Powder Coating Oven with top Track


This manual powder coating oven with top track is designed for continuous batch production. The installed conveyor can be supplied or made by customer.

Heated by electricity, the powder coating oven is easy to use and environmental-friendly. With 10 years design and build experience, COLO powder coating oven features repeatable performance coupled with bugdet-saving cost.



manual powder coating oven

Powder Coating Oven Features


Heating Insulation

Constructed with 100mm thick rockwool interlayer performs least heat dropping, with galvanized innerwall that is heat-resistent and durable color steel outwall for long time use.


Forced Air

Am energy-saving fan cycles hot airs in the chamber making uniform heat distribution with a temperature stability, in order to obtain a quality finish with even gloss and consistent colour.


Precise Control

A simple PLC controllor provides high precision heating process, it offers all the features you need, allows you accurately to set the desired temperature and time, as well as the start of fan working. The controller also includes a variety of safety devices, such as alarm light and emergency stop buttons, etc.



Effective Heating

Installed with electric heating tubes, 15~30 minutes reaching the required temperature 180-250°C, supply with clean air. Also can be designed for gas/diesel/LPG heating.



Powder Coating Batch Oven Specifications


Model COLO-2447
Operating Dimension Width1200*Height1700*Depth3200mm
Overall Dimension Width1407*Height2203*Depth3424mm
Power Supply Electric, 40kw
Voltage/Frequency 220V/380V 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 2.2kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months


How powder coating oven works?


Once powder coating is applied to a surface via a spray gun, it must be cured to complete the process. Curing ovens expose the powder to extremely high temperatures, causing the molecules to melt and chemically react with one another, forming a high-molecular weight polymer with a network structure. The resulting finished polymer is extremely hard and durable. Powder coating oven can be electric or gas/diesel/LPG powered, all achieve the same results. We can design and build Powder Coating Oven to meet specific customer requirements
