- Operating Dimension: Width1500*Height1650*Depth4500mm
- Electirc energy, available for gas/diesel/LPG heating.
- 100mm thick rockwool insulation board
- Pre-assembled, test run and data logged
- Forced air with a powerful circulation fan

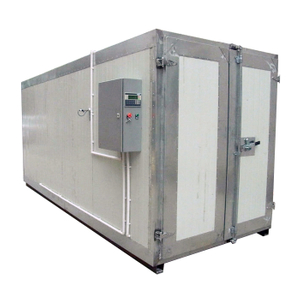

This powder coating furnace with 4.5m depth is ideal for workparts with bigger length, such as frames, profiles, heated by electricity, while a 3kw circulation fan ensures uniform heat distribution through the entire dimension. It is also recommended to design with gas/diesel/LPG heating.
A simple PLC controllor provides high precision heating process, it offers all the features you need, allows you accurately to set the desired temperature and time, as well as an easy start of fan working. Once the curing time arrive, the oven will stop heating automatically. The controller also includes a variety of safety devices, such as alarm light and emergency stop buttons, etc.
A powerful fan cycles hot airs in the chamber making uniform heat distribution with a minimal temperature difference, in order to obtain a quality finish with even gloss and consistent colour.
Configured 100mm thick rockwool interlayer performs least temperature dropping, with galvanized innerwall that is heat-resistent and durable color steel outwall for long time use.
Supply with standard trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts. Special trolley can be designed as customer required. Doors can be designed to open one side or two sides(pass through).
|Operating Dimension||Width1500 * Height1650 * Depth4500mm|
|Overall Dimension||Width1800 * Height2050 * Depth4800mm|
|Power Supply||Electric, 54kw|
|Voltage/Frequency||220V/380V 50/60Hz (voltage can be custom as local)|
|Warm-up Time||15-30min (180°C)|
|Temperature Stability||<± 3-5°C|
|Circulation/Air Flow ||Vertical, Varaible through holes on the walls|
|Model||Operating Size||Total Power||Motor Power|
|COLO-1688||Width845 * Height1600 * Depth845mm||6.5 kw||0.55kw|
|COLO-1118||Width1000 * Height1000 * Depth1800mm||18 kw||0.75kw|
|COLO-1515||Width1500 * Height1500 * Depth1500mm||18 kw||0.75kw|
|COLO-1864||Width1600 * Height1800 * Depth1400mm||18 kw||0.75kw|
|COLO-1732||Width1650 * Height1700 * Depth3200mm||48 kw||1.5kw|
|COLO-1645||Width1500 * Height1650 * Depth4500mm||54 kw||3kw|
Each of our powder coating curing furnace is built with advanced technology, constructed with durable material and premium components to maximize lifespan and ensure superior heating performance. We are more than 10 years manufacturer of designing and manufacturing powder coating ovens exported to worldwide. Supply a variety of curing ovens with standard sizes, also support for custom to design as your requirements, oversea installation, commissioning reasons.
