The wheel powder coating oven is a closed insulation space that constructed by rockwool board, taking use of electric energy that creates hot air to increase the internal temperature, whlle an forced air fan cycles hot air through the entire dimension ensures even temperature. Powder coated alloy wheels will get a quality finish with consistant gloss and colors.
COLO-1864 Electric powder coating oven provides batch curing of alloy wheels, a hot selling model with affordale price, reliable performance and effortless maintenance. Factory direct sale powder coating oven can be designed by precise requirement if you need other sizes or other configurations, such as gas/diesel fired curing ovens.
A simple PLC controllor provides high precision heating process, it offers all the features you need. The display allows you accurately to set the desired temperature and heating time, as well as an easy start of fan working. Once the curing time arrive, the oven will stop heating automatically.
Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.

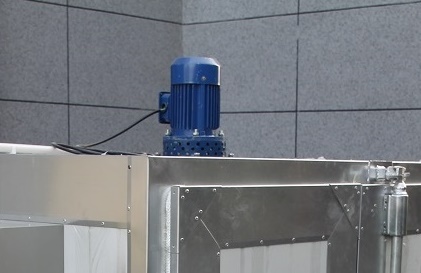

The circulation fan cycles hot air to make even heat distribution, minimizes temperature difference, so that to make powder coated parts be cured with consistent color and gloss.

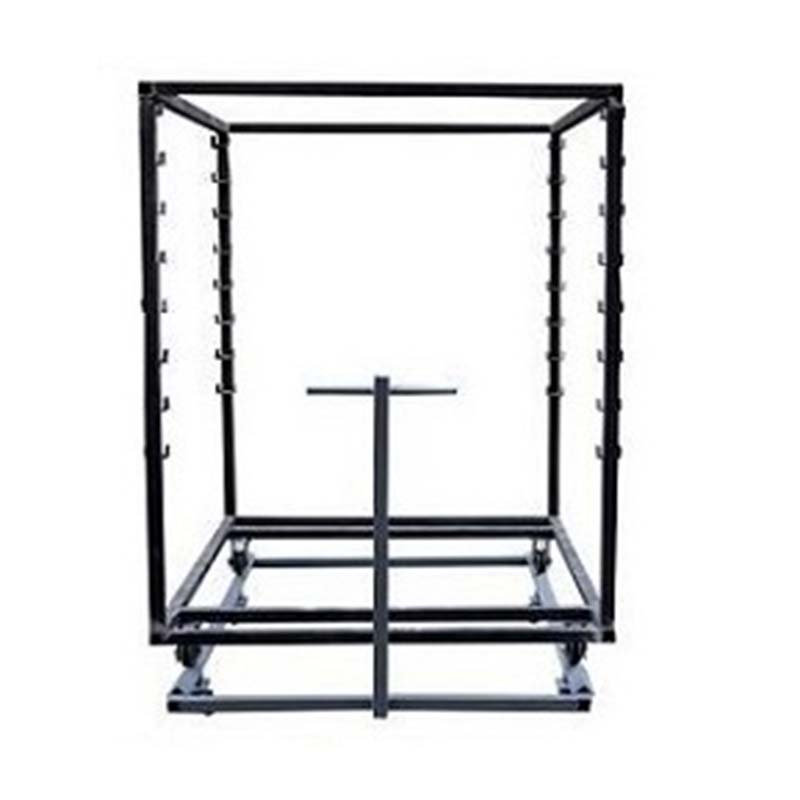

Trolley and Frames
Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts
|Operating Dimension||Width1600 * Height1800 * Depth1400mm|
|Overall Dimension||Width1900 * Height2200 * Depth1700mm|
|Power Supply||Electric, 18kw|
|Voltage/Frequency||220V/380V 50/60Hz (voltage can be custom as local)|
|Warm-up Time||15-30min (180°C)|
|Temperature Stability||<± 3-5°C|
|Ventilation Performance ||805-1677m3/h|
|Circulation/Air Flow ||Vertical, Varaible through holes on the walls|
|Model||Operating Size||Total Power||Motor Power|
|COLO-1688||Width845 * Height1600 * Depth845mm||6.5 kw||0.55kw|
|COLO-1118||Width1000 * Height1000 * Depth1800mm||18 kw||0.75kw|
|COLO-1515||Width1500 * Height1500 * Depth1500mm||18 kw||0.75kw|
|COLO-1864||Width1600 * Height1800 * Depth1400mm||18 kw||0.75kw|
|COLO-1732||Width1650 * Height1700 * Depth3200mm||48 kw||1.5kw|
|COLO-1645||Width1500 * Height1650 * Depth4500mm||54 kw||3kw|
Each of our electrostatic powder coating paint oven is built with advanced technology, constructed with durable material and premium components to maximize lifespan and ensure superior heating performance. We are more than 10 years manufacturer of designing and manufacturing powder coating ovens exported to worldwide. Supply a variety of curing ovens with standard sizes, also support for custom to design as your requirements, oversea installation, commissioning reasons.
