COLO-1688 small powder coat oven makes efficient use of working space, takes electric energy as heating source, could meet small to mid-size batch powder curing requirements. Circulation fan blends air for faster temperature rise and uniform heating. These ovens ship with the enclosure and elements fully assembled, only need to connect the fan system and controls to start production.
Oven Wall Material
100mm thickness rock wool insulation interlayer with galvanized steel inner wall and powder coated steel outer wall optimizes the heat preservation effect.

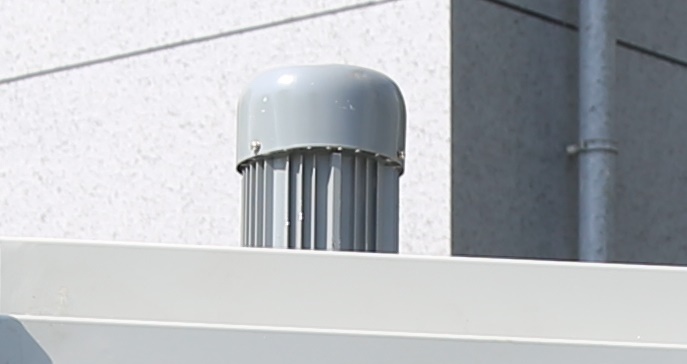

0.75kW circulation fan recycle air for rising temperature faster and uniform heating in oven chamber, results a quality finish with consistent gloss and color.
Built-in shelves are designed for hanging workparts, features convenient for spraying heavy and bulky parts, which is a labor-saving device.

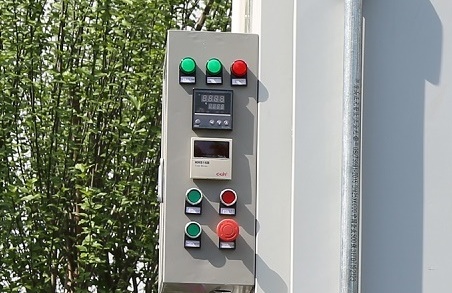

The control panel controls all functions, supports for setting and adjusting required parameters precisely to get a wonderful powder coating curing effect.
|Operating Dimension||Width845 * Depth845 * Height1600 mm|
|Overall Dimension||Width1400 * Depth1100 * Height2200 mm|
|Power Supply||Electric, 6.5kw|
|Voltage/Frequency||110V/220V, 50-60Hz (voltage can be customized as local)|
|Warm-up Time||15-30min (180°C)|
|Temperature Stability||<± 3-5°C|
|Ventilation Performance ||805-1677m3/h|
|Circulation/Air Flow ||Vertical, Varaible through holes on the walls|
|Model||Operating Size||Total Power||Motor Power|
|COLO-1688||Width845 * Height1600 * Depth845mm||6.5 kw||0.55kw|
|COLO-1118||Width1000 * Height1000 * Depth1800mm||18 kw||0.75kw|
|COLO-1515||Width1500 * Height1500 * Depth1500mm||18 kw||0.75kw|
|COLO-1864||Width1600 * Height1800 * Depth1400mm||18 kw||0.75kw|
|COLO-1732||Width1650 * Height1700 * Depth3200mm||48 kw||1.5kw|
|COLO-1645||Width1500 * Height1650 * Depth4500mm||54 kw||3kw|
