- Operating Size: W1600*H1800*D1400mm
- Electric heating, clean for parts and condition
- Force air by a circulation fan
- PLC control precise temperature
- 100mm thickness rockwool insulation board
- Supply with trolleys for easy loading parts

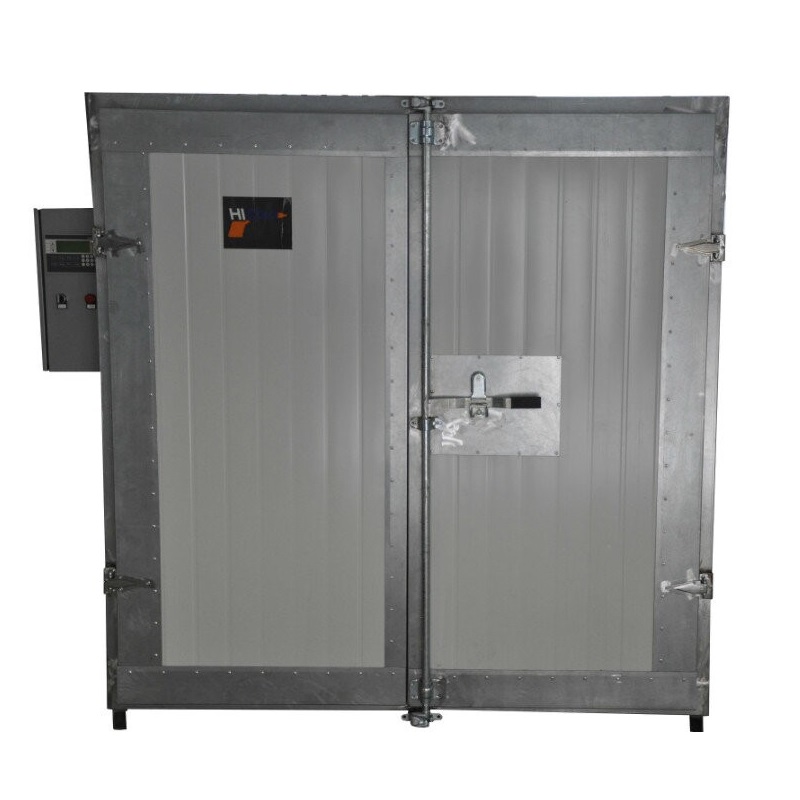

Electric powder coating oven features economic and easy to use, and keeps the workshop environmental friendly. Combines airflow arrangement which provides uniform air distribution along the entire length of the work chamber resulting in quality cured finishes and optimum cure cycles. COLO-1864 is the hot selling mode, whose operating size meets most workparts applications.
A simple PLC controllor provides high precision heating process, it offers all the features you need. The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically. The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.
Bottom of this electric powder coating oven is installed with electric heating tubes with great thermal conductivity to created hot air and rapidly raise temperature to the required curing, then circulation fan cycles the hot air and ensures parts to be heated evenly.
Oven Wall Materials
Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.
Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.
|Operating Dimension||Width1600 * Height1800 * Depth1400mm|
|Overall Dimension||Width1900 * Height2200 * Depth1700mm|
|Power Supply||Electric, 18kw|
|Voltage/Frequency||220V/380V 50/60Hz (voltage can be custom as local)|
|Warm-up Time||15-30min (180°C)|
|Temperature Stability||<± 3-5°C|
|Ventilation Performance ||805-1677m3/h|
|Circulation/Air Flow ||Vertical, Varaible through holes on the walls|
|Model||Operating Size||Total Power||Motor Power|
|COLO-1688||Width845 * Height1600 * Depth845mm||6.5 kw||0.55kw|
|COLO-1118||Width1000 * Height1000 * Depth1800mm||18 kw||0.75kw|
|COLO-1515||Width1500 * Height1500 * Depth1500mm||18 kw||0.75kw|
|COLO-1864||Width1600 * Height1800 * Depth1400mm||18 kw||0.75kw|
|COLO-1732||Width1650 * Height1700 * Depth3200mm||48 kw||1.5kw|
|COLO-1645||Width1500 * Height1650 * Depth4500mm||54 kw||3kw|
Each of our electrostatic powder coating paint oven is built with advanced technology, constructed with durable material and premium components to maximize lifespan and ensure superior heating performance. We are more than 10 years manufacturer of designing and manufacturing powder coating ovens exported to worldwide. Supply a variety of curing ovens with standard sizes, also support for custom to design as your requirements, oversea installation, commissioning reasons.
