COLO

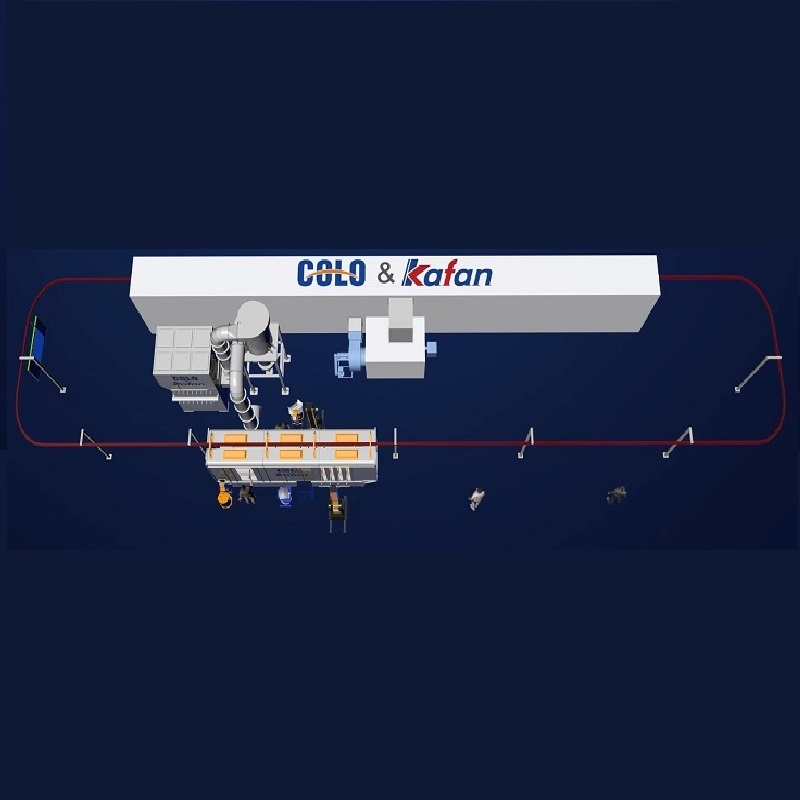

COLO compact powder coating line is mainly adapt to automatic powder coating productions. Includes manual and automatic powder coating gun, powder coating reciprocators, mono cyclone powder spray booth and powder curing oven. This powder coating line does not occupy much space which features more economic.
Conveyor system transports workpiece directly into the powder coating system. This powder coating system includes powder coating reciprocator, automatic and manual spray gun, central control cabinet. Manual powder coating gun could also be used in some manual touch-up jobs.

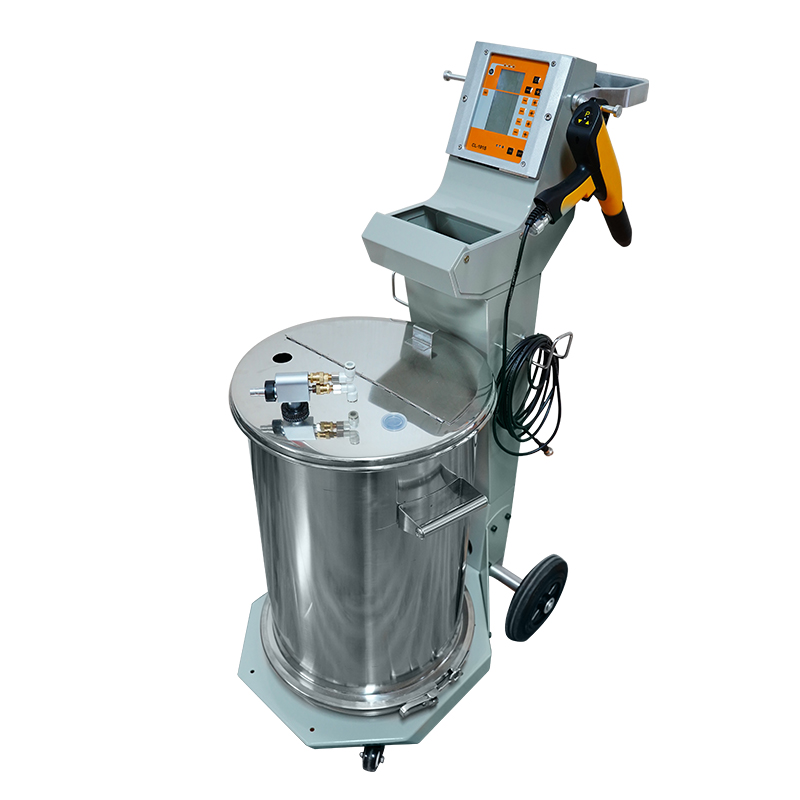

1. COLO-191S controller with digital valve control technology could adjust parameters precisely.
2. There are 3 pre-set application modes, also could store 20 personalized application programs.
3. The lightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.
4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.
5. Auto spray guns are worked together under a central control cabinet, which sets all processing parameters conveniently.
1. COLO-2200D powder coating reciprocator gives more gentle and accurate movement, increases uniformity and quality of continuous powder coating jobs.
2. Speed and stroke length could be set on PLC controller touch screen, supports to store 20 programs.
3. Japanese imported frequency convertor with reliability and flexibility which is in order to achieve high quality powder coating.
4. Up to 12 pcs spray gun can be carried with high stability, both applied to powder coating or wet painting.
1. Oversprayed powder is collected together, recyclable powder is feed back to the system and mixed with new powder, unrecyclable and superfine powder is absorbed by filters.
2. Suction and powder recovery systems work perfectly, thus permitting a very reduced powder consumption.
3. High-precsion filters capture the dust 0.1 micron, ensure to discharge only dustless air.
4. Booth bottom is designed with automatic plate turnover device to avoid powder accumulation.
1. Powder coating ovens are built with 100mm rockwool board for good insulation effect.
2. Taking gas/diesel as fuel has high heating rate, temperature reach to 180 ° C in 15-20 minutes.
3. A circulaltion fan makes temperature evenly distribute in chamber to make sure metal doors get uniform heated.
4. Temperature, time and other processing parameters are controlled on the PLC panel.
COLO compact powder coating line is mainly adapt to automatic powder coating productions. Includes manual and automatic powder coating gun, powder coating reciprocators, mono cyclone powder spray booth and powder curing oven. This powder coating line does not occupy much space which features more economic.
Conveyor system transports workpiece directly into the powder coating system. This powder coating system includes powder coating reciprocator, automatic and manual spray gun, central control cabinet. Manual powder coating gun could also be used in some manual touch-up jobs.
1. COLO-191S controller with digital valve control technology could adjust parameters precisely.
2. There are 3 pre-set application modes, also could store 20 personalized application programs.
3. The lightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.
4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.
5. Auto spray guns are worked together under a central control cabinet, which sets all processing parameters conveniently.
1. COLO-2200D powder coating reciprocator gives more gentle and accurate movement, increases uniformity and quality of continuous powder coating jobs.
2. Speed and stroke length could be set on PLC controller touch screen, supports to store 20 programs.
3. Japanese imported frequency convertor with reliability and flexibility which is in order to achieve high quality powder coating.
4. Up to 12 pcs spray gun can be carried with high stability, both applied to powder coating or wet painting.
1. Oversprayed powder is collected together, recyclable powder is feed back to the system and mixed with new powder, unrecyclable and superfine powder is absorbed by filters.
2. Suction and powder recovery systems work perfectly, thus permitting a very reduced powder consumption.
3. High-precsion filters capture the dust 0.1 micron, ensure to discharge only dustless air.
4. Booth bottom is designed with automatic plate turnover device to avoid powder accumulation.
1. Powder coating ovens are built with 100mm rockwool board for good insulation effect.
2. Taking gas/diesel as fuel has high heating rate, temperature reach to 180 ° C in 15-20 minutes.
3. A circulaltion fan makes temperature evenly distribute in chamber to make sure metal doors get uniform heated.
4. Temperature, time and other processing parameters are controlled on the PLC panel.
