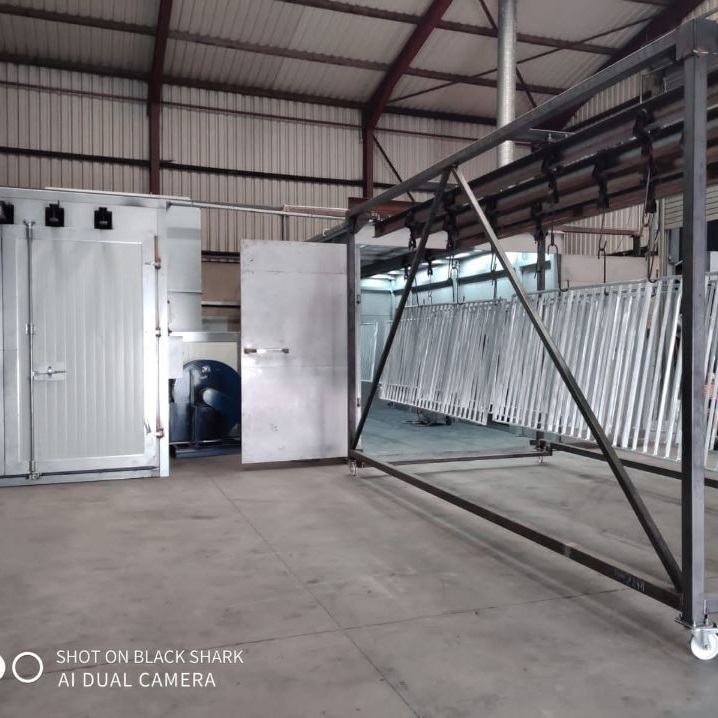

Manual Powder Coating Line for Security Fence

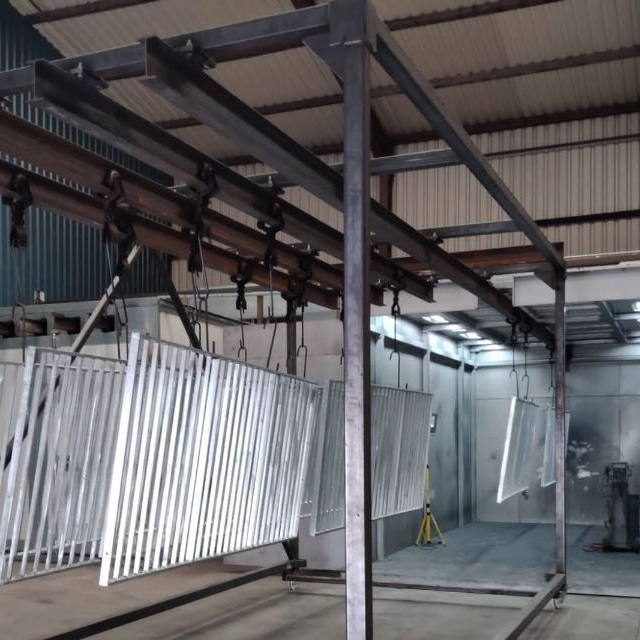

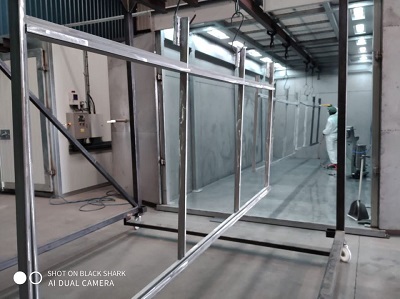

Bulky, heavy parts are loaded onto trolleys and rolled directly into the spray booth. Inside, operators apply powder coating meticulously by hand, ensuring thorough coverage and a superior finish.

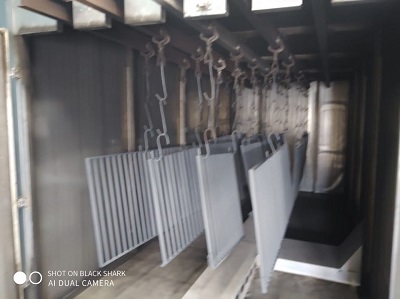

After spraying, the entire trolley system—with coated parts in place—is transferred seamlessly into a batch curing oven. This integrated process eliminates the need for intermediate handling or reloading.

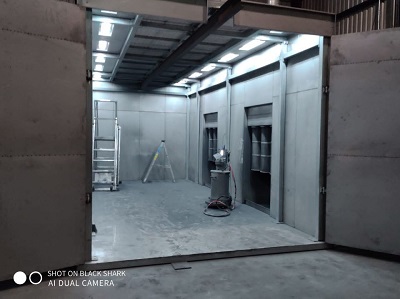

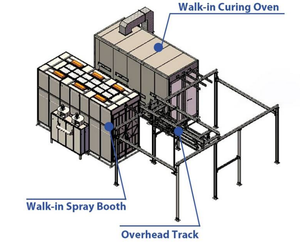

The walk-in powder coating system comprises a cartridge recovery spray booth, a dedicated trolley system, manual professional coating equipment, and a batch curing oven. Its compact design is ideal for limited floor space and suited to batch production demands.
Features of COLO-191S Powder Coating Spray Gun

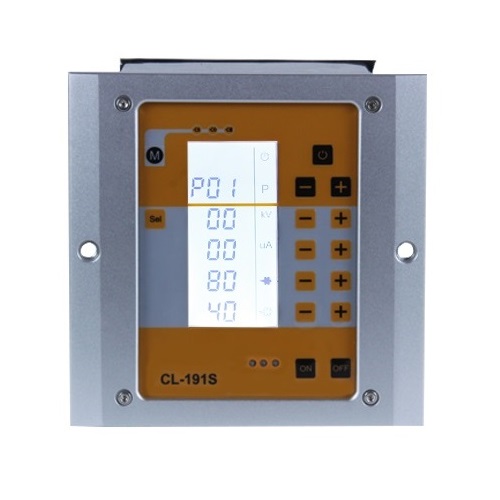

1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.
2. There are 3 pre-set application modes, also could store 20 personalized application programs.
3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.
4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.
- Applies the latest digital technology that delivers accurate adjustment of all processing paramters, kv, amperage, powder flow, atomization.
- The precise regulation of the air pressure to the injector allows users always applying right powders for each application that siginificantly saves powders.
- 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
- Experienced users could create and store 20 kinds of personalized programs which are optimized for their parts and powders.
Powder Coating Gun
- The 100kV cascade ensures strong powder charging and sustained efficiency.
- Quick-release couplings simplify color changes, while the ergonomic, robust design provides exceptional operator comfort and long-term durability.
- Thanks to its exclusive digital control valve technology, the rear of the gun offers romote control to conveniently adjust powder flow and select application programs.
- Comes with full array of nozzle assortment to optimize your spray effect, including flat, round and extension nozzles.

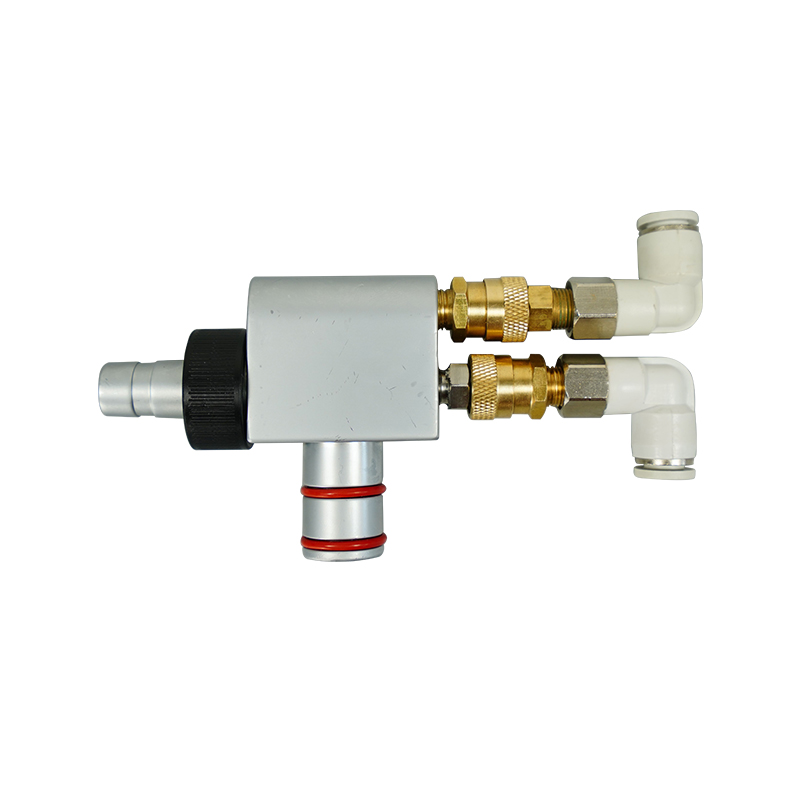

Powder Coating Pump
- Applying more powder to the part with using less compressed air, realizing powder savings.
- Allows to spray big volume of powders to meet special demands and achieve higher first-pass transfer efficiency.
- Delivers more consistent powder output, whose solfter spray patterns results in uniform coverage.
-A plug-in powder injector that can be detached withoutany tools, allows fast cleaning and inspection.
- Made of specially engineered materials with fewer wearing parts to reduce operation cost.

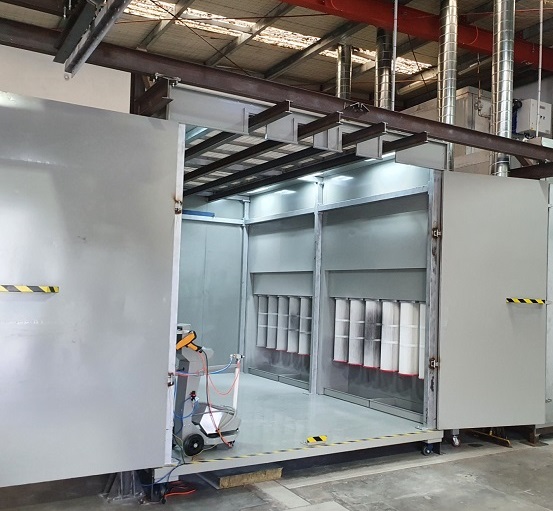

COLO Powder Coating Spray Booth
1. Objects are transported via overhead conveyor system, saves both time and labor.
2. Built-in 12 pcs filters integrated in the booth wall for powder capture and recovery.
3. Engineered with pulse-jetting device to clean filters automatically and extend service life, PLC control the fan working and precisely set the interval of filter cleaning.
4. Big enough inner space allows to powder coating large and batch objects.
5.When you close the spray booth door when sprayingthis walk-in powder spray booth can prevent powder from scattering to protect the environment.
Specifications of Powder Coating Booth
| Inner Size | L7m x W3m x H3 m |
| Opening Size | W3m x H3 m |
| Material | SPCC/t=1.5mm, with door |
| Bottom Frame | 4# square tube |
| Booth Inner Frame | 8# square tube |
| Recovery System | Filter Cartridge (16pcs) |

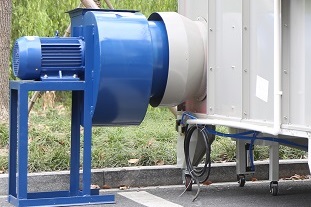

| Fan Motor | 7.5kw, 2sets |
| Air Flow | 9500m3/h |

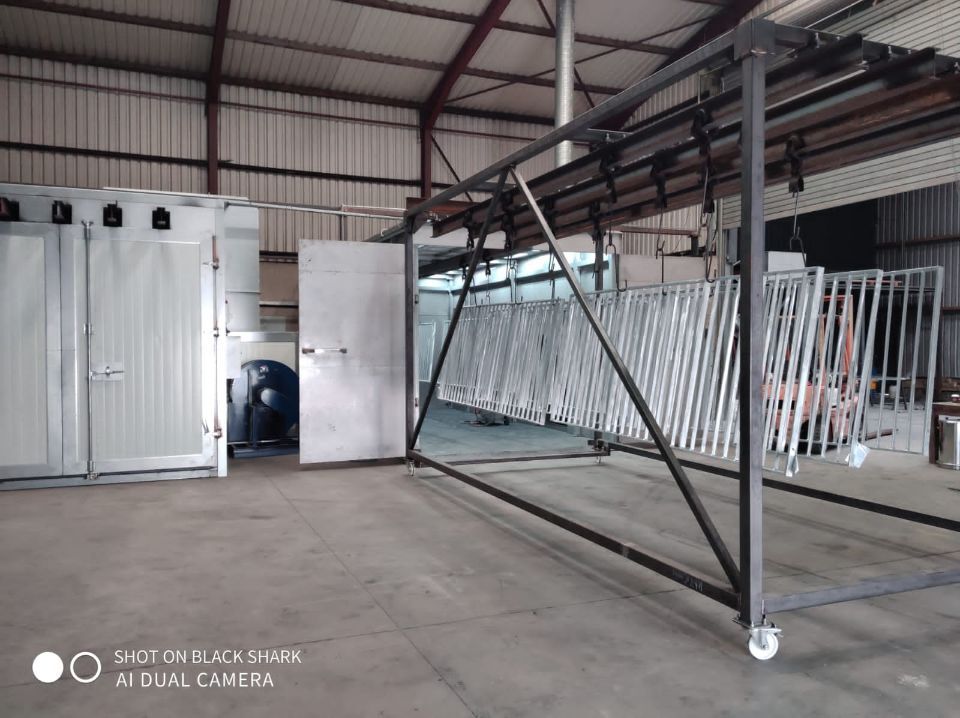

COLO Powder Coating Curing Oven
1. Built with top tracks to connect to powder coating line conveyor.
2. Riello burners that imported from Italy makes heating faster to a required temperature.
3. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.
4. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.
5. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.
Specifications of Powder Coating Curing Oven
| Working Dimension | Width 3m x Height 3m x Depth 7m |
| Insulation Plate | t=100mm |
| Hemming | SGCC/t=1.5mm |
| Bottom Frame | 10# Square Tube |
| Inner Frame | 8# Square Tube |
| Gas Burner | 400,000 cal/h, RIELLO brand |
| Fan Motor | 15kw, 1 set |
| Air Flow | 18000 m3/h |

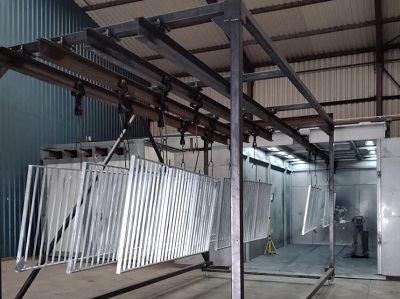

Applications of Compact Powder Coating Painting Line

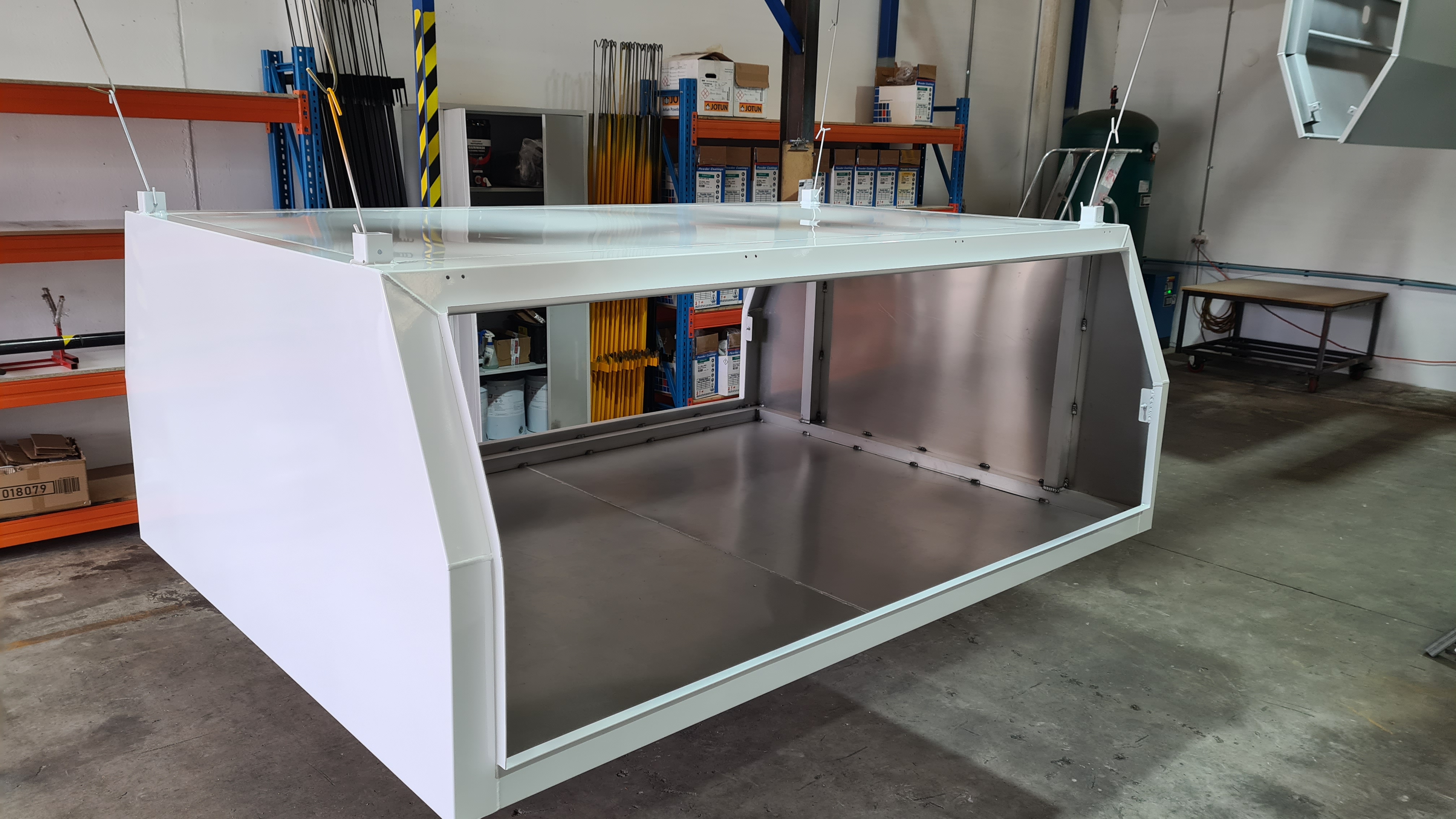

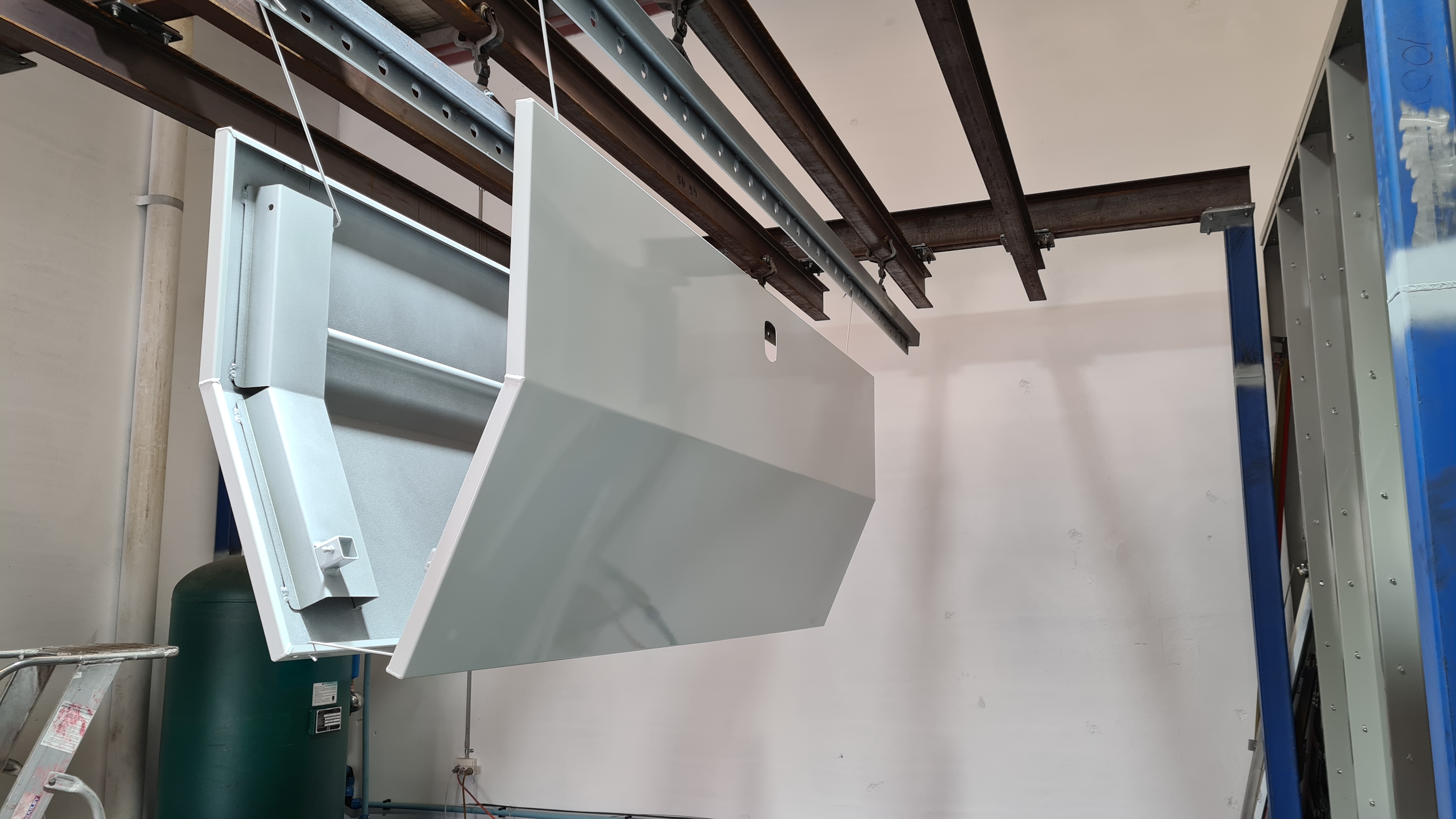

Specially designed for Ireland customer requiring manual powder coating of metal parts such as security fence, aluminum profiles, frames, tubes, etc.
