Manual Powder Coating Line for Batch Steel Frames

Manual Powder Coating Line for Batch Steel Frames

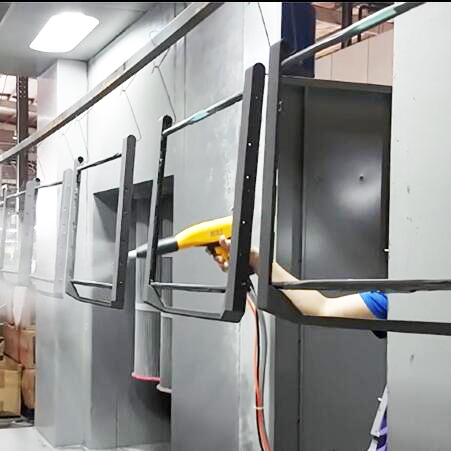

The manual powder coating plant includes powder coating oven and powder spray booth, suitable for continuous batch production of various workparts, such as wheels, frames, profiles, metal shelves, cylinders, etc.

This powder coating plant consists of manual powder coating machine, pass thru type spray booth and gas curing oven with trolley, specially designed for our Malaysia customer for the application of long length workparts who requires batch production with saving budget.

If you need powder coating line products of various sizes, we can customize them according to your needs.

COLO-191S Powder Coating Spray Gun

1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.

2. There are 3 pre-set application modes, also could store 20 personalized application programs.

3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.

4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.

5. Powder coating pump applying more powder to the part with using less compressed air, realizing powder savings.

6.The pump allows to spray big volume of powders to meet special demands and achieve higher first-pass transfer efficiency.

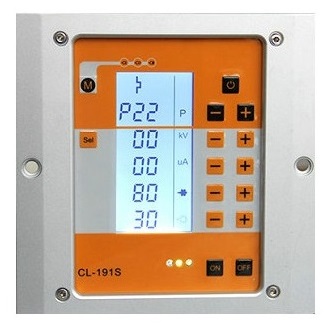

Powerful Controller

Powder Coating Gun

Powder Coating Pump

Pass Thru Powder Coating Spray Booth Features

1. Top track of powder coating booth could be connected to the powder coating line conveyor to achieve continuous production.

2. This booth is designed with dual working station that operators could coat both sides.

3. Powerful fan supply efficienct wind, reduces air consumption with low noise level.

4. PLC control the fan working and precisely set the interval of filter cleaning.

PLC Control Unit

Cartridge filters

Cartridge filters

Pass Thru Powder Coating Spray Booth Specifications

Trolley Powder Curing Oven Features

1. Using PLC system to control all heating process, accurate and conveninet.

2. Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.

3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.

4. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.

5. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more.

PLC Controller

Rockwool Board

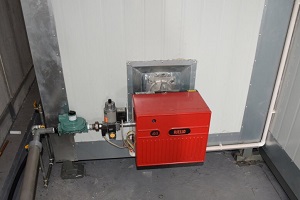

Riello Burner

Trolley Powder Curing Oven Specifications
