Aluminium Powder Coating Plant Manufacturer

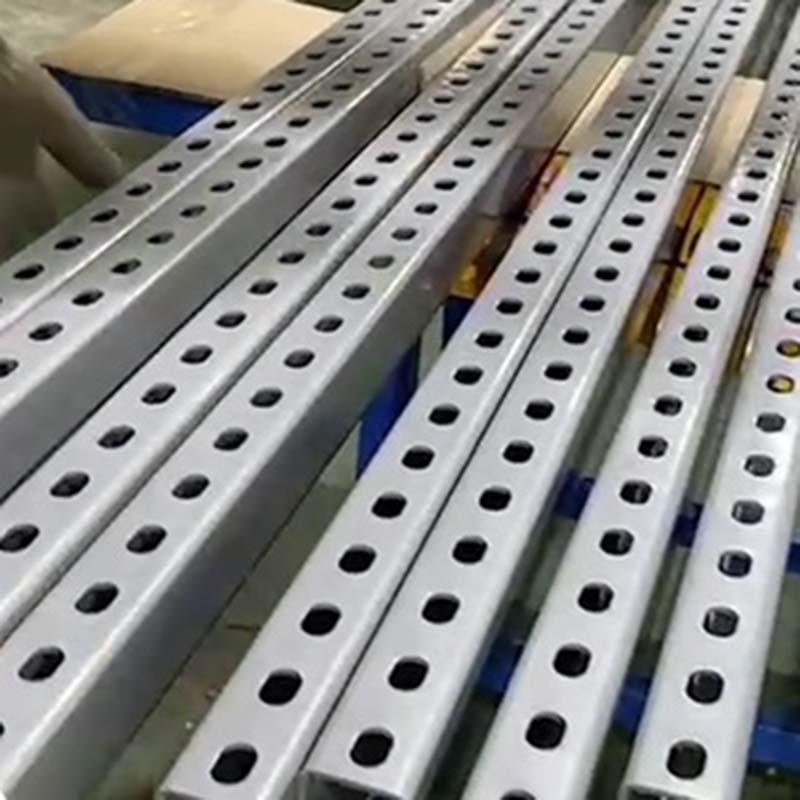

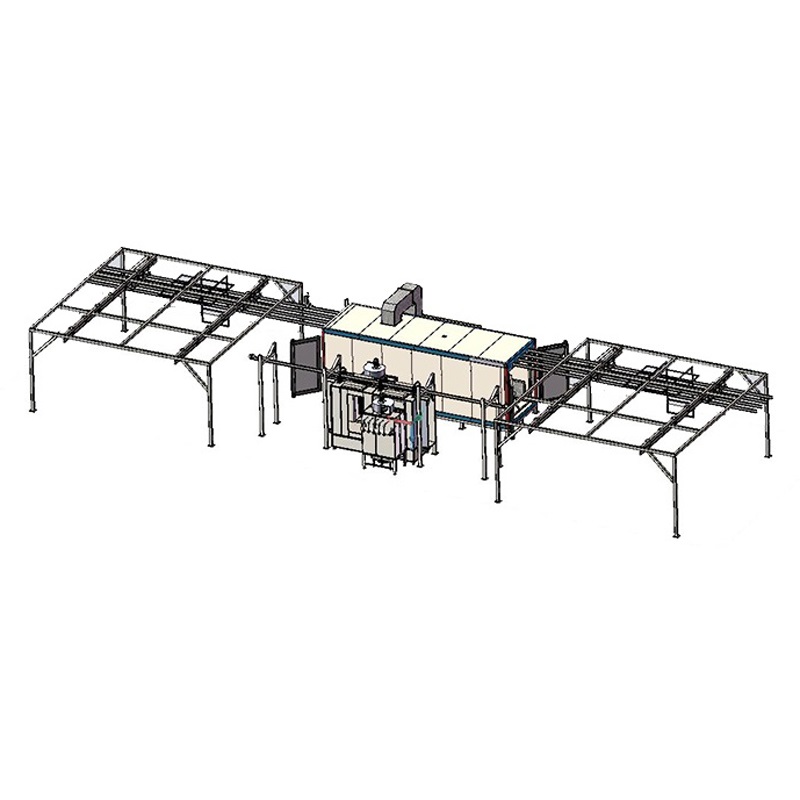

Aluminium Powder Coating Plant including a manual horizontal-pull track system, professional powdercoating gun, pass thru powder spray booth and track powder coatingoven.Economically, easily, efficiently start a manual powder coatingsolution for aluminum profile or other heavy, long length workparts.

COLO-191S Professional Powder Coating Machine

COLO-191S powder coating equipment utilize the most advanced technology that allows a precise regulate of pnuematic parameters by digital, which lead to smooth powder flow and a uniform surface. Coating thickness can be controlled with this technology. Besides, the flexible adjusting of kv, amperage, air makes it easy to penerate deep corner with a satisfied finish. A ideal tool for powder coating profiles.

Configuration & Features

1) 0-100kv Voltage adjustable, powerful and long lasting use

2) Digital precise adjustment of powder output and supplementary air

3) Three presets programs for panels,complicated shape parts and repair coating jobs.

4) Create and store 20 personalized application coating programs

5) Lightweight spray guns with full array of nozzle assortment.

6) Fluidized Hopper Feed -60 pounds powder capacity

7) Field tested and proven to operate in the toughest environments.

COLO Manual Pass Thru Powder Coating Booth

Manual Pass Thru Powder Coating Booth is the best choice for conveyorized coating applications, double working stations allows operators to paint both sides of parts simultaneously. It supports continuous production of a wide range products, such as rims, fire extinguisher, LPG cyclinder, aluminum profiles, window frame, metal doors, etc.

Configurations & Features

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency.

2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.

3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

4. A collection hopper beneath the filter stage ensure the collected overspray powders are clean, and can be easily taken away for recycling.

5. Simple installation - only electrical and air connections are required to start production.

PLC Controller

Cartridge Filter

Fan Motor

Specifications

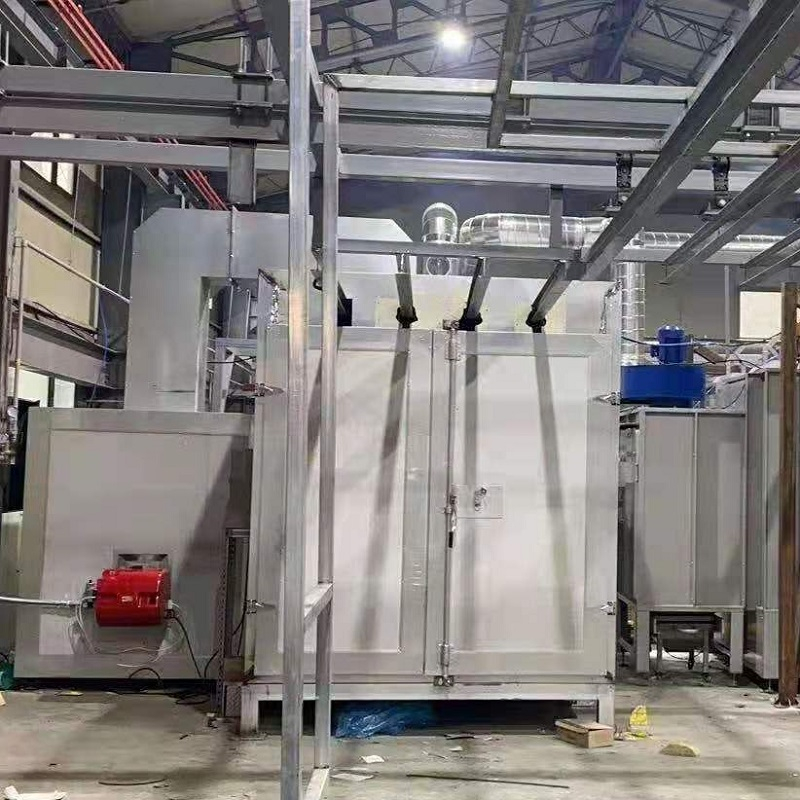

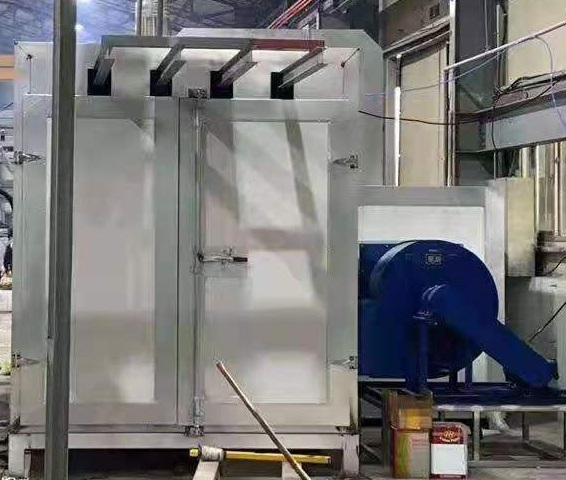

COLO Track Powder Coating Oven

This 7m depth Track Powder Coating Oven is designed for curing longer workparts in batches, such as aluminum profiles. It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense. COLO curing ovens are built with top-quality components that extends to longest lifespan.

Configurations & Features

1. PLC system provides a precise and reliable heating process with easy setting of temperature and time.

2. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.

3. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.

4. 100 mm thickness rockwool board inserted between galvanized steel wall and durable steel skin always keeps the chamber a consistent high temperature with minimum heat loss.

5.  It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.

PLC Controller

Rock Wool

Riello Burnner

Specifications
