COLO-L-M01
COLO

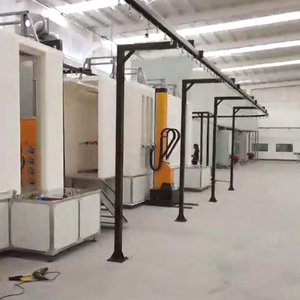

To meet clients' requirement, we have designed manual powder coating line with three conveyorised horizontal lines, which offers the best quality and turnaround for batch powder coating. This powder coating line includes manual powder coating gun, manual powder spray booth and powder curing oven with 3 conveyors is more economical and practical.
1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.
2. There are 3 pre-set application modes, also could store 20 personalized application programs.
3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.
4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.
1. Top track of powder coating booth could be connected to the powder coating line conveyor to achieve continuous production.
2. This booth is designed with dual working station that operators could coat both sides.
3. Powerful fan supply efficienct wind, reduces air consumption with low noise level.
4. PLC control the fan working and precisely set the interval of filter cleaning.
Tunnel Powder Coating Booth Specifications
| Model | COLO-S-3212 |
| Operating Dimensions | Width620*Depth2920*Heght1500mm |
| Overall dimensions | Width1200*Depth3000*Heght2033mm |
| Weight | 500kg |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 4kw |
| Filter Count | 6 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
1. Built with three top tracks to connect to powder coating line convetor.
2. Riello burners that imported from Italy makes heating faster to a required temperature.
3. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.
4. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.
5. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.
Powder Coating Curing Oven Specifications
| Model | COLO-3210 |
| Worksize dimensions | Width1650 x Height1700 x Depth3200 mm |
| Overall dimensions | Width1950 x Height2100 x Depth3600 mm |
| Power supply Electric | 30kw |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 1.5kw |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
