Aluminum Profile Manual Powder Coating Plant for Sale

Aluminum Profile Manual Powder Coating Plant for Sale

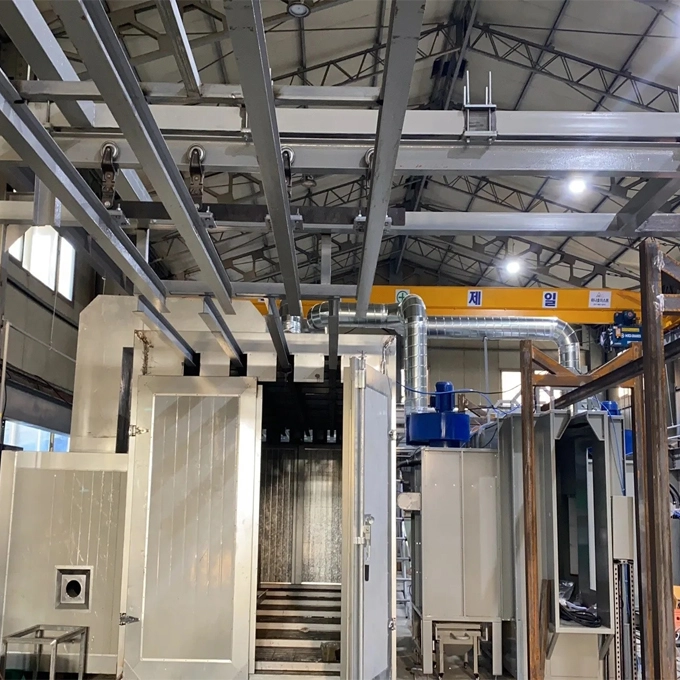

This powder coating line is designed for Korean customer for manual coating of aluminum profiles and other metal parts. It is specially suitable for handle  large, heavy or complex shape parts which requires extreme high requirement manual coating, and meets the requirement of not higher production but lower budget.

COLO-191S Professional Powder Coating Machine

Utilize the most advanced technology that allows a precise regulate of pnuematic parameters by digital, which lead to smooth powder flow and a uniform surface. Coating thickness can be controlled with this technology. Besides, the flexible adjusting of kv, amperage, air makes it easy to penerate deep corner with a satisfied finish. A ideal tool for powder coating profiles.

Configuration & Features

1) 0-100kv Voltage adjustable, powerful and long lasting use

2) Digital precise adjustment of powder output and supplementary air

3) Three presets programs for panels, complicated shape parts and repair coating jobs.

4) Create and store 20 personalized application coating programs

5) Lightweight spray guns with full array of nozzle assortment.

6) Fluidized Hopper Feed -60 pounds powder capacity

7) Field tested and proven to operate in the toughest environments.

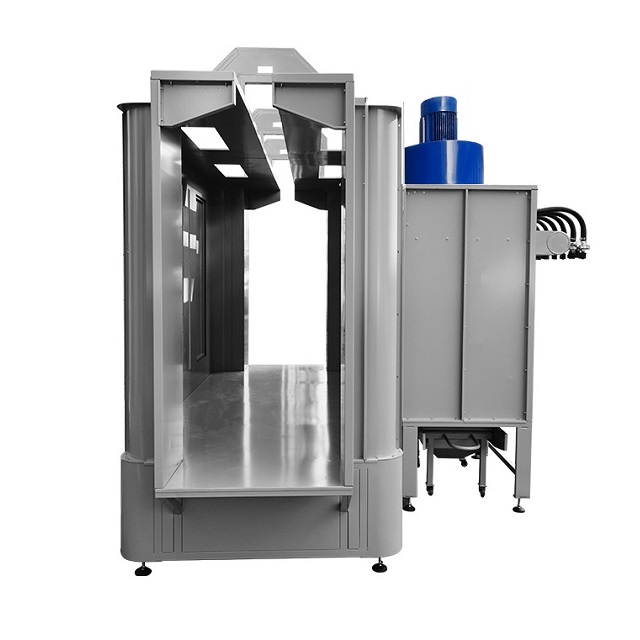

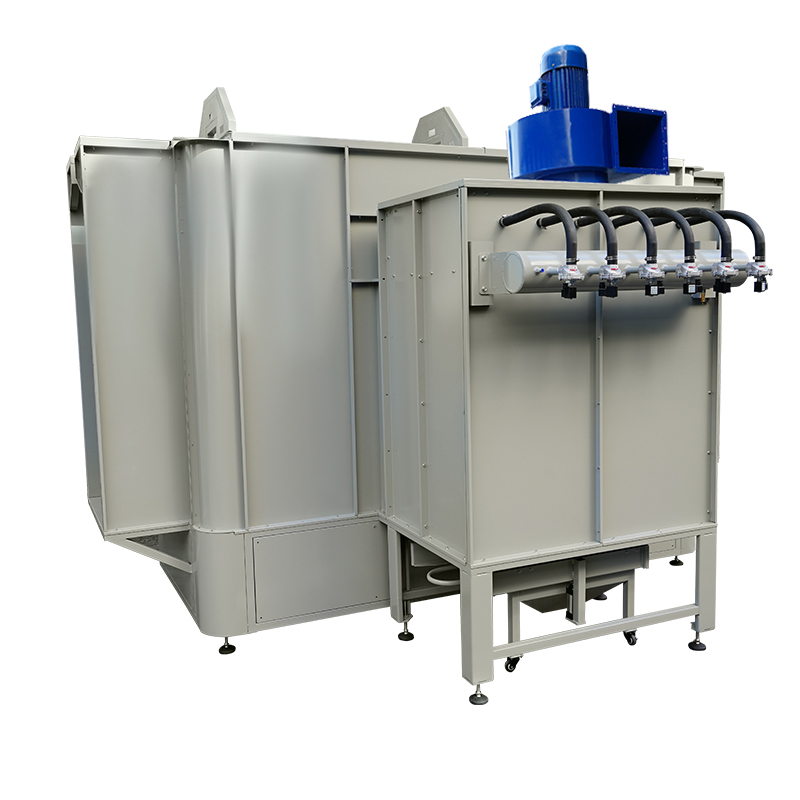

COLO Manual Pass Thru Powder Coating Booth

Dual station powder coating booth, pass thru type installed with overhead conveyer,  allows parts continuously and effectively get coated from both sides. The powder booth fans draw air through filters, oversprayed powders are separated from the air and stick on the filter,  air released outside is dustfree, making your workshop strictly compliant to environment standards.

Configurations & Features

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency.

2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.

3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

4. A collection hopper beneath the filter stage ensure the collected overspray powders are clean, and can be easily taken away for recycling.

5. Simple installation - only electrical and air connections are required to start production.

Plc Controller

Cartridge Filter

Fan Motor

Specifications

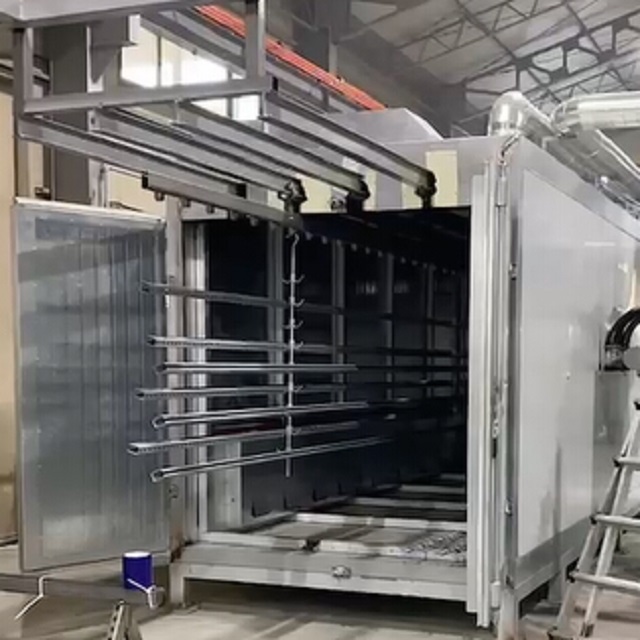

COLO Track Powder Coating Oven

COLO powder coating ovenprovides a high temperature to quickly heat the sprayed workparts, due to the reaction, there will be a durable and quality powder coating finish on the surface. The curing oven consists of circulation fan to ensure hot air is uniformly distributed in the chamber. Oven size, and heating source(electric, diesel/gas) can be custom.

Configurations & Features

1. PLC system provides a precise and reliable heating process with easy setting of temperature and time.

2. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.

3. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.

4. 100 mm thickness rockwool board inserted between galvanized steel wall and durable steel skin always keeps the chamber a consistent high temperature with minimum heat loss.

5.  It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.

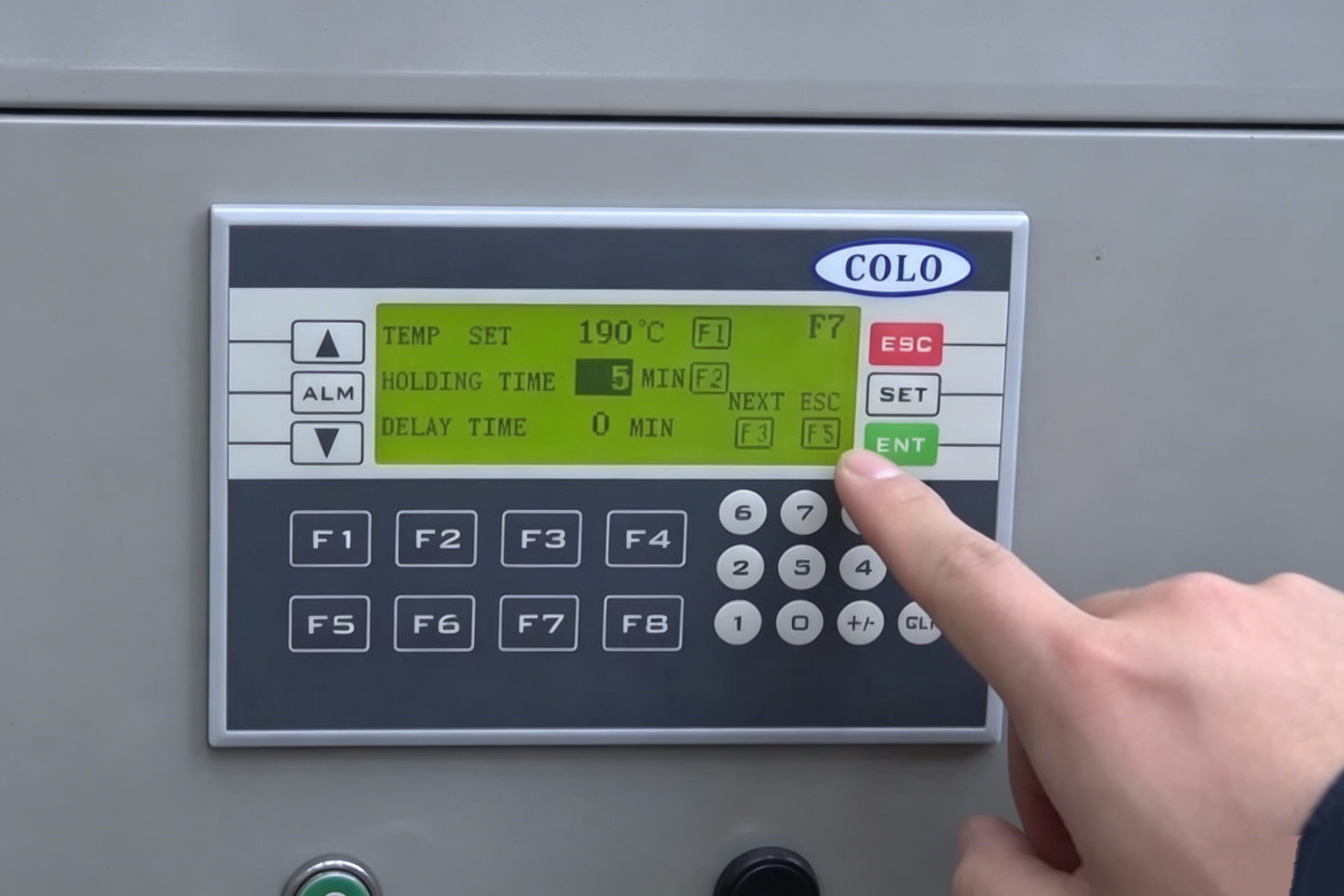

PLC Controller

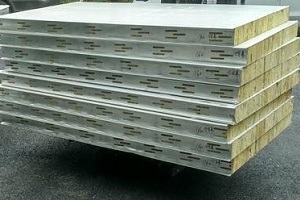

Rock Wool

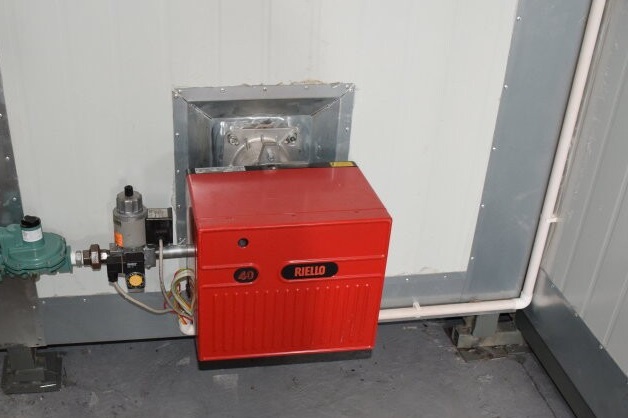

Riello Burnner

Specifications
