Turntable Sandblasting Cabinet

The COLO-1212FTA manual blast cabinets incorporate a turntable with loading cart used to operates heavy objects with minimal force.

Cleaning, deburring, descaling, rust-removing, refurbishing some of alloy wheels, castings, molds and so on.This can be the pretreatment for subsequent processing,or to get a final smooth and clean surface for users.
Availability:
Quantity:
  • COLO-1212FTA
  • COLO
  • Zhejiang, China (Mainland)

Turntable Sandblasting Cabinet

Turntable Type Sandblasting Cabinet is specially applied to operate heavy or big dimension products, like mold, statue, motor, car wheels, etc. An easy-to-rotate turntable reduces your efforts to clean objects from all sides, while an optional cart helps loading and unloading.


Sandblasting cabinet is your initial choice of various surface treatment purposes, such as removal of contamination, corrosion, mill scale and old coatings. It allows abrasives to penetrate into the deepest corners to blast away unwanted deposits and rust.

1 - 副本

Features of Industrial Sandblaster Cabinet

  1. An independed dust collector effectively removes dust that keep a clear working view.

  2. Enclosed cabin design with dust collector ensure the discharged air is always clean.

  3. Used abrasives will be recycled for further use to save cost.

  4. Each blast cabinet includes durable aluminum alloy blast gun with 100% purity boron carbide nozzle.

  5. An air blowing gun to clean impregnated dust and blasted abrasives.

  6. Foot pedal switch controls the blasting gun, which reduces user's fatigue and ensures safety.

  7. Our blast cabinet is constructed from high quality 3mm steel plate and powder-coated after assembled.


IMG_5646

Cartridge Filter Dust Collector

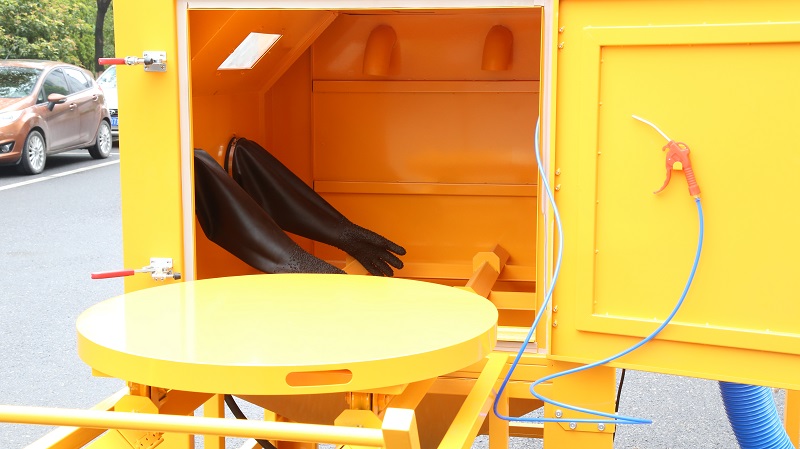

IMG_5660Turntable and cart
IMG_5653

Blasting Working Chamber

Applications of Industrial Sandblaster Cabinet

1. Pretreatment of electroplating, powder coating and other production to completely clean the surface and improve the adhesion and corrosion-resistant ability.

2. Cleaning the surface of metal and non-metal parts, restoring grain pattern on some handiwork.

3. Refurnishing sports part of car, motorcycle to eliminate fatigue stress and extend working lifespan.

4. Removing surface marks of metal/non-metal workpiece, matt face treatment to enhance the product grade.

5. Carving patterns and slip resistance treatment on the surface of metal and non-metal parts, such as marble, handle anti-skid, stamping, stele lettering, etc.


Turntable Sandblasting Cabinet Specifications


Model

CL-1212FTA

Overall Dimension

Length1620*Width1250*Height2000mm

Work Chamber

Length1200*Width1200 x Height800mm

Turntable

Diameter 800mm (Maximum Load 200kgs)

Door Size

W750xH780

Power Supply

110V/220V/380V/410V450V(50-60Hz)

Motor Power

0.75kw

Main Structure

Working chamber

Cartridge filter dust collector

Electric controll system

Pnuematic control system

Rotating Turtable

Loading Cart and track

...

Spare parts

Sandblasting gun with boron carbide nozzle

Air blowing gun

Blasting hose

Sandblasting gloves

pressure regulator

air moisture separator

...
