- Superior Performance
- Optimum coating results
- Better automization
- Precise powder output
- Single or multi color application
Quantity: | |
---|---|

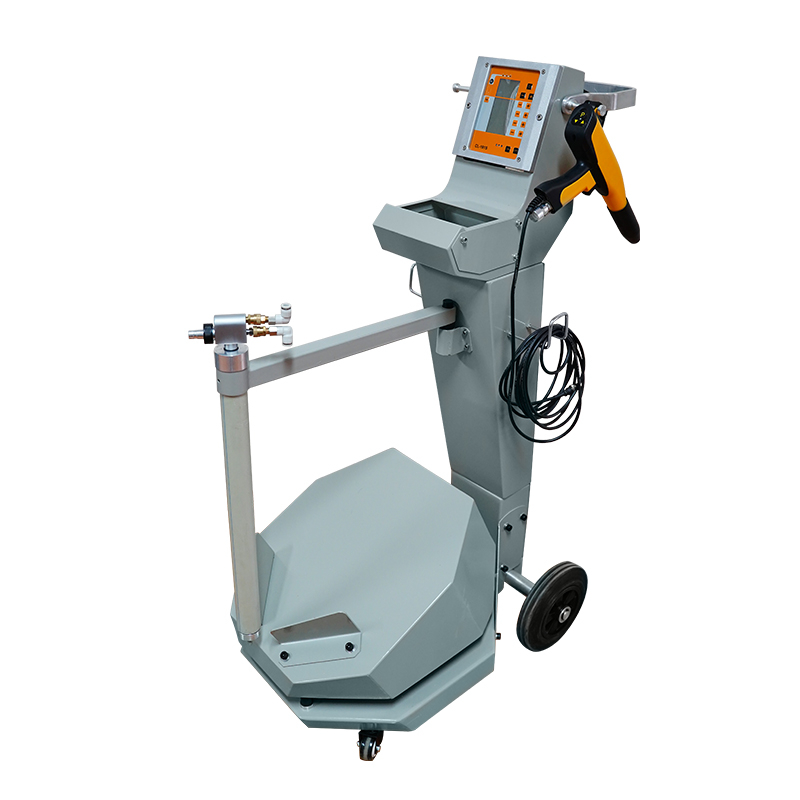

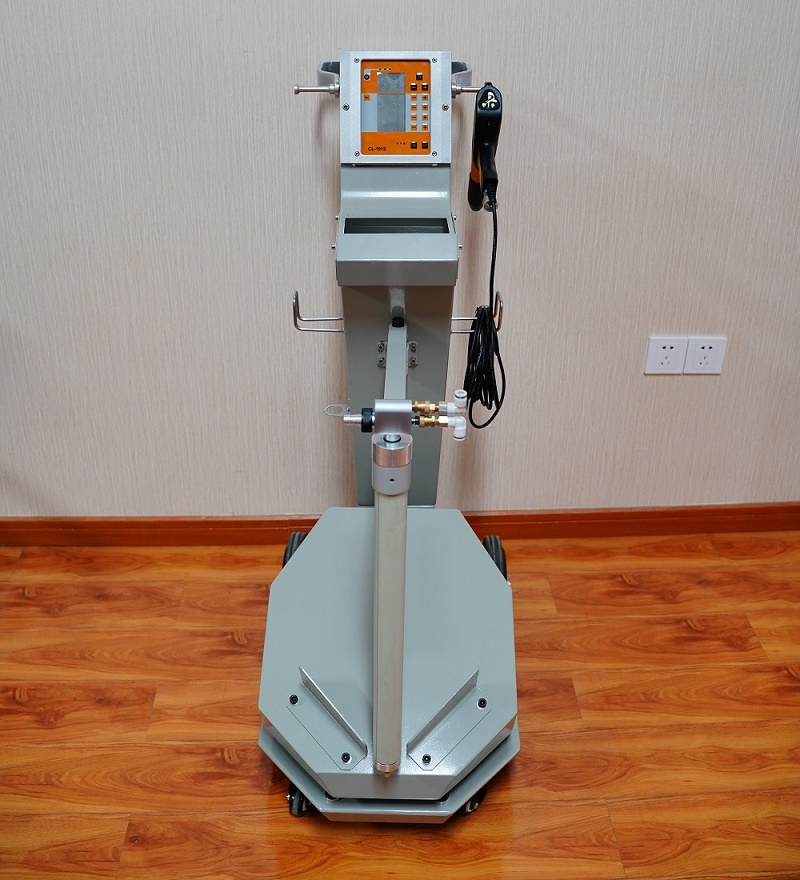

CL-191S-B powder coating equipment is our popular product, the design of box feed type is convenient and efficient for changing powder color, which conveys powder directly from the box that the powder was packaged by the powder supplier. This powder coating equipment is especially suits for multi color powder coating business, also could be equipped with powder hopper for single color powder coating job.
1. Three preset standard programs designed for beginners, perfectly configured to coat flat parts, complicated parts, recoat parts.
2. Up to 20 coating programs can be stored in the control unit, and easily selected via the display pilot
3. Digital air flow technology for accurate pneumatic data setting, ensures better atomization.
4. A precise powder output regulate makes it possible to control the thickness of coating film, ensures quality consistency.
5. Offers flexible adjustements to 0-100kv high voltage & Max180μa current.
6. An powerful LCD display gives clear showing of all those parameters and functions.
1. Built-in 100kv negative cascade for high transder efficiency
2. Nozzle assortment including:
- Extensions nozzles to penetration corner.
- Fan and round spray nozzles to optimize different applications.
3. Back cover has remote control of powder flows and programs selection.
4. Robust and durable design esnures long service life.
5. Ergonomic design effectively relieves fatigue during powder coating process.
Power Range: 220V/110V
Frequency: 50HZ/60HZ
Temperature range in use: -10 ℃+50 ℃
Powder Gun
Gun weight: 500G
Rated output voltage: 24VDC
Maximum output current: 180μa(max)
Maximum output voltage: 0-100KV (adjustable)
Maximum powder injection: 480g/min
Polarity: negative (-)
Pneumatic Data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure: 6kg/cm
Minimum input-air pressure: 4kg/cm
Maximum oil vapor content of compressed air: 1.4g/N m3
Maximum compressed-air consumption: 13.2 m3/h
