COLO-668 Epoxy Powder Coating Equipment

COLO-668 powder coating equipment with pulse technology provides an excellent finish, perfect balance and optimum handling. Innovative pulse coating improves corner penetration strength and application quality.
Availability:
Quantity:
  • COLO-668

  • COLO

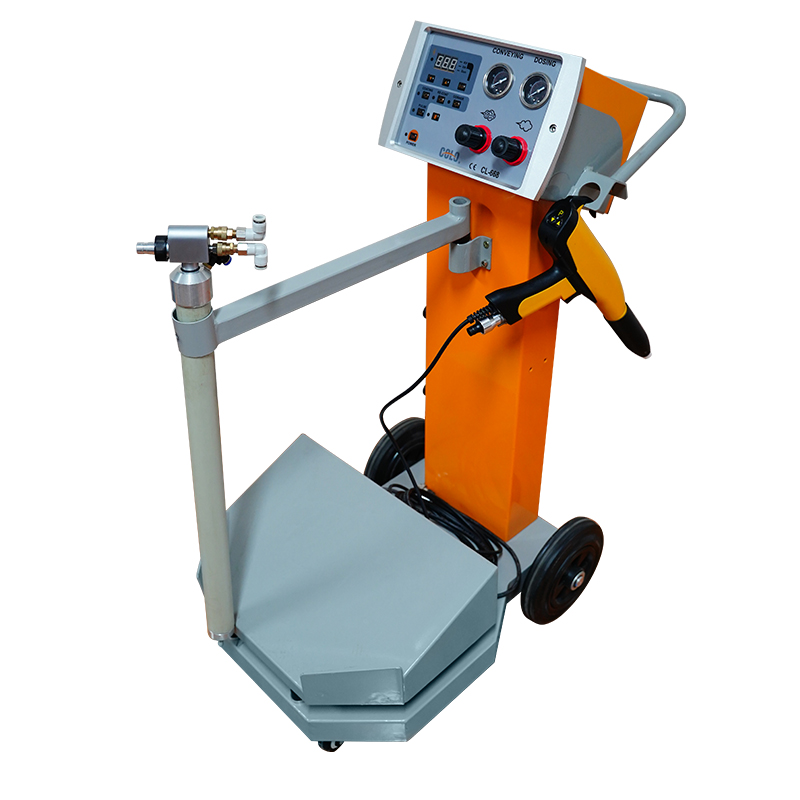

COLO-668 Epoxy Powder Coating Equipment

COLO-668 Epoxy Powder Coating Equipment adopts a vibration-suction powder supply system to feed powder directly from the original powder box. It can greatly improve the color changing efficiency and reduce powder waste.

The innovative, inexpensive COLO-668 powder coating system uses pulse technology that is simple yet powerful to handle hard-to-reach corners and complex shapes with a high-quality finishing.

COLO-668 Epoxy Powder Coating Equipment



colo-668 powder coating controller

COLO-668 Powder Coating Spray Gun Controller

- 0-100KV Adjustable voltage meets different powder coating requirements.

- One-touch intelligent operation buttons control four pre-programmed options, includes, flat parts coating mode, corner coating mode, re-coating mode, pulse coating mode.

- Pulse powder coating repidly recharges the powder for high transfer efficiency to penetrate tough areas, reduces time and material consumption.




COLO-08 Manual Spray Gun Featurespowder coating gun

- Weight only 500g, COLO-08 is a lightweight among powder spray guns, and also maintains the practical functions.

- 100 KV Manual spray gun ensures safe operation whilst maximizes powder charging capacity with high efficiency.

- Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.





COLO-668 Powder Coating Equipment Technical Data

Electrical data

Power range

220V/110V

Frequency

50HZ /60HZ

Temperature range in use

-10 ℃+50 ℃

Powder Gun

Gun weight:

500g

Rated output voltage

24VDC

Maximum output current

180Ua(max)

Maximum output voltage

0-100KV (adjustable)

Maximum powder injection

600g/min

Polarity

negative (-)

Pneumatic data

Maximum input-air pressure

10kg/cm

Optimum input-air pressure

6kg/cm

Minimum input-air pressure

4kg/cm

Maximum water vapor content or compressed air

1.4g/N m3

Maximum oil vapor content of compressed air

0.1ppm

Maximum compressed-air consumption

13.2 m3/h
