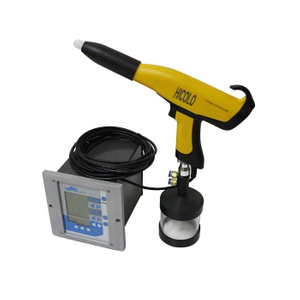

KF-X1 Electrostatic Powder Coating Spray System

KF-X1 Electrostatic Powder Coating Spray System is designed with latest Digital Valve Controlled technoloy, any workpiece could get a smooth and consistent powder coated surface by the precise-setting parameters. This box feed powder coating spray unit supports fast color change, is very popular in European and American countries. And its simple operation, whether experiencers or beginners could operate this machine easily.
Availability:
Quantity:
  • KF-X1
  • COLO

KF-X1 Electrostatic Powder Coating Spray Unit


KF-X1 Electrostatic powder coating spray unit optimizes perfection of functions and precision on the original basic, intelligent powder gun controller offers more precise powder output and adjustment of parameters to ensure an optimum powder coating result. This unit is box feed type, allows operators to work directly out of the carton, ideal for frequent powder changes.

X1 powder coating machines

KF-X1 Powder Coating Spray Gun Controller

powder gun controller

1. Three preset standard programs:

Flat parts program is ideal for spraying panels and flat parts.

Complex parts program is designed for some parts with complex shapes and deep corners.

Recoat program parts is optimized for parts which have already been coated.

2. Support to store coating programs up to 20, features convenient to spray the same type products next time.

3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.

4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.

5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).



COLO-08 Manual Spray Gun Features

powder coating spray gun

1. Weight only 500g, COLO-08 is a lightweight among powder spray guns, and also maintains the practical functions.


2. 100 kV manual spray gun ensures safe operation whilst maximizes powder charging capacity with high efficiency.


3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.




How to install the electrostatic powder coating spray unit?


X1 electrostatic powder coating gun


KF-X1 Powder Coating Spray Gun Technical Data

VoltageAC 220V / 110V
Frequency50-60Hz
Power50W
Output VoltageDC24V
Max Voltage0-100 KV adjustable
Max Powder Injection600g/min
Max input air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum water vapor content or compressed1.4g/Nm3
Maximum oil vapor content of compressed air0.1ppm
Maximum compressed -air consumption13.2m3/h
Temperature Range in Use-10 ℃-50 ℃
Gun Weight500g
Maximum Output Current180Ua
Polaritynegative
