COLO-Line
COLO

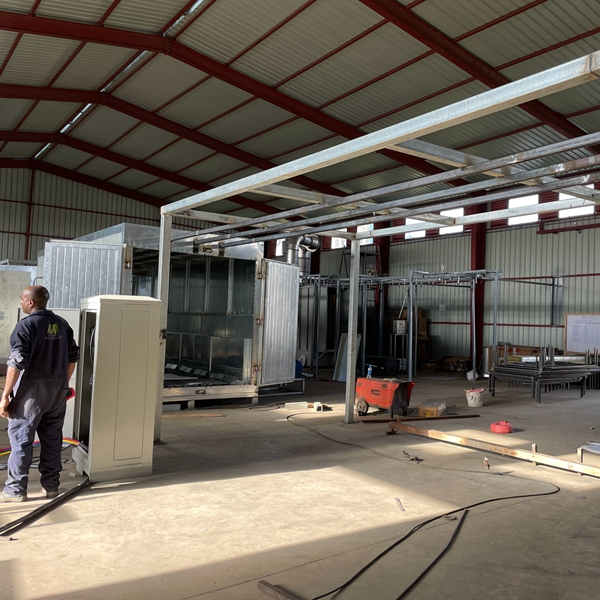

A semi-automatic powder coating line for chairs is a system designed to efficiently and effectively apply powder coatings to chairs in a controlled and streamlined manner. It combines manual labor with automated processes to optimize productivity and achieve consistent results.

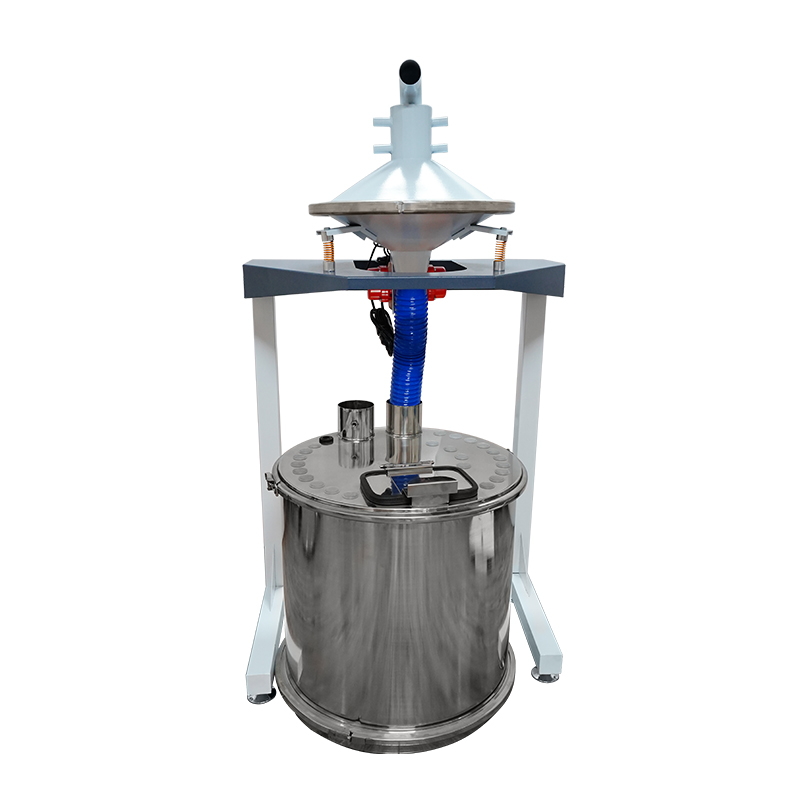

An automatic powder sieving machine is a specialized equipment designed to efficiently and accurately separate and filter powdered materials based on their particle sizes. It automates the sieving process, saving time and labor while ensuring consistent and high-quality results.
Powder Sieving Machine Specifications
Model | COLO-3000-R |
Total Power | 90W |
Output Current | 0.4 A |
Voltage | 220V ± 10AC, 50-60Hz |
Working Environment | -5℃ - 35℃ |
Weight | 55kg |
Size | L850 * W570 * H1470 cm |
Powder Hopper | 60*60 cm |
Automatic powder coating system including COLO-2000D Powder Reciprocator, COLO-800D Control Cabinet and COLO-08 Automatic Powder Coating Gun. It is the ideal entry into automatic series production offering quality finishes and great powder savings, whose processing can be easily controlled through the central cabinet.
COLO-2000D Powder Coating Reciprocator Specifications
Model | COLO-2000D |
Power Supply | AC 220V/110V 50-60hz |
Motor Power | 0.75 kW |
Speed | 0-0.8m/s(0-50m/min) |
Acceleration | 1 m/s |
Max. Loading Capacity | 25 kg |
Controller | Digital |
Motor | Frequency Adjustable |
Stroke | 1.5m / 2m / 2.5m |
Qty of Spray Guns Loading | 2-12 pcs |

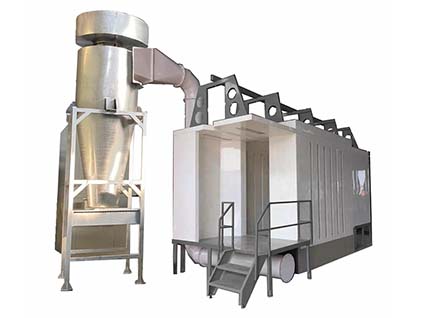

1.This tunnel powder coating booth has 2 working station allows parts recieving coating from both side, parts enter the booth from one entrance and exit from the other through conveyors,
2. Powder reclaim is achieved by a recovery stage, which is combined with several pieces of high precision filters, reach 98% powder recycling rate.
3. Filter cleaning is automatically done through pulse solenoid valves, thus filter life is extended.
4. PLC provides all the functions you need, control the fan working, set interval and time of pulse jet for filter cleaning.
Automatic Powder Spray Booth Specifications
Model | COLO-S-0825 |
Operating Dimensions | Width800 * Height2000 * Depth4000mm |
Overall dimensions | Width1200 * Height2580 * Depth5000mm |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 5.5kw, 2 sets |
Filter Count | 12 pcs(2 stages), Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Different sizes and configurations can be designed as customer's requests

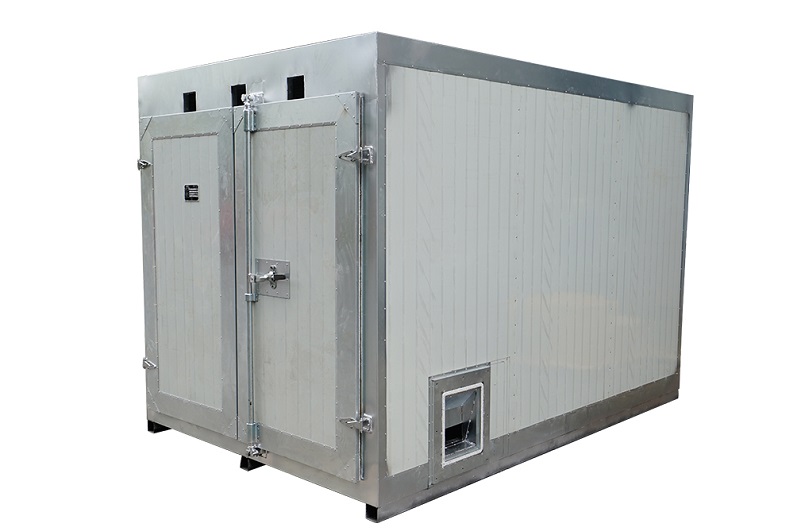

1. The powder curing oven can be heated by gas, diesel, or electric heating as actual requirements.
2. High efficiency heating element enables rapidly raise to the required temperature, save your time every day.
3. A powerful circulation fan makes uniform hot airflow in inner chamber ensure high quality curing results.
4. Construced with 100mm thickness rock wool board, ensures minium temperature dropping.
5. PLC Control system provides an easy and accurate heating process, digitally setting the heating time and temperature.

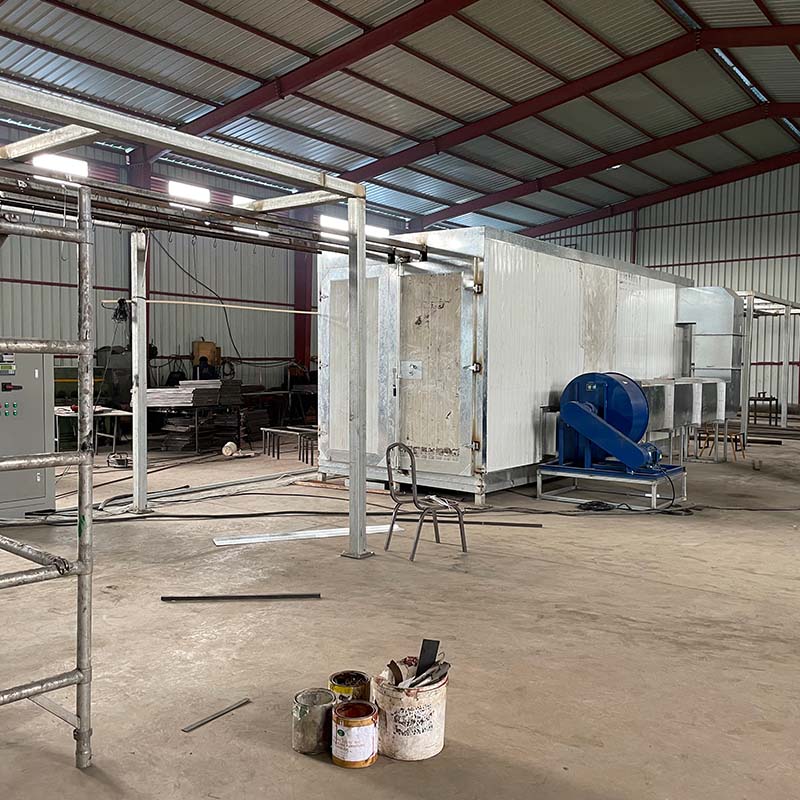

Manual powder curing oven for batch chairs with top track allows workparts hold on the overhead conveyor for continuous powder coating, ideal for batch production of chairs, aluminum profiles, metal doors, window frames, etc.ltutilizes gas fred heating system and powerful recycling fan assure rapid temperature rise and consistent curing temperatures.
Model | Customized oven | Size | Lenth6.5 x Wideth2.18 x Height2.54m |
Materal | 100mm rock wool board, new | Controller | Digial PLC Controller |
Heating Source | Gas/LPG/diesel/electric | Burner | Italy Riello |
Warm-up Time | 15-30min (180 ℃) | Temperature Max. | 250℃ |

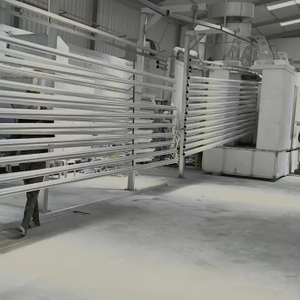

1. Overhead conveyor system is the most commonly used solution for automatic powder coating line.
3. We we can design whole conveyor system specially for your needs.
