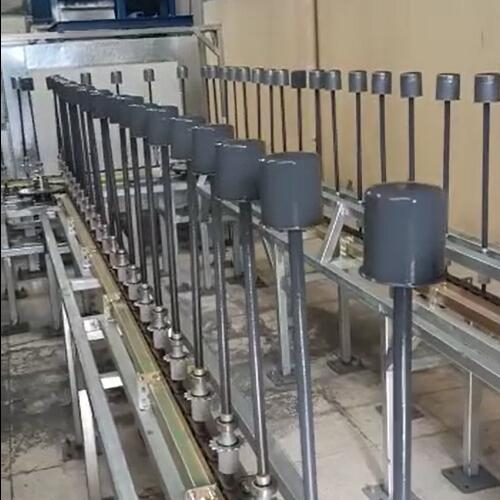

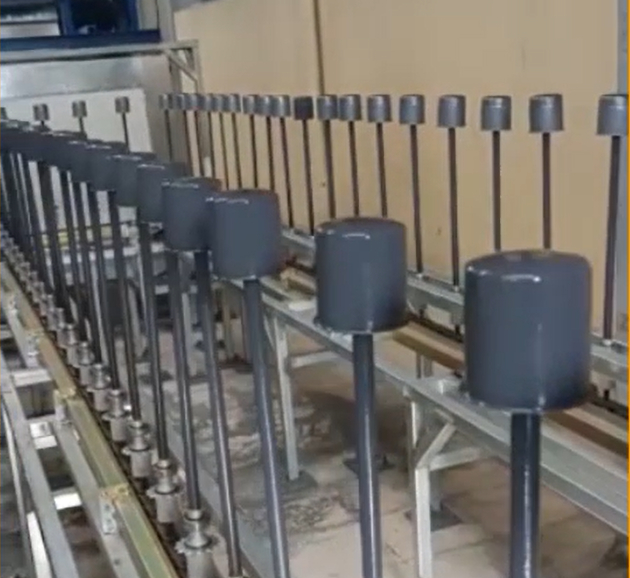

The newly designed ground rail automatic powder coating line, using a chain rotary conveying system, which is different from the hanging conveying system, more stable and more suitable for hollow and barrel-shaped workpieces, such as thermos cups, filter cups, etc.
1. The length of the conveyor line is about 125m
2. Conveying model: ground rail conveying
3. Conveying speed: 2.5m/min, adjustable by frequency conversion
4. Equipped with one tensioning device, one driving device and two pcs emergency stop devices
5. The workpiece is placed at an interval of 200mm
1. The inner size of the spray booth is W1120*H1500*L2900mm
Opening size W600*H600MM
Manual size W600*H1100MM
2. Chamber body material: SPCC/=1.5mm bending and molding, and then spraying
3. Equipped with 4 pcs automatic spray guns fixed with brackets and one manual spray gun
4. Equipped with one set of filters room,Fours groups of filter element φ325*900 quick-release type
5.Select one set 3kw centrifugal fan, air volume: 4500m3/h
1.The main body is made of rock wool board with a thickness of 100mm
2.1.5mm thick galvanized steel plate components
3. 8# square tube is used for support, and the inner frame is 4# square tube
4. Electric heating, 252KW, 84 pcs heating tubes of 3kw
5. Equipped with two sets of 5.5KW thermal insulation fans
Model | Ground Rail Automatic Powder Coating Line |
Working size of custom oven | W*H*L:2300*1100*14600mm |
Voltage/Frequency | 380V/220v(50-60hz) |
Warm-up time | 15-30 min. (180° C) |
Motor power | 5.5kw, 2pcs |
Heating Power | 252KW, 84 pcs heating tubes of 3kw |
emperature max. | 250° C |
Temperature stability | < ± 3-5°C |
Ventilation performance | 8288-16576m3/h |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Warranty | 12 months |
