Manual Powder Coating Line for Batch Productions

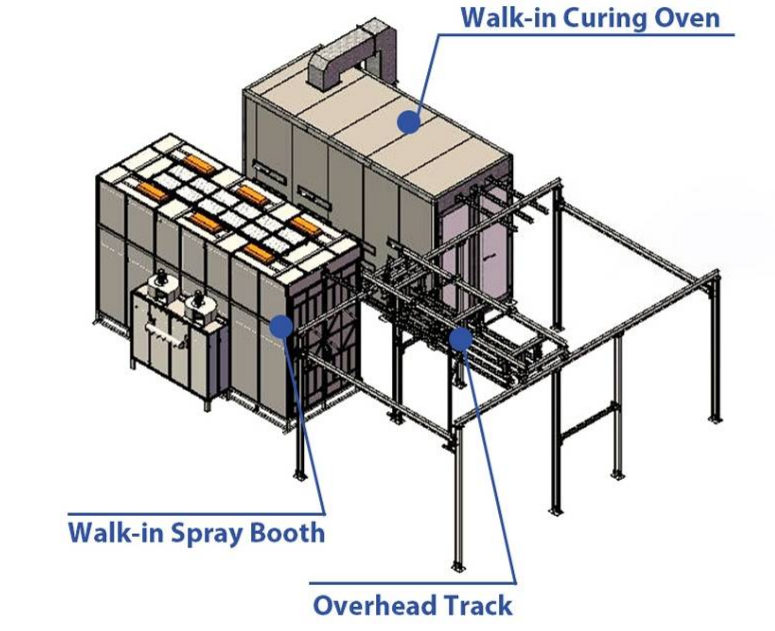

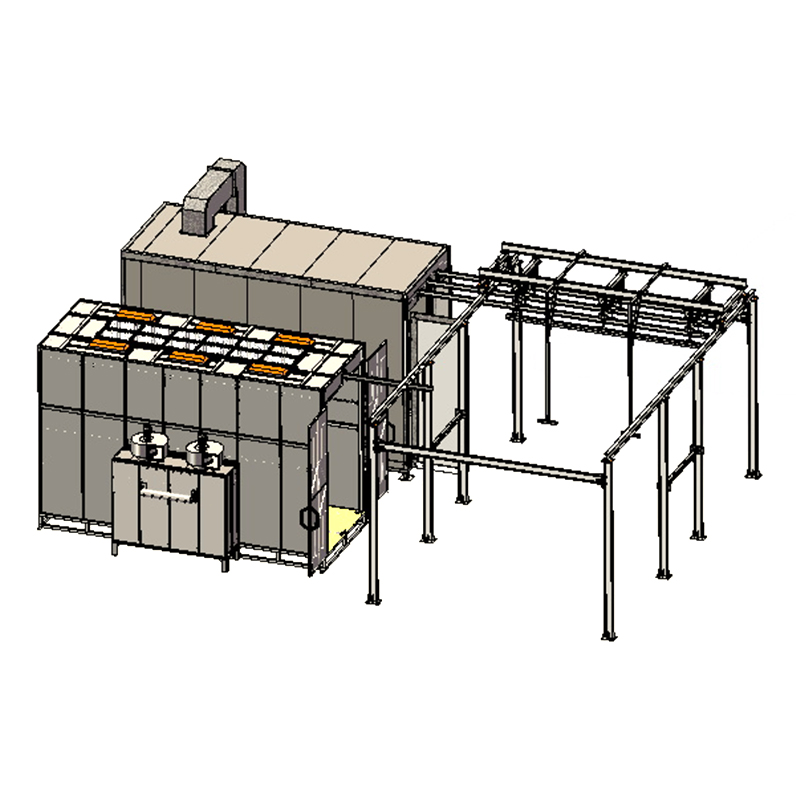

This is a manual powder coating line with overhead tracks, which is more suitable for spraying a variety of workpieces. If your workpiece has many kinds and is quite heavy, then you can consider this type of line. When the powdr coating work is completed, there is no need to load and unload the workpiece, and only need to manually pull the sprayed workpiece into the oven through the overhead conveyor. This design also reduces the space occupied.
Features of COLO-191S Powder Coating Spray Gun
1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.
2. There are 3 pre-set application modes, also could store 20 personalized application programs.
3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.
4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.
Powerful Controller
Powder Coating Gun
COLO Powder Coating Spray Booth

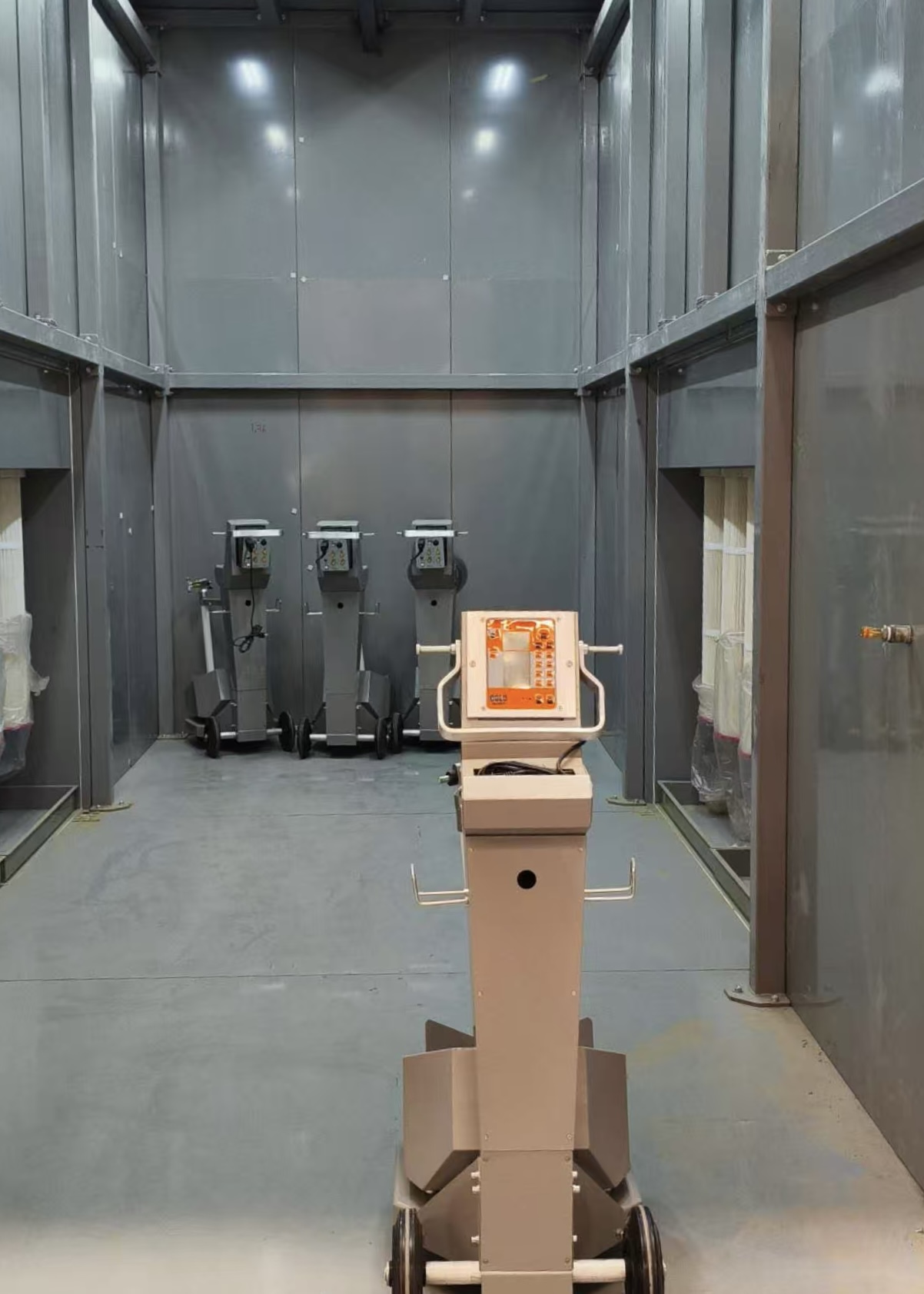

Walk-in powder spray booths are usually suitable for larger parts that are heavy or have different shapes. Operators can walk into the spray booth for powder coating operations. The side of the spray booth is equipped with a filter element recovery system, so that the powder can be recovered during the spraying operation.
1. The recovery module combines high-precision filters made of 100% polyester that maximize separating efficiency.
2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.
3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

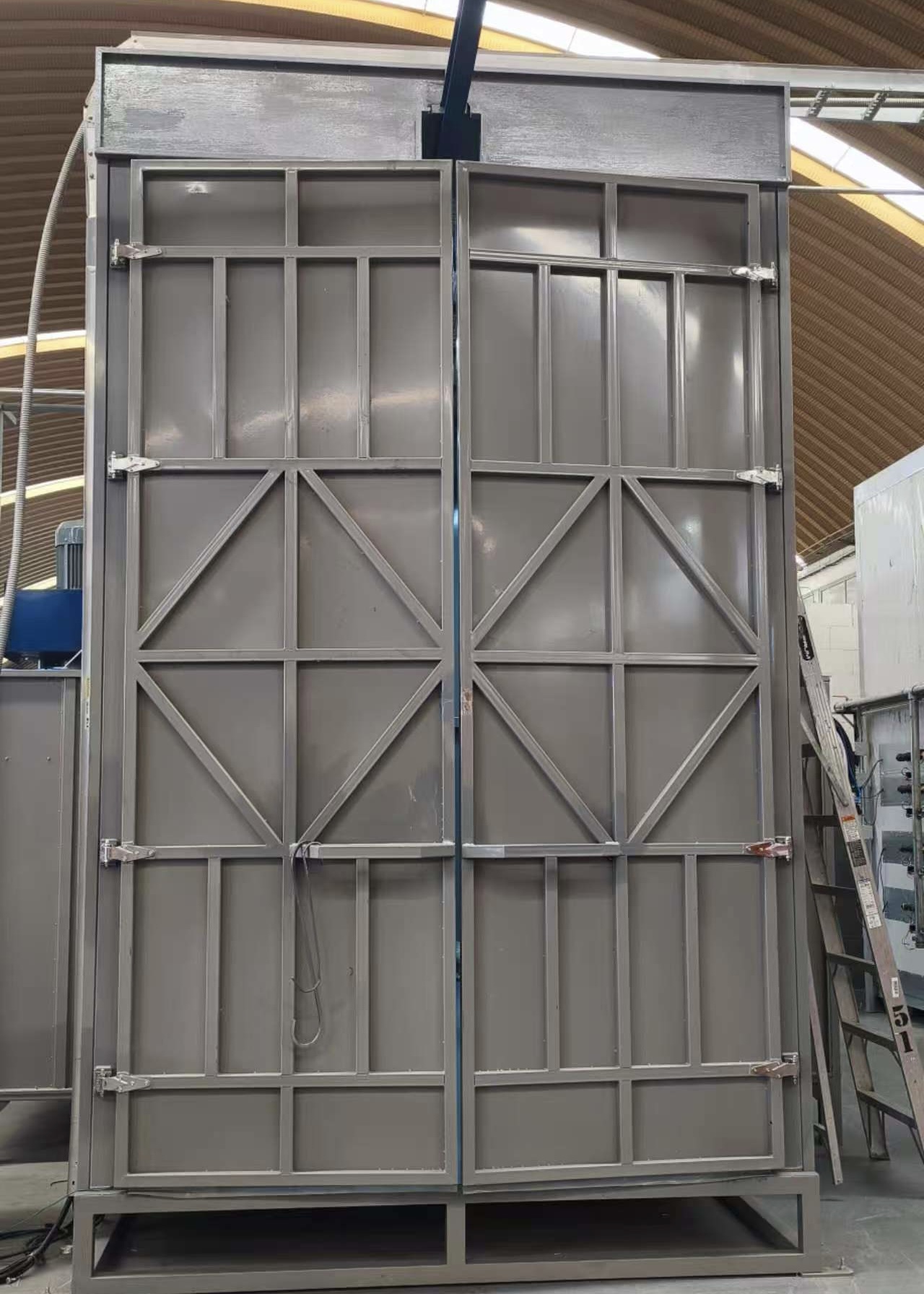

4. The booth body is made of powder-coated steel plate constructed for rust resistance, durability and ease of cleaning.
PLC Control Unit
Cartridge filters
Fan Motor
Specifications of Powder Coating Booth
| Work size | LWH=6000*2320*3667mm |
| Open size | WH:23203387mm |
| Voltage | 220V,3phases,60HZ |
| Material | metal plate with powder coated, SPCC/t=1.5mm thick |
| Recovery Filters | 4pcs filter rooms, 12pcs filters, dia.325*1000mm |
| Fan Motor | 5.5KW,4pcs |
COLO Top Track Powder Curing Oven

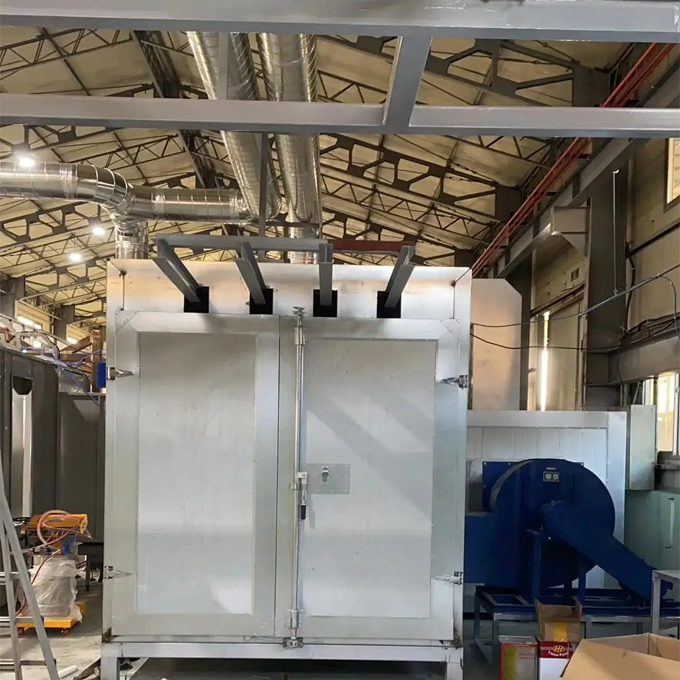

This powder coating curing oven is heated by gas for higher efficiency. A circulation fan cycles hot air uniformly and keeps even temperature in the chamber. Our powder coating ovens features environmental friendly, reducing operating cost and curing more parts everyday.

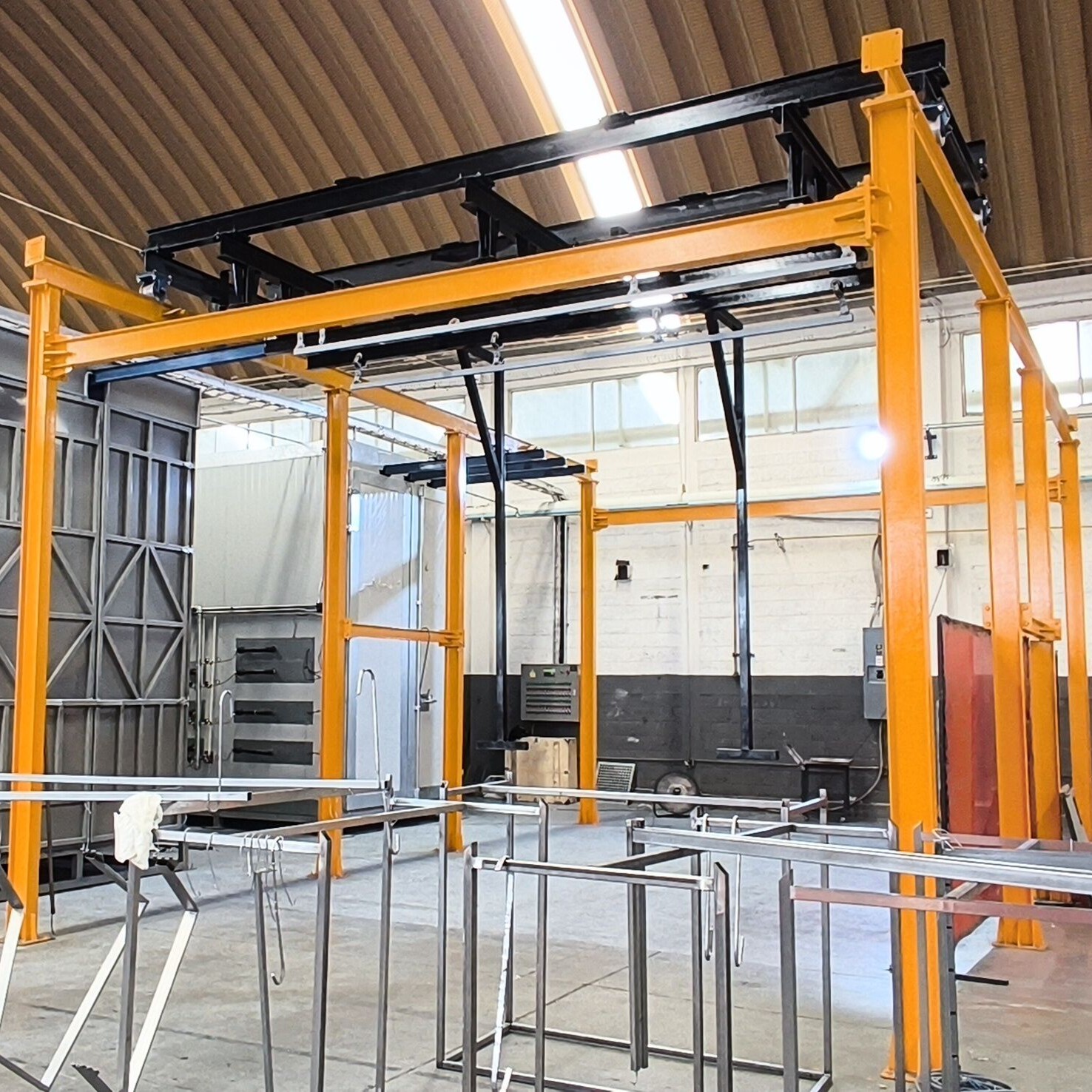

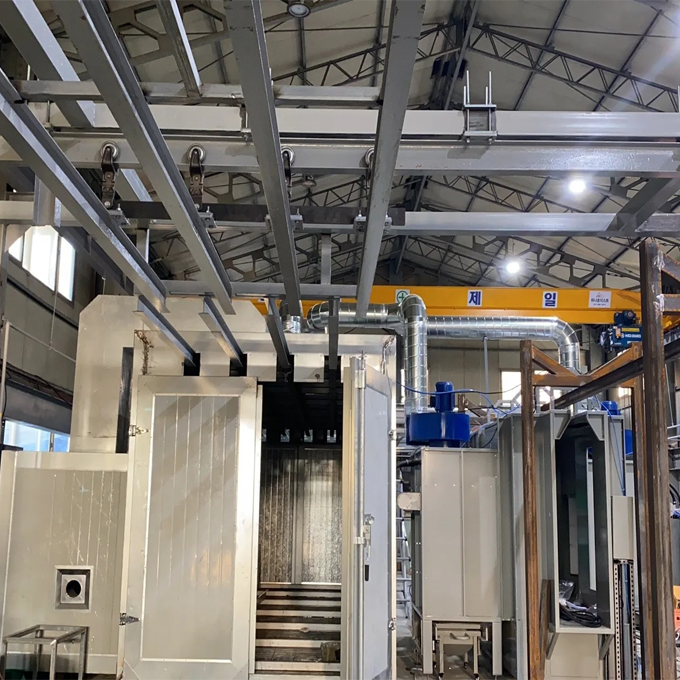

There are several rails on the top of the oven connect to powder coating conveyor for hanging heavy and big size workpieces.
1. Using PLC system to control all heating process, accurate and conveninet.
2. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
3. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.
4. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more.
PLC Controller
Rockwool Board
Riello Burner
Specifications of Powder Curing Oven
| Working Size | L*W*H=6000mm* 2320*3600mm |
| Heating Source | Gas |
| Heating Temperature | Max.250° C |
| Heating Time | 15-30 min. (180° C) |
| Temperature Stability | < ± 3.0-6°C |
| Material | 100mm thick heat resisting rock wool board, SGCC T=1.5MM 10#Square tubes for bottom supports,
6# sqare tubes for inside supports |
| Burner | HD262 ,28pcs |
| Fan | 11KW,13000M3/H air flow,1pcs |
Applications of Compact Powder Coating Painting Line

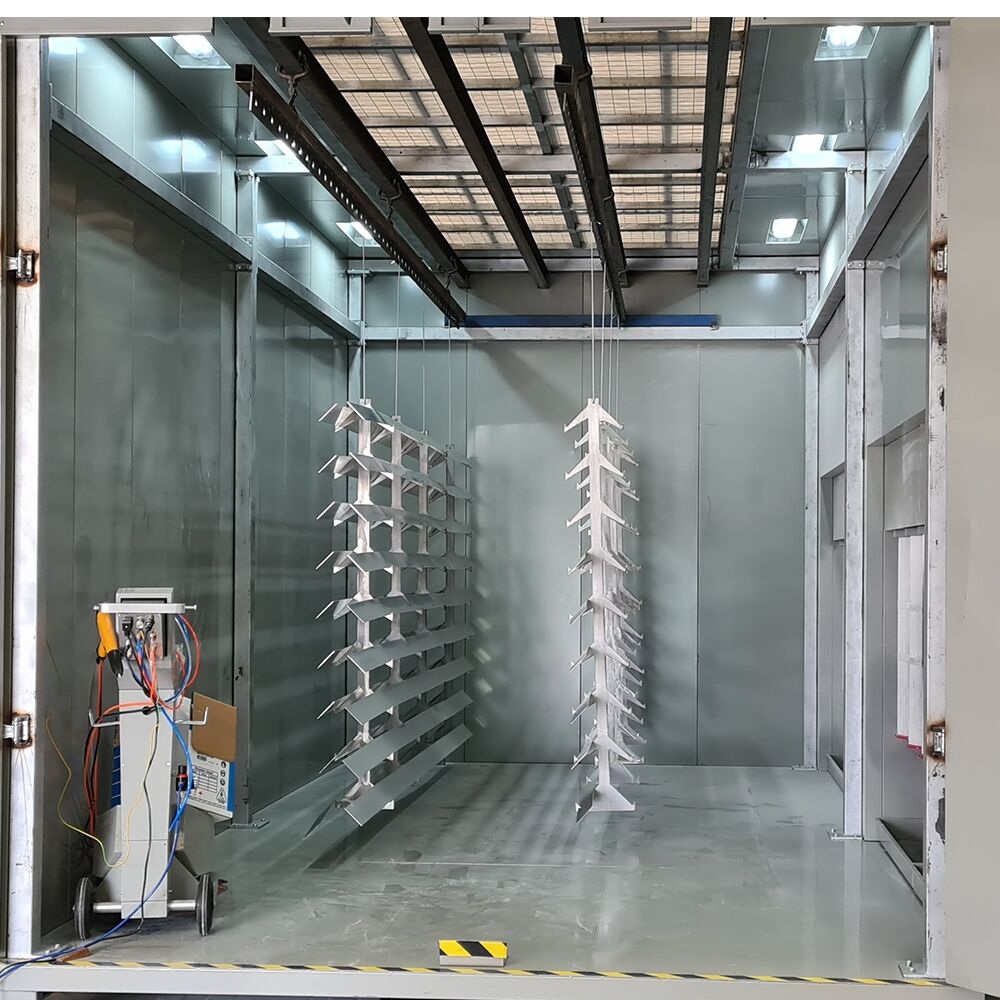

Specially designed for our customer requiring manual powder coating of compelx and large metal parts such as aluminum profiles, fence, frames, tubes, etc.
