Industrial Convection Oven for Powder Coating

This industrial convection oven for powder coating uses heated air to melt the powder on surface of parts, and create a film, finally to cure on parts. The key of convection oven technology is to heat inner air effectively and circulate it around the parts.

Quantity:
  • COLO-1732
  • COLO

COLO-1732 Industrial Convection Oven for Powder Coating


This industrial powder coating convection oven uses heated air to melt the powder on surface of  parts, and create a film, finally to cure on parts. The key of convection oven technology is to heat inner air effectively and circulate it around the parts. This oven is ideal for powder coating metal parts, such as wheels, frames, tools, accessories, etc, using electricity heating the chamber, features safer and affordable.


batch powder coating oven

batch powder coating oven


Powder Coating Convection Oven Features


rockwool board

Heating Insulation


Configured 100mm thick rockwool interlayer with galvanized innerwall and color steel outwall, the sandwich structure ensures better heat insulation effect.

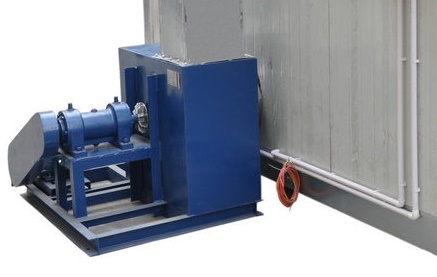

circulation fan

Circulation Fan


A circulation fan cycles hot airs in the chamber making uniform heat distribution with a minimal temperature difference, in order to obtain a quality finish with even gloss and consistent colour.

PLC Controller

Precise Control


A simple PLC controllor provides high-precision heating process, allows operators accurately to set the desired temperature and time, as well as an easy start of fan working. Once the curing time arrive, the oven will stop heating automatically. The controller also includes a variety of safety devices,  such as alarm light and emergency stop buttons, etc.

trolley

Easy Loading


Support trolley and frames for carrying and loading even heavy elements conveniently. This transporting system will not pollute the inner chamber and purity of parts. Special trolley can be designed as customer required.


Powder Coating Convection Oven Specifications


Model COLO-1732
Operating Dimension Width1650 * Height1700 * Depth3200mm
Overall Dimension Width1950 * Height2100 * Depth3500mm
Power Supply Electric, 48kw
Voltage/Frequency 220V/380V 50/60Hz (voltage can be custom as local)
Warm-up Time 15-30min (180°C)
Temperature Stability <± 3-5°C
Temperature Max. 250°C
Motor Power 1.5kw
Circulation/Air Flow
Vertical, Varaible through holes on the walls
Warranty 12 months


COLO-1732 Powder Coating Convection Oven in Powder Coating Line



Different Models of Electric Powder Coating Oven Specifications


Model Operating Size  Total Power Motor Power
COLO-1688 Width845 * Height1600 * Depth845mm 6.5 kw 0.55kw
COLO-1118 Width1000 * Height1000 * Depth1800mm 18 kw 0.75kw
COLO-1515 Width1500 * Height1500 * Depth1500mm 18 kw 0.75kw
COLO-1864 Width1600 * Height1800 * Depth1400mm 18 kw 0.75kw
COLO-1732 Width1650 * Height1700 * Depth3200mm 48 kw 1.5kw
COLO-1645 Width1500 * Height1650 * Depth4500mm 54 kw 3kw
