PLC Controlled Powder Coating Reciprocator, Precise & Smooth Movement

-Increase coating quality
-Reduce powder consumption
-Easy operation
-Solid and maintenance free
-Frequency adjustable
-Stoke adjustable

Quantity:
  • COLO-2200D
  • COLO

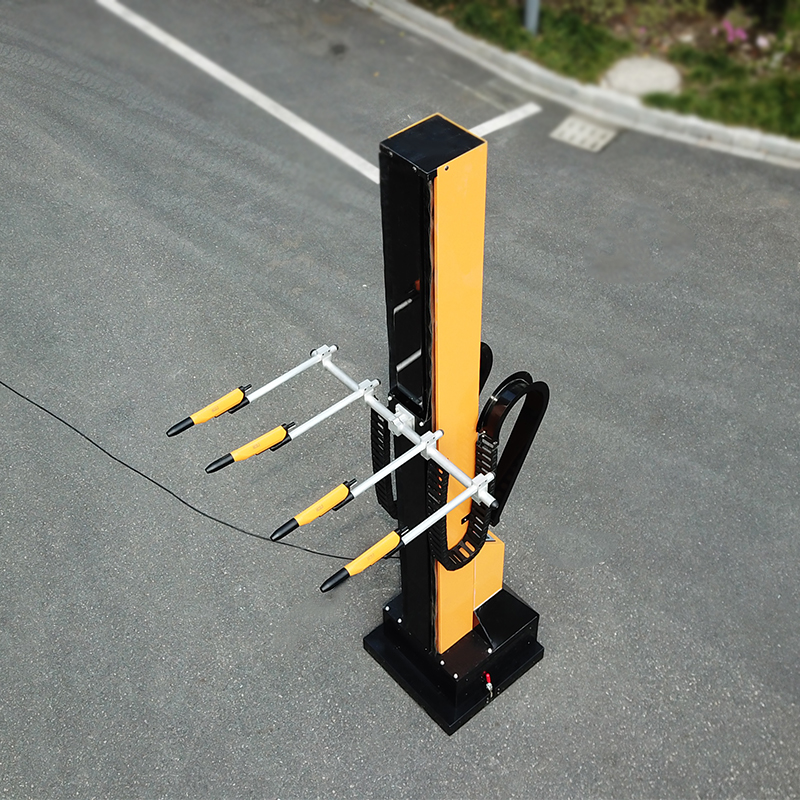

PLC Controlled Powder Coating Reciprocator


COLO developed PLC controlled reciprocator with linear rail guide for high requirements of automatic powder coating, which gives more gentle and accurate movement, increasing the uniformity and quality during continuous coating jobs.

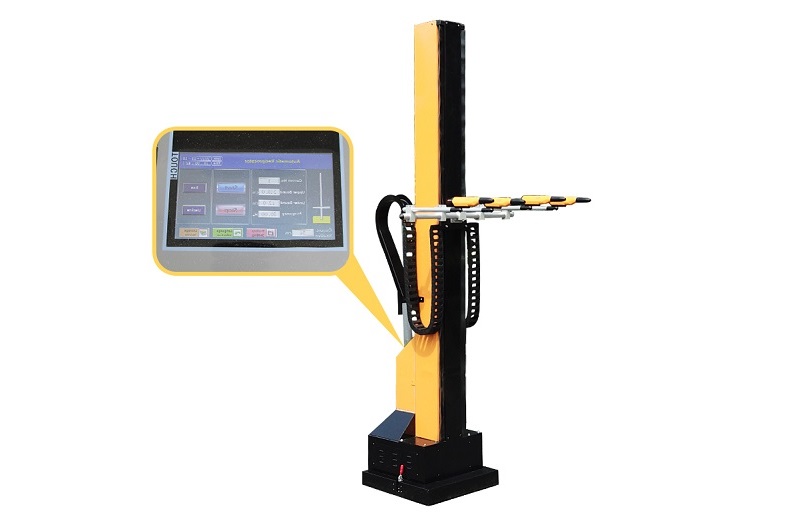

  • Precise speed, stroke and position you can set on the PLC controller by touch screen. could store 20 programs, different languages for choice.

  • Mechanical components using linear rail guide, scroll up and down with a belt drive. This straight track features smooth jitter-free operation, low noise and less wear-resistance.

  • Japanese imported frequency convertor with reliability and flexibility, complete protection for driving and motor.

  • High-precision position sensor output coded signal to the circuit board for high-speed processing, and thus the upper and lower pivot point lift is stepless adjustment controlled.  WIth up and down limit protection, You can start at any position.

  • Carry up to 12 pcs spray gun with high stability, both applied to powder coating or wet painting.



QQ截图20170410125134

Powder Coating Reciprocator Specifications


Model COLO-2200D
Power Supply AC 220V/110V 50-60hz
Motor Power 1.1kw
Speed 0-0.8m/s(0-50m/min)
Acceleration 1m/second
Max. Loading Capacity 25kgs
Controller PLCwith touching screen
Motor Frequency Adjustable
Stroke 1.5m/2m/2.5m
