Digital Automatic Powder Coating Reciprocating Machine

-Designed for continuous and uniform coating
-Frequnecy adjustable reciprocator
-Powder coating & wet painting application
-Smooth and stable motion
-Digital controller
-Speed and stroke adjustable

Quantity:
  • COLO-2000D
  • COLO

COLO-2000D Automatic Powder Coating Reciprocating Machine


The construction and performance are designed to high continual load everyday operational conditions. Perfect coating is achieved with easy adjustment of stroke and speed to meet production needs. Our powder coating reciporcating machine is designed for quality and uniform jobs.


powder coating reciprocating machine

Configurations and Advantages


1. Working speed and stroke are monitored on the digital screens,  memorized for 80 storable programs

2. Extremely smooth & accurate running through high-precision and wear-resisting metal chain transmission,

3. Eight nylon wheels are adopted with ingenious mechanical structure, minimize vibration during reciprocating

4. Auto brake when switched off, no slipping down and restart from exact stopping position

5. Driven by frequency motor, Japanese imported, solid and maintenance free.



Powder Coating Reciprocator Specifications


Model COLO-2000D
Power Supply AC 220V/110V 50-60hz
Motor Power 0.75kw
Speed 0-0.8m/s(0-50m/min)
Acceleration 1m/second
Max. Loading Capacity 25kgs
Controller Digital
Motor Frequency Adjustable
Stroke 1.5m/2m/2.5m

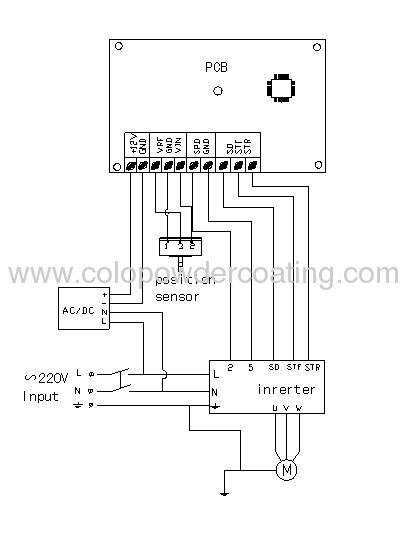

CE certification Automatic Reciprocator

CE certification Automatic Reciprocator

automatic powder coating reciprocator Operation :

1. Please make sure the reciprocator is set on the manual process ,turn off the power. If it is set on the auto process and the user need push the OFF key to turn off the power ,otherwise the machine will work automaticly ,please take care.

2. First, on the "program" display ,make it "1",then push the key ↑,and make the spray gun move to the workpiece top place ,at this time please check the data on the "m" display ,make the m data minus 80(m-80=A),make A as the upper limit value. Push the key ↓,and make the spray gun move to the workpiece bottom place ,at this time please check the data on the "m" display ,make the data plus 80(m+80=B),make B as the lower limit set value .Make the speed data(Hz) as about 10,push the key "ON" to start the reciprocator ,push the key "OFF" to stop it .You can change the "HZ" data to find the best moving speed .In this case ,if the upper limit is not high or not low enough ,you can increase or reduce the data .Now the setting for the mode 1 is finished ,all the data will be  in the mode 1 memory.

3. If the user have some other different workpieces ,they can set the data in mode 2 ,process is same with above. This reciprocator can store 80 modes .You only need choose the suitable mode when you spray the workpiece..

4. In order to avoid the collision caused by too much data ,this machine has the data limited function. For example ,in the mode 1,you push the key for 5 seconds ,and then it appears 0,this come into the data setting mode ,The data indicate the limited data ,then push(+)to come out of the setting. All the working data will not exceed the limited data.

5.The machine has the function that it can star automatic once the power is on. In order to make it convenient ,the user can use the farther control ,so the machine can start itself . Push the key "AUTO",and then the auto light(on the corner) will glitter, when the glitter is finished and it light all the time and then the start automatic setting is finished. The user only need turn on the power and the machine will start itself ,please take care!

  If you want to come out of the auto function ,please push the key "AUTO" the auto light will glitter ,when the glitter is finished and the auto function is closed .

6. Please note ,when you change the machine moving speed HZ ,the upper and lower spot is a little different due to the inertia .So in order to avoid collision the user need check it carefully.

CE certification Automatic Reciprocator


Automatic Powder Coating Gun / Automatic PowderGun / AutomaticCoating Gun

1. qualitatively high powder charging, and uniform powder output

2. Quick-change hose connector and replaceable, threaded powder-tube enable quick removal and easy maintenance.

3. Compatibility with all nozzles and extensions for the manual powder guns, simplifying replacement of wear parts.

Customized Automatic Powder Coating Gun Compatibility With All Nozzles

COLO-06automatic powder gun is compact and easy to maintain. With color changes, the gun is quickly cleaned and ready to be used again

Thecolo-06automatic powder gun with integrated high-voltage cascade isthe heart of powder coating application equipment. It is, after all acritical component for applying powder onto parts. The colo-06 requiresminimal maintenance and equipped with a patented air rinsing electrodewhich guarantees constant, qualitatively high powder charging, anduniform powder output. All commercially available powders can be usedwith the colo-06 electrostatic powder gun.

  • Quick-change hose connector and replaceable, threaded powder-tube enable quick removal and easy maintenance.

  • Compatibility with all nozzles and extensions for the manual powder guns, simplifying replacement of wear parts.
