Dual Control Electrostatic Powder Coating Machine

This powder coating machine with design of dual controllers and guns suits for two operators spraying workparts simultaneously, which features more efficient.

Intelligent powder gun controller with digital control valve technology that allows to precisely set and adjust parameters, provides the optimum powder coating solutions for different workparts.

Quantity:
  • COLO-191S-2
  • COLO

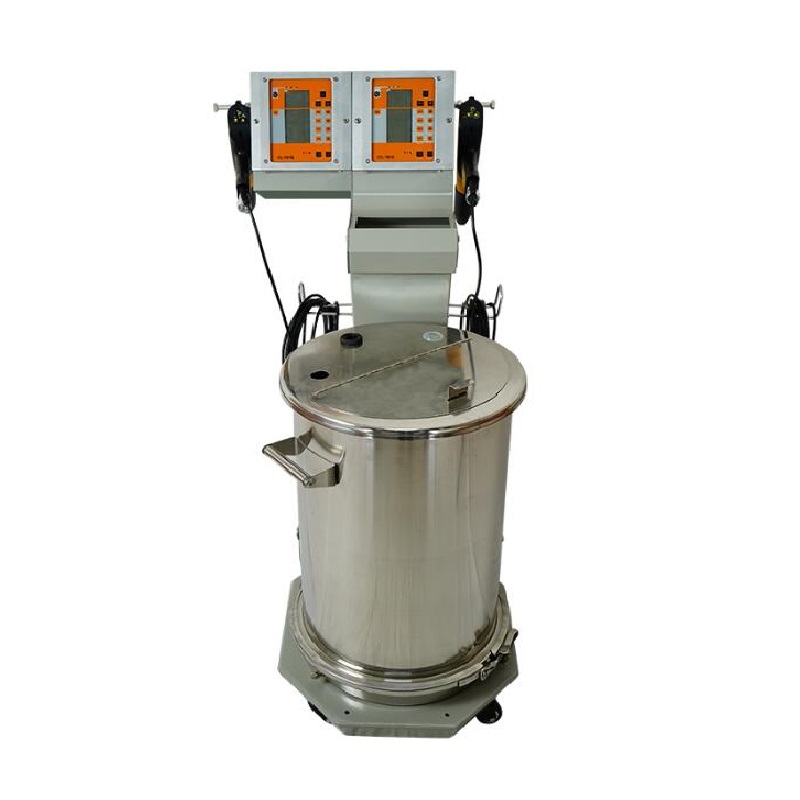

Dual Control Electrostatic Powder Coating Machine


Dual control electrostatic powder coating machine supports two operators to work at the same time, could save both time and labour. COLO-191S powder coating machine with digital valve control function supports to adjust voltage and current, precise adjustment of powder output to set the optimum parameters for powder coating different workparts.

Dual Control Electrostatic Powder Coating Machine

Dual Control Electrostatic Powder Coating Machine

Dual Control Electrostatic Powder Coating Machine Features

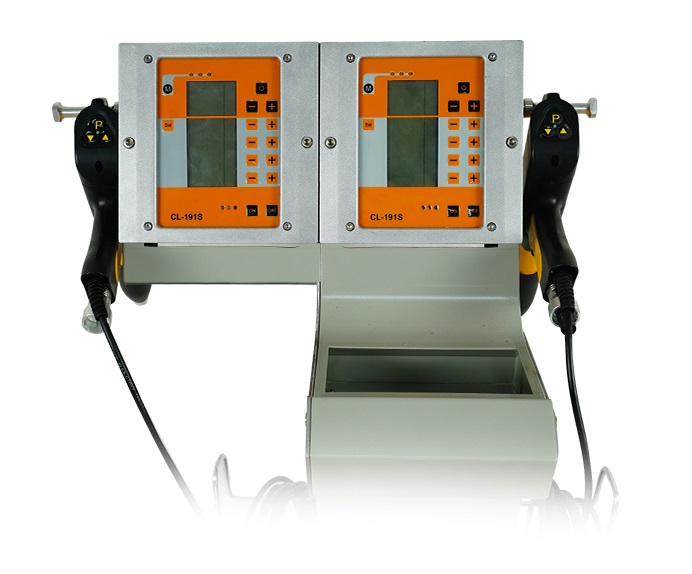

powder coating machine controller

COLO-191S Powder Gun Controller


Button type control is more convenient to operate, and switch from different application programs flexibly. There are 3 pre-set application modes: flat-coating for large plates, corner-coating for complex parts, re-coating for repairing jobs.


Support to store 20 application programs for powder coating. Different powders or parts require specific program settings. The 20 personalized application programs help operators to fastly start working and each part will recieve optimal powder coating effect.


powder coating spray gun


COLO-08 Manual Powder Coating Spray Gun


100 kV manual spray gun ensures safe operation meanwhile maximizes powder charging capacity with high efficiency.


This lightweight and ergonomical spray gun is able to reduce fatigue from working long hours.


Flat spray nozzles and round spray nozzles with deflectors are ideal for powder coating different shape of parts.

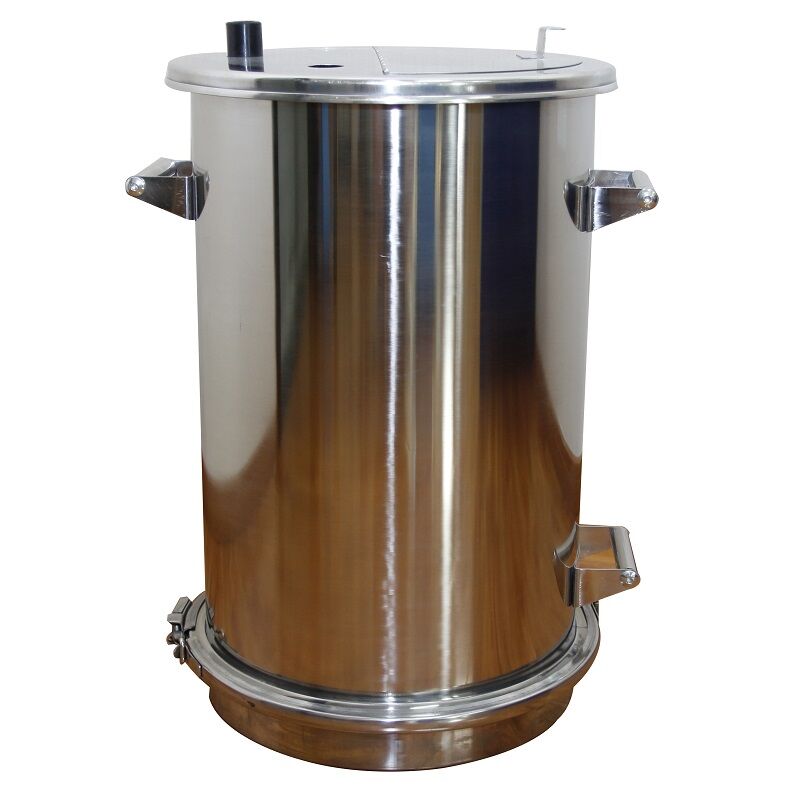

Fluidizing Hopper


Large Capacity Fluidizing Powder Hopper


Size: Dia 36 * Height 62 cm


Capacity: 60L


This hopper with fluidized plate allows powders easily to be conveyed from the hopper to spray gun with a high degree of uniformity and consistency. Fluidizing action breaks up powder accumulation, removes absorbed moisture, improves powder coating quality.



Specifications of Dual Control Electrostatic Powder Coating Machine

Voltage AC 220V / 110V
Frequency 50-60Hz
Power 50W
Output Voltage DC24V
Max Voltage 0-100 KV adjustable
Max Powder Injection 600g/min
Max input air pressure 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed 1.4g/Nm3
Maximum oil vapor content of compressed air 0.1ppm
Maximum compressed -air consumption 13.2m3/h
Temperature Range in Use -10 ℃-50 ℃
Gun Weight 500g
Maximum Output Current 180Ua
Polarity negative
