COLO-660 Affordable Price Powder Coating Painting Machine

-Classic model, cost-effective
-Proved quality and performace
-4 presets: flat coating, corner coating, re-coating, pulse coating
-Pulse coating is ideal for penetration deep corners
-Compact design, save space

  • COLO-660
  • COLO

COLO-660 Powder Coating Painting Machine

Advanced electrostatic field pre-setting operation mode and current feedback automatic control ensure that the high powdering rate of various shapes of workpieces can be satisfied. COLO-660 Manual Powder Coating Equipment is our classic and hot-selling model, fine coating effects and quite stable quality, which is especially suitable for spraying workpiece with deep corners in great performance.

affordable powder coating machine

COLO-660 Configurations & Benefits

1) 0-100KV Digital Adjustable for Voltage and Amperage, Perfect of Coating Efficiency.

2) Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.

3) Comes with Full Array of Nozzle Assortment for Different Application

4) Field Tested and Proven to Operate in the Toughest Environments.

5) Hoppe Feed -50 Pounds Capacity, Simple to Clean and Fluidize the Powder Effectively

6) Compact and Convenient Trolley is Designed upon Ergonomic and Easy Movement

COLO-660 Powder Coating Machine Advantages

Colo-660 innovative design powder painting machine with four pre-programmed control options for easy of coating different parts based on many years improve. These one-touch intelligent operation buttons give you an quick access to powder coating.

1) Flat mode: Maximize voltage for super transfer efficiency for coating flat parts.

2) Recoat mode:  Adjusts the voltage and current automatically for repeat coating.

3) Complex mode: Adjusts the voltage while holding current with coating complicated shapes

4) Pulse mode: Rapidly and continuously recharges the powder to coat complex shapes and deep corners.

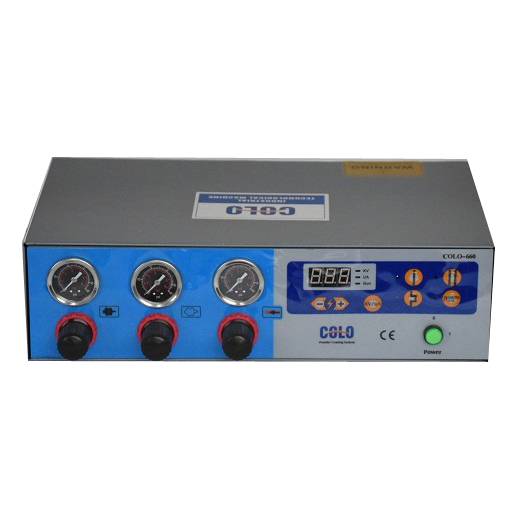

powder coating gun controller2

The existing corona coating was difficult to coat a corner or recessed place with a high current because of electrostatic sheild. In an attempt to resolve such a problem, if you lower voltage and change powder with a low current, it leads to weaken electrostatic force to cause powder to run down. Pulse coating is a great and new style that repeatedly changes powder with a low current and a high voltage at intervals of short time, powerfully coat electrostatic shield area with powder savings.

Powder is conveyed from powder hopper by injectors then delivered to the spray gun through powder hose, when it arrived at the nozzle, it is electrostatically charged at the nozzle of the gun. In addition, an electrostatic field is created between the gun nozzle and the grounded object. The charged powder spray remains adhered to the surface of the object. The powder in the hopper is fluidized by air forced through a porous plastic plate from below.  The voltage, conveying air, supplementary air, and rinsing air are set on the control unit

COLO is a top supplier of powder coating quipment including manual powder coating sytem, automatic powder coating equipment, powder spray booths, curing ovens and spare parts.

Technical Data

Input Power : 50W

Input Power Voltage: 110V-120V AC,220V-230V AC

Output power voltage: 0 ~100KV

Output Current: 0~150uA

Weight of Gun: 480g

Length of Gun Cable:6m

Stainless Steel Powder Hopper Capacity:55L

Work temperature range: -5°C to 40°C
