This enclosed tumble sand blaster machine designed for use by high-production manufacturers who need to prepare the surface of many identical small parts.Batch parts will be processed entirely and evenly through automatic blasting guns and tumbling drum. Optimal surface finishes can be achieved by varying media, tumbling speed, blast duration, blasting pressures, and media flow.

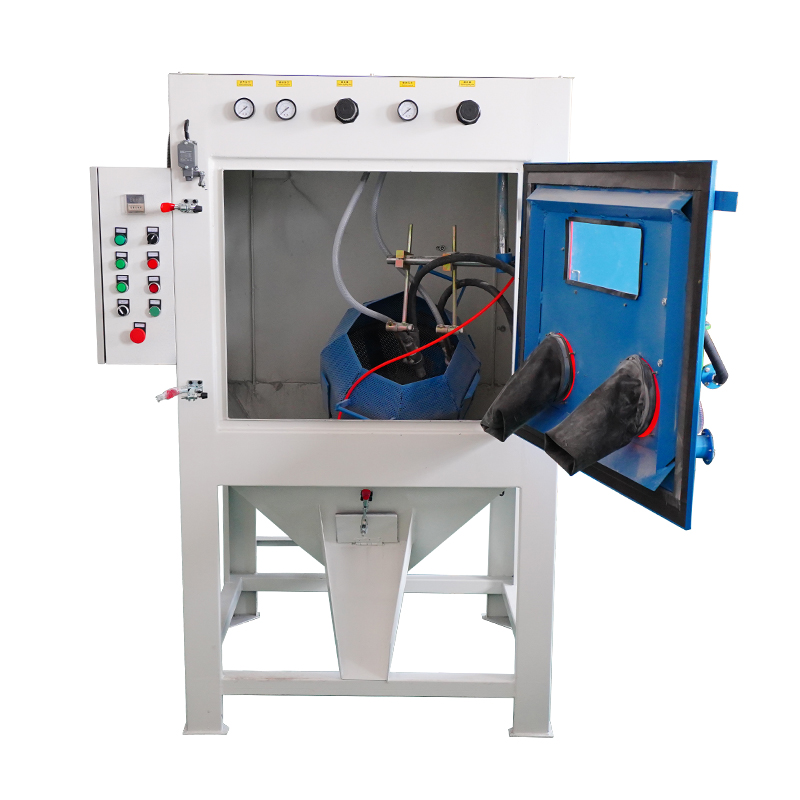

Batch processes requiring small parts to be peened, deburred, or cleaned can be performed with minimal labor commitment by using a tumble barrel suction blasting cabinet.After loading parts into the barrel, the timer is set to start, and the production worker can then move on to other productive tasks.
This tumble blaster is quite ideal for processing small parts such as zipper head, screws, small hardwares, gears, saw blades and circular shafts, etc.
1. Blasting guns can be set automatic or manual working for multi purposes.
2. The size of the rotary basket, the quantity of blasting guns can be customized.
3. Each blast gun is individually controlled thus to select single gun or multi-gun working for different needs.
4. The rotation of tumble basket variable frequency controlled.
5. Tumble blast system equips with an discharge chute make it simple to empty the basket.
6. A high efficiency dust collector with strong vacuuming ability for effective abrasive recycling.

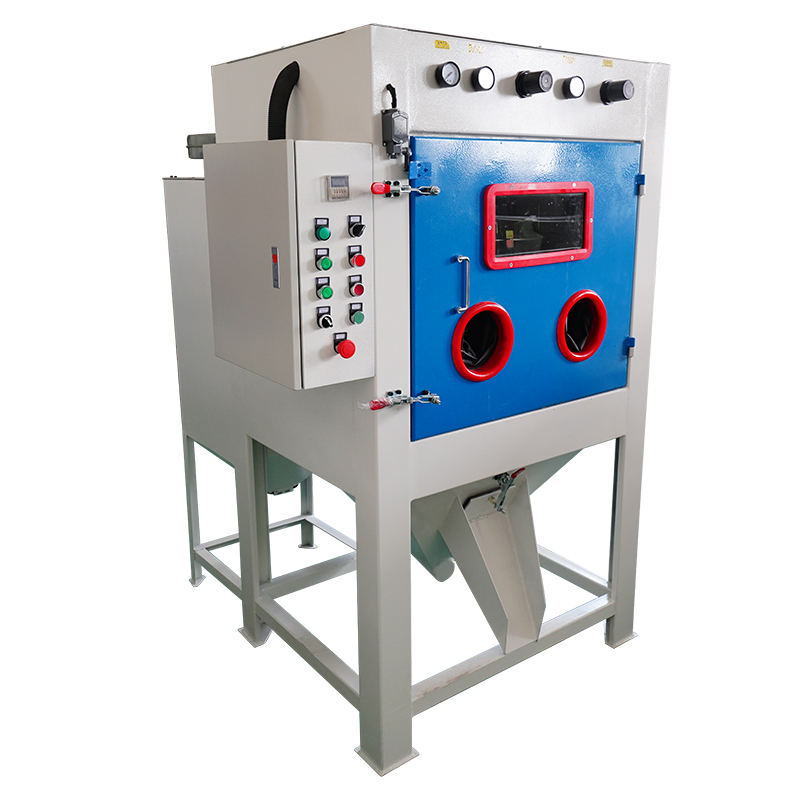

Tumble Drum Automatic Sand Blasting Cabinet Specifications
Model | KF-1080ZL |
Outer Size | Length1200 * Width1250 * Height1800mm |
Working Chamber Size | Length1000 * Width800 * Height800mm |
Barrel Diameter | 500mm(can be customized) |
Sandblasting Gun | 2 pcs with Boron Carbide Nozzle |
Totating Speed | 8 round/min |
Barrel Motor | 380V/50HZ/400W |
Dust Collector Motor | 380V/50HZ/550W |
Air source | Pressure 2-7bar(kg/cm^2) |
Compressed Flow | 1.5-2.0m3/min |
Machine Shell Thickness | 2-5mm Coated Steel Plate |
Lighting | 220V 13W LED Lamp |
Total Machine Power | 380V/50HZ/1100W |
