Powder Coating Booth Dust Collector

Multi-cyclone powder coating dust collector system includes cyclones and filters recovery.
Whether single-colored or multi-colored powder coating production, this system is ideal selection to accomplish productions.
  • COLO

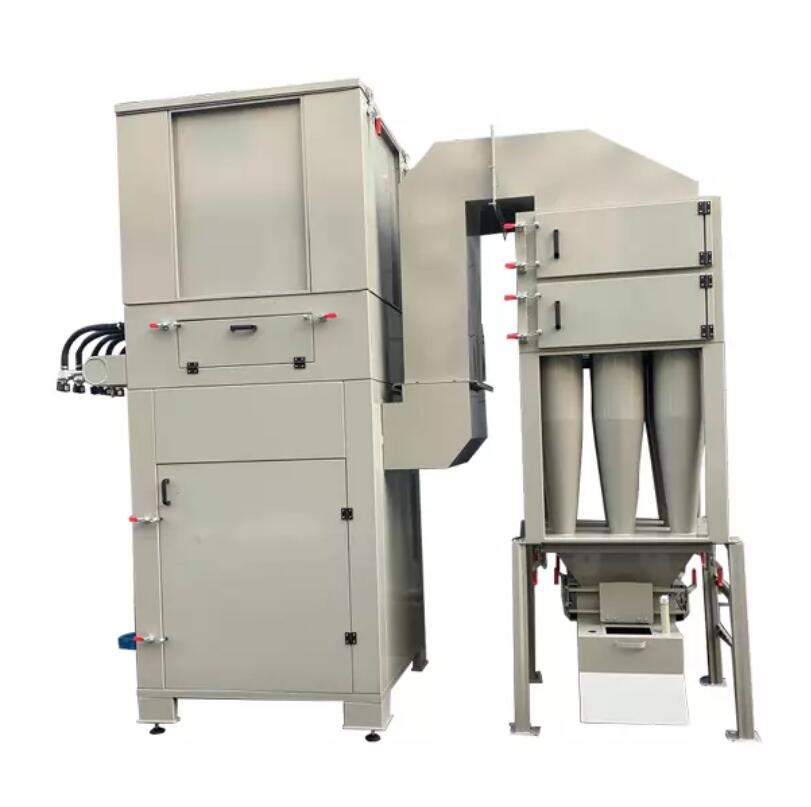

Powder Coating Booth Dust Collector

Powder Coating Booth Dust Collector is a crucial part of powder coating booth. This dust collector includes cyclone separator and filter secondary recovery unit. Powerful cyclones ensure high recycling rate of oversprayed powder, the rest of unrecyclable powder will be absorbed by high-precision filters to prevent powder particles from polluting the environment.


Features and Benefits of Powder Coating Booth Dust Collector

multi cyclone powder coating dust collector

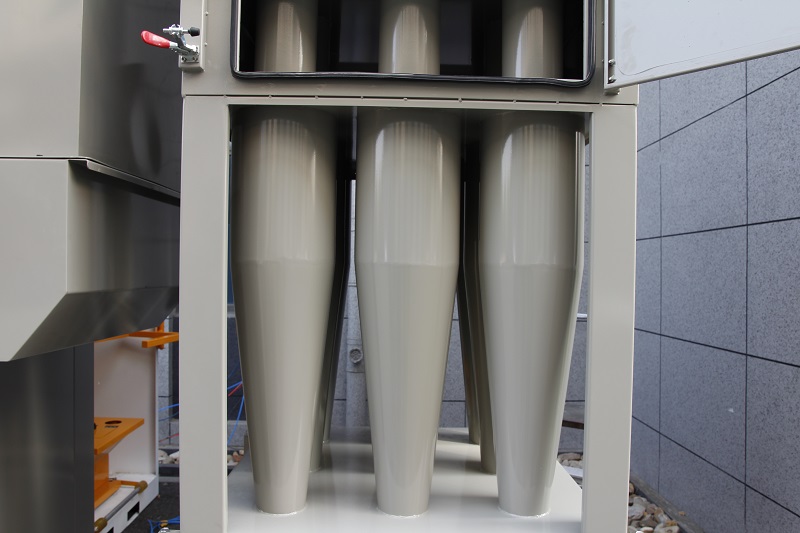

Multi Cyclone

High-efficiency multi cyclones save powders cost, for multi-colored powder coating production, cyclones and filters are an ideal combination for fast color change and dustless working environment, and the recycling rate of powder up to 98%.

powder collector

Powder Collector

Powder recovered by cyclones is collected in the powder collector, and then transfered automatcially through a powder supply equipment, in order to mix with fresh powders and feed back to the system. This powder collector also supports to be operated manually.

cartridge filters

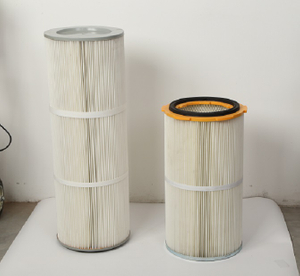

Rotary Wing Type Cartridge Filters

Nine high-precision filters are able to absorb super fine powder, built with rotary wing to help cleaning the powder accumulation more thoroughly.

For single-colored powder coating production, only filters recovery system is enough to accomplish collect and recycle oversprayed powder.

pulse soleniod valves

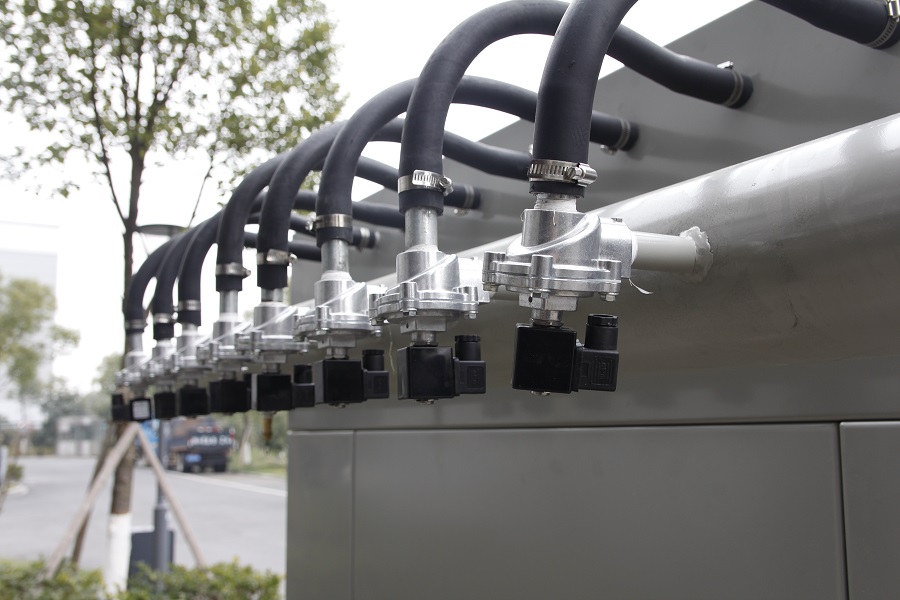

Pulse-jet Valve Device

The pulse-jet valve device is able to clean filters automatically at intervals, shaking off powders absorbed in filters to prevent powders accumulation to impact the high-efficiency separation rate.

Specifications of Powder Coating Booth Dust Collector

Power Supply Electric
Nominal Power 7.5 kW
Voltage and Frequency Customized as local
Pulse Soleniod
Filters Polyester
Filters Count 9 pcs
Filters Hang Type Rotary wing type
Filter Cleaning System Pneumatic
Cyclone 9pcs, efficiently automatic separation
Powder Collector 1 set

12 months
