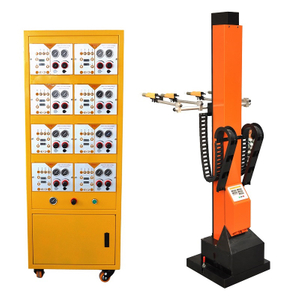

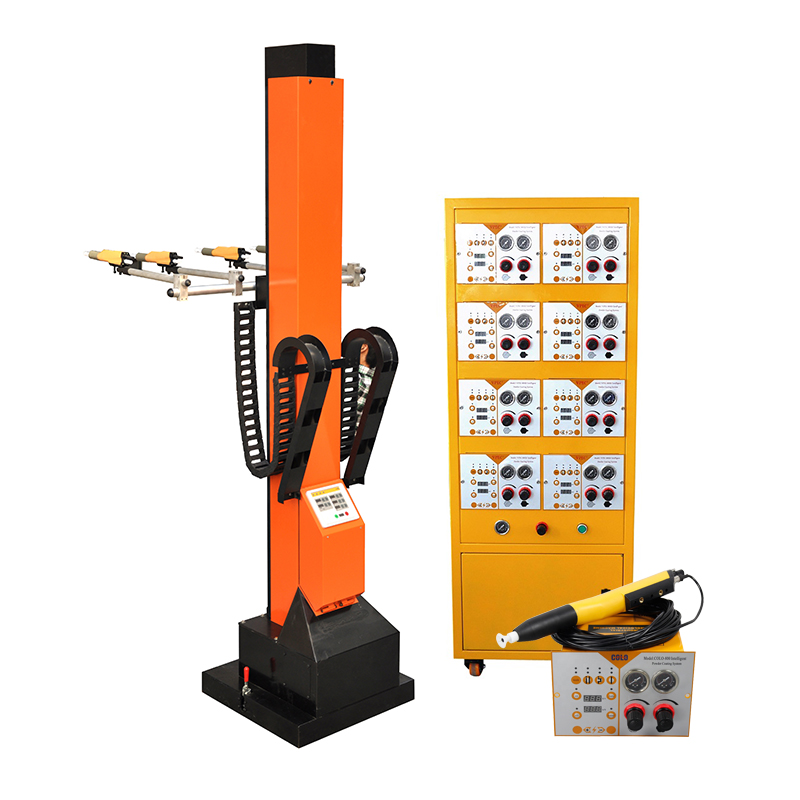

Automatic powder coating spraying eqipment including auto spray guns and reciprocators, especially designed to meet the requirements of continuous production in powder coating, where reliability in automated operation, easy to control operation and security are the most projecting advantages for the users.
Advanced model, digital valve control technology, precise regulate of powder output for uniform coating, achieves highest quality finish comparing with traditional models.
Individual adjustment of voltage, current on the digital controller in accurate values, meets the demands of coating any products, even most complex shapes with dead corners.
The self-developed COLO-08 auto spray gun with built-in 100kv cascade allows powerful and longlasting jobs, high transfer effciency and a grea saving powders.

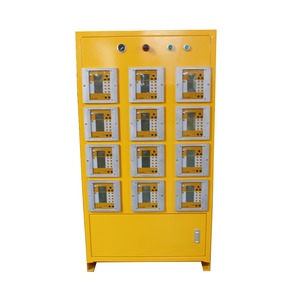

Combined with booth and conveyor system, the number of installed control units as requirements. Central control for the all the gun reliability, controllability.
Power range | 100-240V |
Frequency | 50/60HZ |
Temperature range in use | -10 +50 |
Gun weight: | 500g |
Rated output voltage | 24VDC |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Maximum compressed-air consumption | 13.2 m3/h |
Extremely smooth & accurate running through high-precision and wear resisting belt transmission.
User-friendly PLC controller with touch screen to easilyset speed and stroke length.
20 Pre-programmable presets for automatic selection of moving stroke and speed.
Move to a new level of powder coating efficiency, reduce powder consumption.
Reciprocating by frequency adjustable motor for high quality powder coating.
| Power supply | AC 220V/110V 50Hz-60Hz |
| Power motor | 0.75KW |
| Speed | 0-50m/min |
| Acceleration | 1m/Second |
| Environmental | 0-50 degree |
| Star signal model | PLC with touch screen |
| Max load capacity | 25kgs |
| Motion range | 0.3-2.5m can be setting |
| Point delay time | 0-5 sec (optional) |
| Motor | Frequency adjustable |
| Stroke | 1.5m/2m/2.5m |
Fix the the automatic spray gun on the stand of automatic powder spraying reciprocator, and by setting reasonable vertical speed and route to make automatic powder spraying reciprocating motion at the predetermined range and speed. In common double-station automatic spraying line, you need to set up 2 sets automatical reciprocater staggered relative work, to complete the automatic spraying of front and back side of workpiece,
This automatic powder coating equipment package will have outstanding effect in aluminum profile, furniture, iron door, window frame, pallet rack or other metal surface finishng line.
